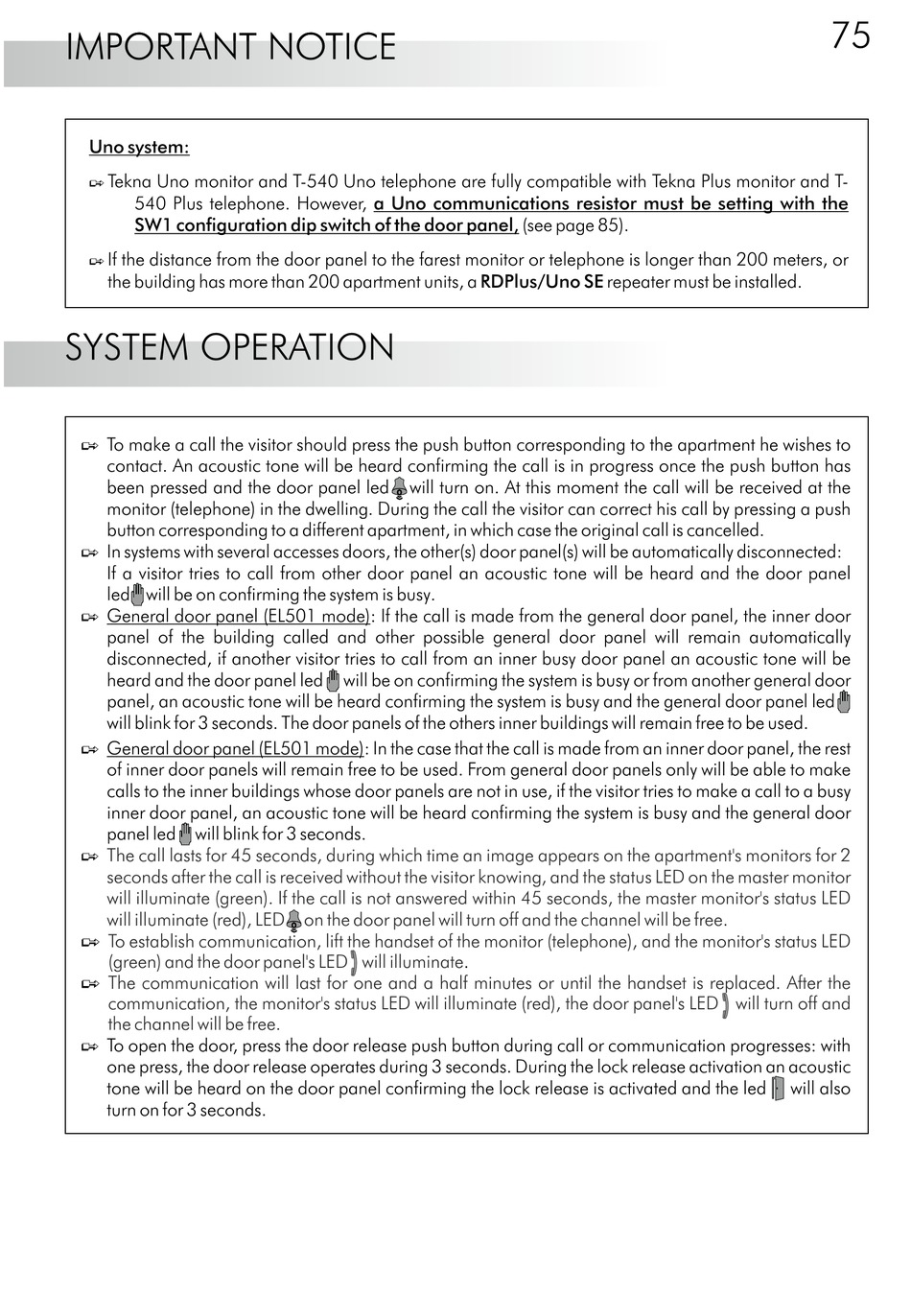

IMPORTANT NOTICE

IMPORTANT NOTICE
Uno system:
Tekna Uno monitor
O
540 Plus telephone. However, a Uno communications resistor must be setting with the
SW1 configuration dip switch of the door panel, see
If the distance from the door panel to the farest monitor or telephone is longer than 200 meters, or
O
the building has more than 200 apartment units, a

SYSTEM OPERATION

O To make a call the visitor should press the push button corresponding to the apartment he wishes to
contact. An acoustic tone will be heard confirming the call is in progress once the push button has
been pressed and the door panel led
monitor (telephone) in the dwelling. During the call the visitor can correct his call by pressing a push
button corresponding to a different apartment, in which case the original call is cancelled.
O In systems with several accesses doors, the other(s) door panel(s) will be automatically disconnected:
If a visitor tries to call from other door panel an acoustic tone will be heard and the door panel
led will be on confirming the system is busy
O General door panel (EL501 mode): If the call is made from the general door panel, the inner door
panel of the building called and other possible general door panel will remain automatically
disconnected, if another visitor tries to call from an inner busy door panel an acoustic tone will be
heard and the door panel led
panel, an acoustic tone will be
will blink for 3 seconds. The door panels of the others inner buildings will remain free to be used.
O General door panel (EL501 mode): In the case that the call is made from an inner door panel, the rest
of inner door panels will remain free to be used. From general door panels only will be able to make
calls to the inner buildings whose door panels are not in use, if the visitor tries to make a call to a busy
inner door panel, an acoustic tone will be heard confirming the system is busy and the general door
panel led will blink for 3 seconds
The call lasts for 45 seconds, during which time an image appears on the apartment's monitors for 2
O
seconds after the call is received without the visitor knowing, and the status LED on the master monitor
will illuminate (green). If the call is not answered within 45 seconds, the master monitor's status LED
will illuminate (red), LED on the door panel will turn off and the channel will be free.
To establish communication, lift the handset of the monitor (telephone), and the monitor's status LED
O
(green) and the door panel's LED will
The communication will last for one and a half minutes or until the handset is replaced. After the
O
communication, the monitor's status LED will illuminate (red), the door panel's LED will turn off and
the channel will be free.
O To open the door, press the door release push button during call or communication progresses: with
one press, the door release operates during 3 seconds. During the lock release activation an acoustic
tone will be heard on the door panel confirming the lock release is activated and the led
turn on for 3 seconds.
and T-540 Uno telephone are fully compatible with Tekna Plus monitor
will turn on
will be on confirming the system is busy or from another general door
heard confirming the system is busy and
.
illuminate.
( page 85 .
RDPlus/Uno SE
. At this moment the call will be received at the
.
)
repeater must be installed.
the general door panel led
75
and T-
will also
