Power Supply Installation; Lock Release Installation - golmar Plus Nexa Instruction Manual

92
I
nstalling the FA-PLUS and FA-PLUS/C power supplies.
Install the power supply in a dry and protected place without risk of drip or water projections.
To avoid an electrical shock, neither remove the primary protection cover nor handle the connected
wire in the terminals.
The installation and handling of these equipments must be performed by authorised personnel and
without the power connected.
To avoid damage, the power supply has to be firmly fixed.
3,5 x 25
DIN-7971
The power supply can be installed on a DIN 46277
guide simply pressing it.
To disassemble the power supply from the DIN guide,
use a plain screwdriver to lever the flange as shown
on the picture.
The FA-Plus/C model uses 6 units over DIN guide and
10 units the FA-Plus model.
IMPORTANT: the maximum number of units that can be connected to a FA-Plus/C power supply is
10, and 50 units in case of a FA-Plus model. Link power supplies to connect more
units than the specified as it's shown on page 105.
Replace the protection cover once the input terminals have been wired.
L
ock release installation.
If the lock release will be installed in a metal door, use a Ø3,5mm.
drill and tap the hole
IMPORTANT:
- The lock relese must be of (Golmar)
( See page 1 05 (a.c lock release) and pages
- A varistor is supplied with the sound module. In case to connect an a.c. lock release, place the
varistor on the lock release terminals directly to ensure a proper system operation.

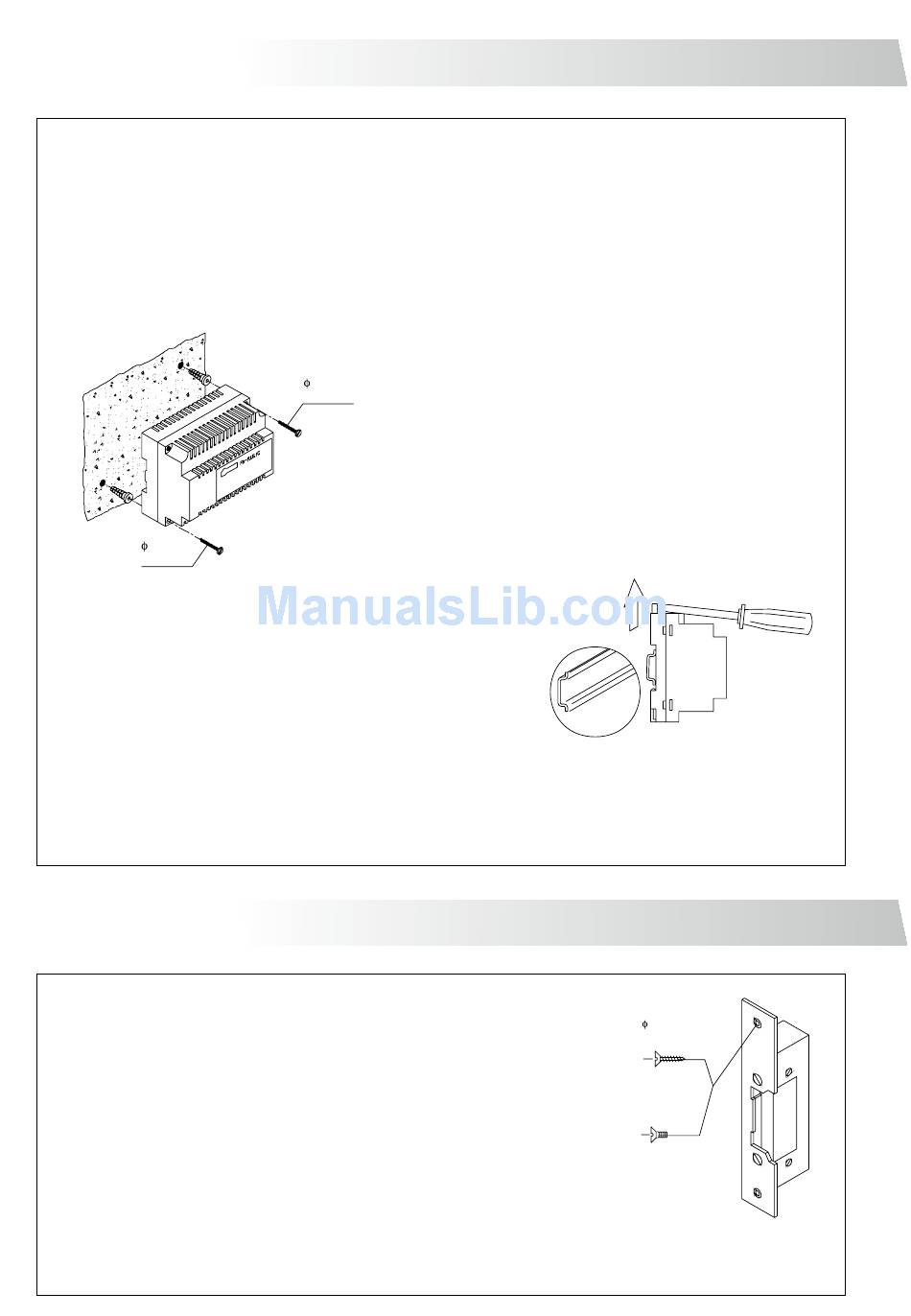

POWER SUPPLY INSTALLATION

It's recommended to protect the power supply by using a
3,5 x 25
DIN-7971
thermo-magnetic circuit breaker. Use a ground
connection with FA-Plus power supply.
To install the power supply directly on the wall, drill two holes of
Ø6 mm. and insert the wallplugs. Fix the transformer with the
specified screws.

LOCK RELEASE INSTALLATION

. In case of wood door, use a
12V d.c or a.c
93 to 1
DIN 46277
Ø3mm. drill .
.
04 (d.c lock release ).
3,5 x 25
DIN-7972
M 4 x 8
DIN-963
