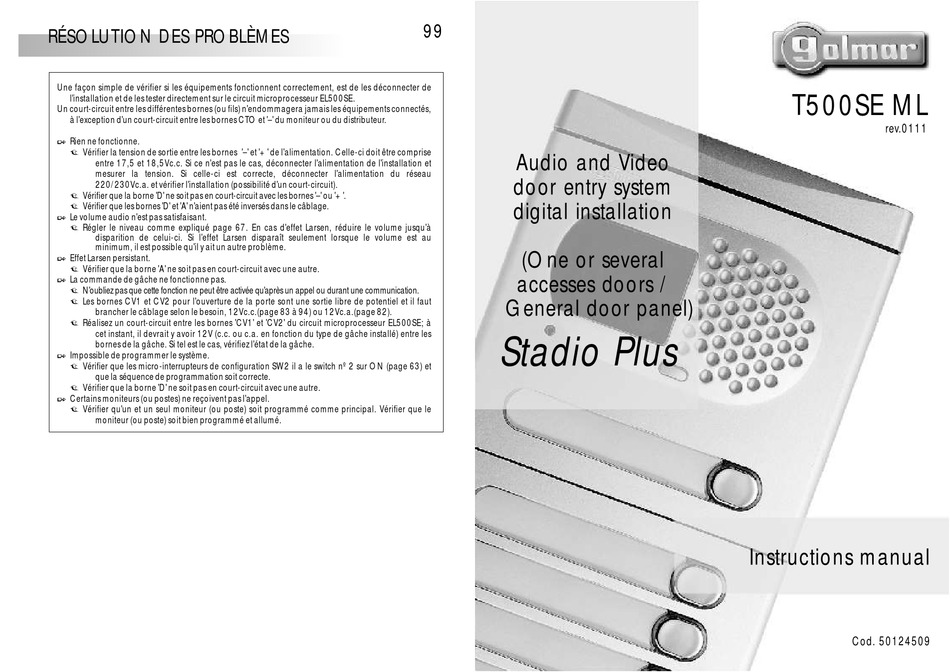

RÉSOLUTION DES PROBLÈMES
Une façon simple de vérifier si les équipements fonctionnent correctement, est de les déconnecter de
l'installation et de les tester directement sur le circuit microprocesseur EL500SE.
Un court-circuit entre les différentes bornes (ou fils) n'endommagera jamais les équipements connectés,
à l'exception d'un court-circuit entre les bornes CTO et '–' du moniteur ou du distributeur.
O Rien ne fonctionne.
w Vérifier la tension de sortie entre les bornes '–' et '+' de l'alimentation. Celle-ci doit être comprise
entre 17,5 et 18,5Vc.c. Si ce n'est pas le cas, déconnecter l'alimentation de l'installation et
mesurer la tension. Si celle-ci est correcte, déconnecter l'alimentation du réseau
220/230Vc.a. et vérifier l'installation (possibilité d'un court-circuit).
w Vérifier que la borne 'D' ne soit pas en court-circuit avec les bornes '–' ou '+'.
w Vérifier que les bornes 'D' et 'A' n'aient pas été inversés dans le câblage.
O Le volume audio n'est pas satisfaisant.
w Régler le niveau comme expliqué page 67. En cas d'effet Larsen, réduire le volume jusqu'à
disparition de celui-ci. Si l'effet Larsen disparaît seulement lorsque le volume est au
minimum, il est possible qu'il y ait un autre problème.
O Effet Larsen persistant.
w Vérifier que la borne 'A' ne soit pas en court-circuit avec une autre.
O La commande de gâche ne fonctionne pas.
w N' o ubliez pas que cette fonction ne peut être activée qu' a près un appel ou durant une communication.
w Les bornes CV1 et CV2 pour l'ouverture de la porte sont une sortie libre de potentiel et il faut
brancher le câblage selon le besoin, 12Vc.c.(page 83 à 94) ou 12Vc.a.(page 82).
w
Réalisez un court-circuit entre les bornes 'CV1' et 'CV2' du circuit microprocesseur EL500SE; à
cet instant, il devrait y avoir 12V (c.c. ou c.a. en fonction du type de gâche installé) entre les
bornes de la gâche. Si tel est le cas, vérifiez l'état de la gâche.
O Impossible de programmer le système.
w Vérifier que
les micro-interrupteurs de configuration SW2
que la séquence de programmation soit correcte.
w Vérifier que la borne 'D' ne soit pas en court-circuit avec une autre.
O Certains moniteurs (ou postes) ne reçoivent pas l'appel.
w Vérifier qu'un et un seul moniteur (ou poste) soit programmé comme principal. Vérifier que le
moniteur (ou poste) soit bien programmé et allumé.
99
il a
le switch nº 2 sur ON
(page 63) et
Audio and Video
door entry system
digital installation
(One or several
accesses doors /
General door panel)
Stadio Plus
T500SE ML
rev.0111
Instructions manual
Cod. 50124509
Advertisement
Table of Contents
Related Manuals for golmar Stadio Plus T500SE ML
Summary of Contents for golmar Stadio Plus T500SE ML
- Page 1 RÉSOLUTION DES PROBLÈMES Une façon simple de vérifier si les équipements fonctionnent correctement, est de les déconnecter de l'installation et de les tester directement sur le circuit microprocesseur EL500SE. T500SE ML Un court-circuit entre les différentes bornes (ou fils) n'endommagera jamais les équipements connectés, à...
-
Page 2: Table Of Contents
Always use RG-59 B/U MIL C-17 or RG-11 coaxial cables, (see page 134). Never use coaxial wInput for external door release push button. antenna cable. In installations no longers than 100m., Golmar RAP-5130 cable can be used. Continue... -
Page 3: System Operation
SYSTEM CHARACTERISTICS DOOR PANEL DESCRIPTION Coming from previous page oor panel description. wAllows one of these functions at once, Configuration with dip switch Sw1 (see page 129): w"Autoswitch-on" function. wOutput for auxiliary relay activation (18Vdc/0,5 A maximum). wCall to a slave porter's exchange. wIntercommunication function with other monitor or telephone of the same apartment. - Page 4 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION mbedding box positioning. lace the embedding box. Pass the wiring through the hole made in the bottom part of the embedding box. Level and flush the embedding box. Once the embedding box is placed, remove the protective labels from the attaching door panel holes.
- Page 5 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION ssembly the sound module. old the door panel on the embedding box. Select a direction to open the door panel; this selection should ease the door panel wiring. The opening direction will be settled through the hinges position, that must be passed through the header clips as shown.
- Page 6 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION ush buttons wiring. ush buttons wiring. Plug the push buttons connection cable to the CN6 connector of the EL500SE microprocessor circuit, this cable has 10 conductors (P1 to P8, B and CP) for the connection of push buttons or EL516SE.
- Page 7 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION ush buttons limit. escription of the SW1 configuration dip-switch of the EL500SE microprocessor module. The maximum number of push buttons to be connected depends on the number of installed EL516SE encoders, as it is shown on the following chart: The SW1 configuration dip-switch is located at the right side of the circuit.
- Page 8 DOOR PANEL INSTALLATION GENERAL DOOR PANEL INSTALLATION eneral door panel (programming modes). escription of the SW2 configuration dip-switch of the EL500SE microprocessor module. Configure the microprocessor module of the general door panel in EL501 mode, (see page 112). The SW2 configuration dip-switch is located in the center The general door panel permits the following programming modes: of the circuit.
- Page 9 GENERAL DOOR PANEL INSTALLATION GENERAL DOOR PANEL INSTALLATION Programming the push button ( with a backbone code rogramación de los monitores y teléfonos desde una Placa General. This programming mode allows to assign a backbone code to push button of the general door panel. Programación del monitor/teléfono: Locate the SW2 configuration dip switch of the general door This programming mode allows to assign to a monitor / telephone a push button of the general door...
-
Page 10: Lamps Wiring
DOOR PANEL INSTALLATION POWER SUPPLY INSTALLATION amps wiring. nstalling the FA-PLUS and FA-PLUS/C power supplies. Once the nameplate labels are placed, wire the lamps from different The power supply must be installed in a dry and f3,5 x 25 modules and connect them to terminals L1 and L2 of the sound protected place. -
Page 11: Function Push Buttons
MONITOR DESCRIPTION MONITOR DESCRIPTION escription of the Platea Plus monitor. unction push buttons. On-Off push button. After any monitor reset and during the next 45 seconds, all the monitor functions will be disabled, with the exception of call reception. PLATEA-PLUS CODE 1 1 7 5 8 8 0 2 10060045... -
Page 12: El562 Module
MONITOR ADJUSTMENTS MONITOR CONNECTOR DESCRIPTION L562 module for video installations escription of the RCPL-Plus with twisted pair cable. monitor connector. Locate the CN4 connector, that's placed in the monitor base. Remove the existing jumper and plug the EL562 module. NOTE: on this type of installations the EL500SE microprocessed circuit must be setting with SW1-3 to ON (page 112). -
Page 13: Monitor Installation
MONITOR INSTALLATION MONITORS PROGRAMMING ix the monitor connector to the wall. rogramming the Platea Plus monitors. Set to ON the switch number 2 of the SW2 configuration dip switch, that's Avoid to place the monitor near to heating sources, in dusty accessible in the EL500SE module by opening the terminal connector locations or smoky environments. - Page 14 TELEPHONE DESCRIPTION TELEPHONE DESCRIPTION escription of the T-940 Plus telephone. erminal connector description. – positive, ground. A , D : audio, digital communication. Telephone handset. INT : intercom. Speaker grille. SA : auxiliary calling device output. Microphone hole. HZ- : door bell push button input.
-
Page 15: Programming
TELEPHONES PROGRAMMING TELEPHONE DESCRIPTION rogramming the T-940 Plus telephones. escription of the T-740 Plus telephone Set to ON the switch number 2 of the SW2 configuration dip switch, that's accessible in the EL500SE module by opening the terminal connector protection cover. The door panel will reproduce a sound to advise that the system has entered into programming mode. -
Page 16: Function Push Buttons
TELEPHONE DESCRIPTION TELEPHONE INSTALLATION unction push buttons ix the telephone to the wall If the handset is on the craddle sends a panic call to the porter's exchanges that have enabled the reception of this type of call. If not, allows to call to the master porter's exchange. -
Page 17: Programming
TELEPHONES PROGRAMMING INSTALLATION DIAGRAMS rogramación de los teléfonos T-740 Plus. onnexion of an a.c. lock release. If an alternating current lock release has been installed, use a TF-104 transformer or an EL 502 Set to ON the switch number 2 of the SW2 configuration dip switch, that's dc/ac converter and connect it to the lock release as it is shown on the respective diagram. - Page 18 INSTALLATION DIAGRAMS ONE OR SEVERAL ACCESSES DOORS Take off JP1 jumper of all the distributors ideo installation with coaxial cable. except in the last one. D4L-PLUS The installation diagram shows the connection of a video system with one or several door panels for the same building.
- Page 19 INSTALLATION DIAGRAMS ONE OR SEVERAL ACCESSES DOORS EL562 EL562 ideo installation without coaxial cable. * Take off JP1 jumper of all the distributors except in the last one. The installation diagram shows the connection of a video system with one or several door panels for the same building.
- Page 20 INSTALLATION DIAGRAMS ONE OR SEVERAL ACCESSES DOORS T-940 Plus T-740 Plus udio installation. The installation diagram shows the connection of an audio system with one or several door panels for the same building. If the system has one access door panel only, override the wiring to the second door panel. If the system has more than one access door panel, wire the second panel as shown on the diagram.
- Page 21 INSTALLATION DIAGRAMS GENERAL DOOR PANEL BACKBONE 1 Inner door panel BACKBONE 2 Inner door panel To monitors To monitors EL500 mode EL500 mode FA-Plus o FA-Plus/C FA-Plus o FA-Plus/C AP - - + AP - - + Malla Malla out+ out- out+ out-...
- Page 22 INSTALLATION DIAGRAMS GENERAL DOOR PANEL BACKBONE 119 Inner door panel BACKBONE 120 Inner door panel To monitors To monitors EL500 mode EL500 mode FA-Plus o FA-Plus/C FA-Plus o FA-Plus/C AP - - + AP - - + Malla Malla out+ out- out+ out-...
- Page 23 INSTALLATION DIAGRAMS GENERAL DOOR PANEL To telephones To telephones BACKBONE 1 Inner door panel BACKBONE 120 Inner door panel EL500 mode EL500 mode FA-Plus o FA-Plus/C FA-Plus o FA-Plus/C AP - - + AP - - + Malla Malla out+ out- out+ out-...
- Page 24 OPTIONAL CONNECTIONS OPTIONAL CONNECTIONS xternal lock release activation. ctivation of a second camera. Door panel The lock release can be activated at any moment by using an external push The use of a SAR-12/24 relay will be required to activate a second camera and an internal button, that must be connected between 'AP' and ' ' terminals of the door –...
- Page 25 OPTIONAL CONNECTIONS OPTIONAL CONNECTIONS ntercom function. uxiliary devices activation with T-740 Plus telephone. First t T-740 Plus telephone must be configured with SW1 dip switch in "PA" output mode Platea Plus monitor and (*) T-740Plus and T-940 Plus telephones have intercom facility between two function (see page 129).
-
Page 26: Programming
TROUBLESHOOTING HINTS NOTAS/NOTES An easy way to check that the system is working properly is to disconnect the wiring from the door panel and to check the monitor directly connected to the EL500SE circuit. No shortcircuit will damage the connected units, with the exception of a shortcircuit between CTO and ' ' –...
