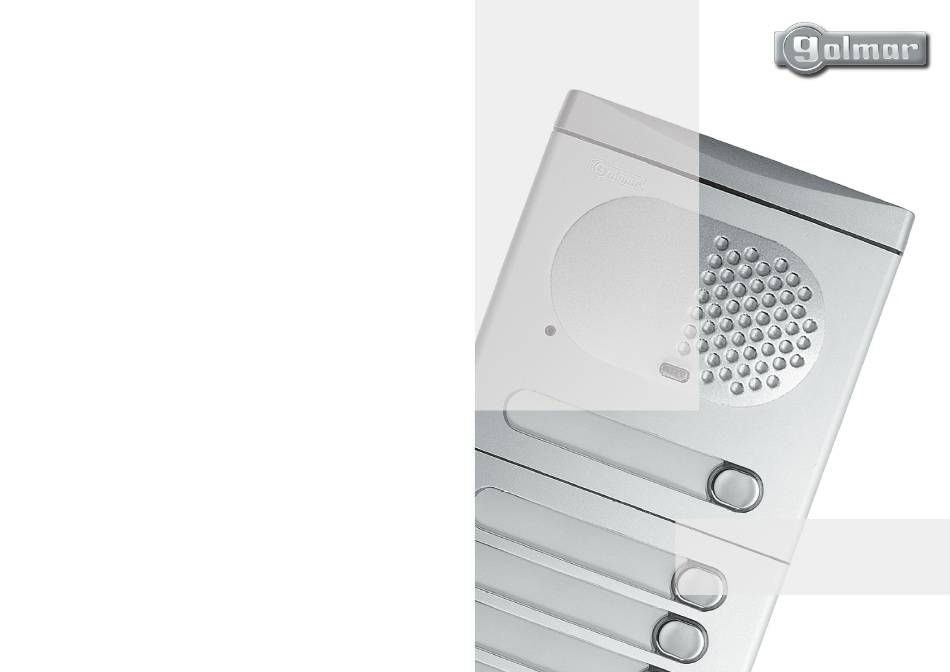

- Page 1 T4000ML rev.0104 Audio door entry system Kits 4+'n' wires installation Stadio Plus Instructions manual Golmar se réserve le droit de toute modification sans préavis.
- Page 2 POWER SUPPLY INSTALLATION First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. nstalling the TF-104 The commitment to reach the satisfaction of our customers is stated through the ISO- transformer.
- Page 3 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION reparing the lace the nameplate labels. embedding box. Break the bottom flange to pass the cables through. Open the label holder. Pass the wiring through the hole made in the bottom part of the embedding box. Place the label and Level and flush the embedding box.
- Page 4 TELEPHONE INSTALLATION INSTALLATION DIAGRAM escription of the T-900 ne access door. telephone. Telephone handset. Speaker grille. Microphone hole. Subjection hole. Telephone cord connectors. Door release push button. Hook switch. ind. 2 Stadio Plus TF-104 ind. 1 To open the telephone insert L1 L2 a plain screwdriver into the slots and rotate it as shown.
