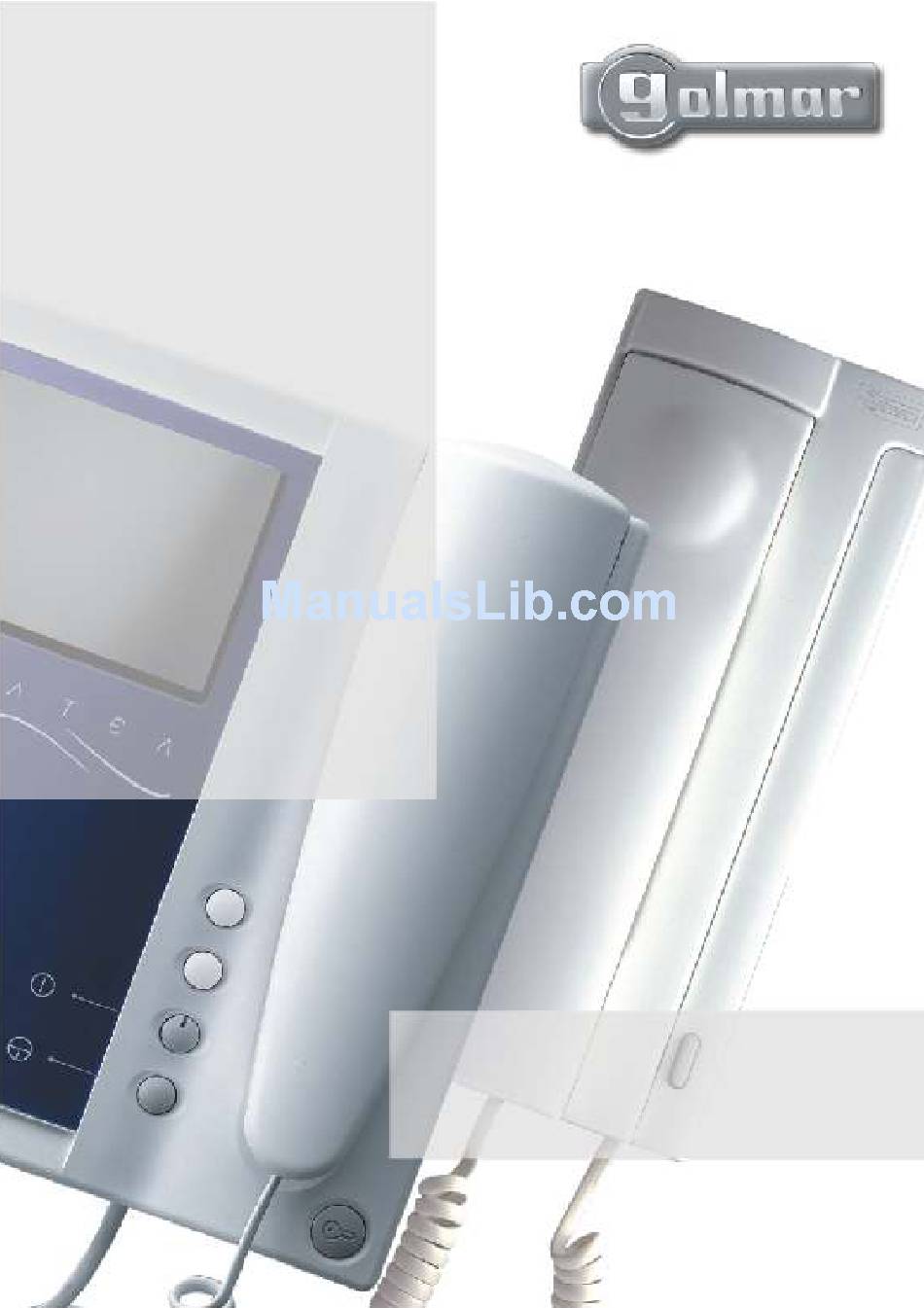

- Page 1 T1EN rev.0104 Audio and Video door entry system digital installation Platea Uno T-940 Uno installation annex...
-
Page 2: Monitor Description
IMPORTANT NOTICE MONITOR DESCRIPTION Platea Uno monitor and T-940 Uno telephone are described on this annex, escription of the Platea Uno monitor. as well their programming procedures. System assembly and wiring is detailed on the instructions manual that's enclosed with the door panel. - Page 3 MONITOR DESCRIPTION MONITOR CONNECTOR DESCRIPTION unction push buttons. escription of the RCPL-Uno monitor connector. If the handset is on the craddle allows to see the picture from the master door panel. If not, allows to establish audio and video communication with the door panel that has been configurated with the autoswitch-on function.
- Page 4 MONITORS PROGRAMMING TELEPHONE DESCRIPTION rogramming the monitors. escription of the T-940 Uno telephone. Set to ON the switch number 2 of the configuration dip switch, that's accessible by opening the terminal connector protection cover (see door panel instructions manual). Telephone handset. The door panel will reproduce a sound to advise that the system Speaker grille.
- Page 5 TELEPHONES PROGRAMMING rogramming the telephones. Set to ON the switch number 2 of the configuration dip switch, that's accessible by opening the terminal connector protection cover (see door panel instructions manual). The door panel will reproduce a sound to advise that the system has entered into programming mode.
