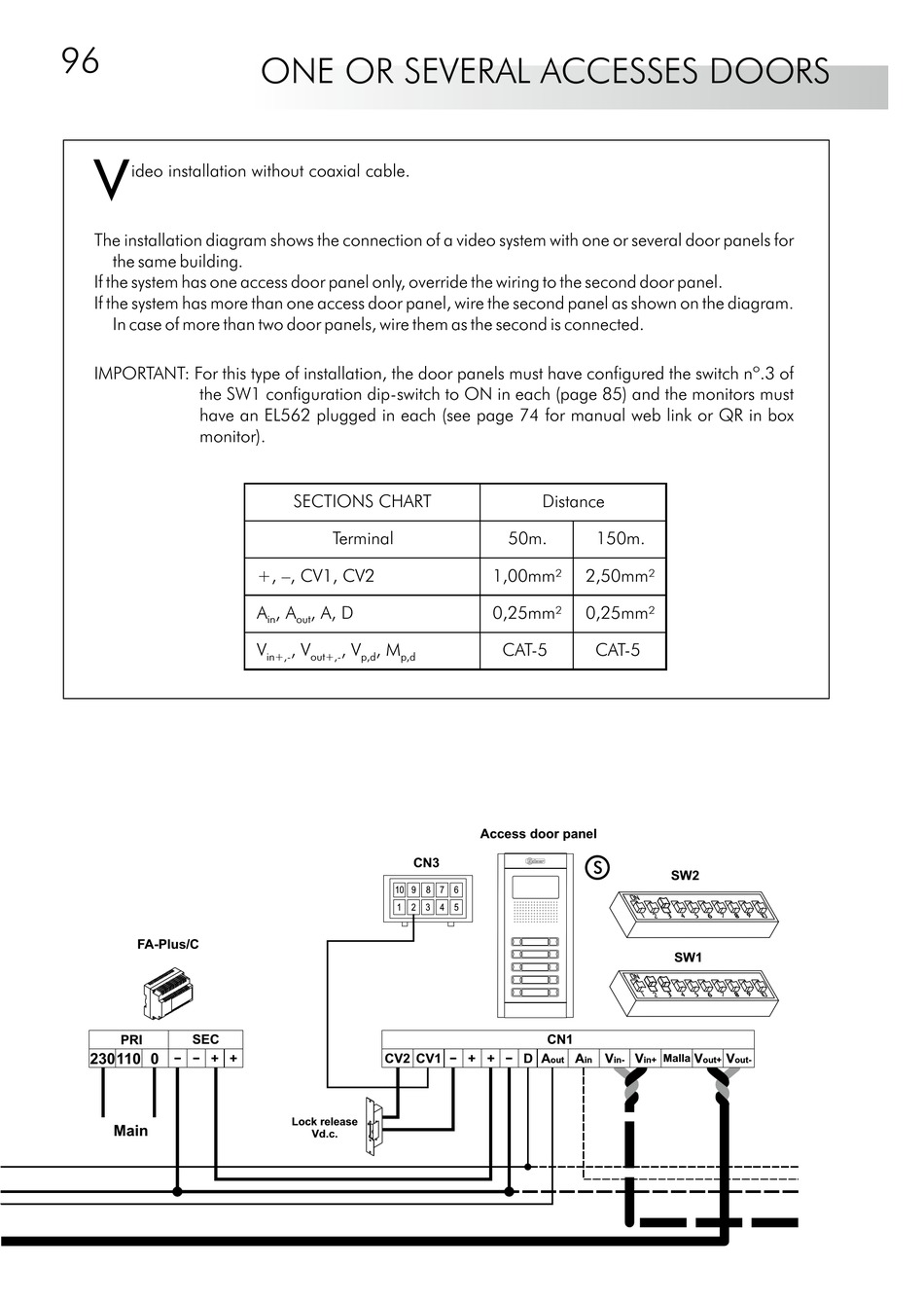

The installation diagram shows the connection of a video system with one or several door panels for
the same building.
If the system has one access door panel only, override the wiring to the second door panel.
If the system has more than one access door panel, wire the second panel as shown on the diagram.
In case of more than two door panels, wire them as the second is connected.
IMPORTANT: For this type of installation, the door panels must have configured t he switch nº.3 of
the SW1 configuration dip-switch to ON
have an EL562 plugged in each (see page 74 for manual web link or QR in box
monitor).
FA-Plus/C
PRI SEC
230110 0 - - + +
Main
ONE OR SEVERAL ACCESSES DOORS
SECTIONS CHART
Terminal
+, , CV1, CV2 –
A , A , A, D
in out
V , V , V , M
in+,- out+,- p,d p,d
CN3
10 9 8
1 3
2
CV2 CV1
Lock release
Vd.c.
in each (page 85)
Distance
50m. 150m.
1,00mm² 2,50mm²
0,25mm² 0,25mm²
CAT-5 CAT-5
Access door panel
S
7 6
4
5
CN1
- + + - D A A V
out in in-
and the monitors must
SW2
SW1
V V V
Malla
in+ out+ out-
