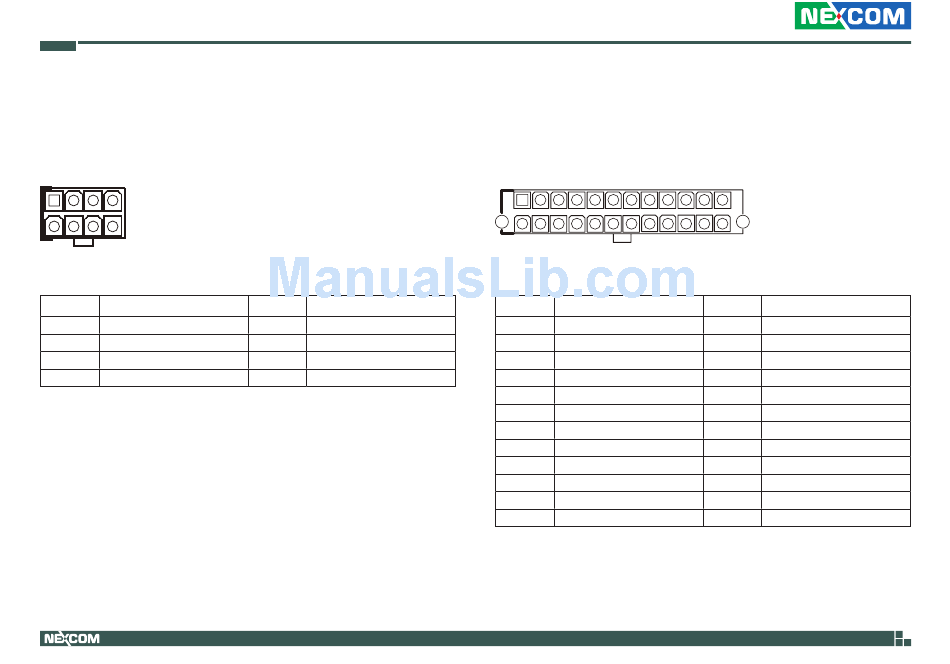

Chapter 2: Jumpers and Connectors

ATX Power Connector

Connector type: 2x4 8-pin boxed header
Connector location: CON1
1 4
5 8
Pin Definition
1 GND
3 GND
5 VCC12
7 VCC12
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 GND
6 VCC12
8 VCC12
ATX Power Connector
Connector type: 2x12 24-pin boxed header
Connector location: CON2
1
13
Pin Definition
1 VCC3
3 GND
5 GND
7 GND
9 5VSB
11 VCC12
13 VCC3
15 GND
17 GND
19 GND
21 VCC5
23 VCC5
17
12
24
Pin Definition
2 VCC3
4 VCC5
6 VCC5
8 POWEROK
10 VCC12
12 VCC3
14 NC
16 PS-ON
18 GND
20 NC
22 VCC5
24 GND
