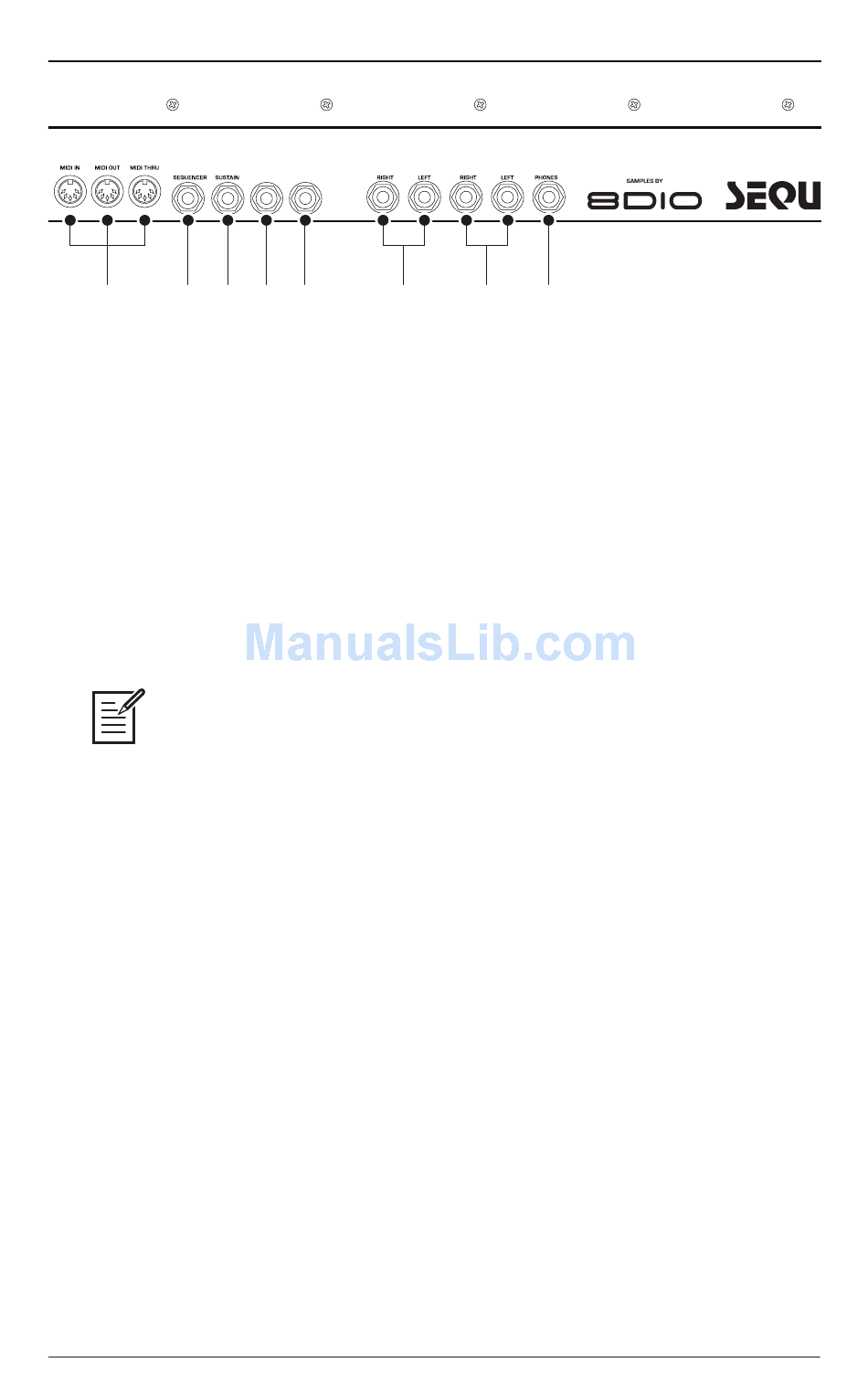

Prophet X Rear Panel
Standard 5-pin MIDI DIN connectors.
4 . MIDI In, Out, and Thru—
Accepts a momentary, normally open or normally closed
5 . Sequencer—
footswitch to turn the sequencer or arpeggiator on and off. Alternatively,
an audio signal connected to this jack can be used to either control
sequencer/arpeggiator playback, or to gate the filter and amplifier enve-
lopes while notes are held. See Seq Pedal Mode on page 127 for more
information about choosing the appropriate mode for these behaviors.
Audio signals used to drive the arpeggiator/sequencer should not exceed 5
volts peak-to-peak.
Accepts a momentary, normally open or normally closed
6 . Sustain—
footswitch to control sustain.
Accepts a standard expression pedal that has a variable
7 . Volume—
resistor on a TRS (tip-ring-sleeve) ¼ inch phone plug. Once connected,
you can use the modulation matrix to route the pedal to control a variety
of things such as volume or filter cutoff frequency to add expressiveness
to live performance.
Accepts a standard expression pedal that has a variable
8 . Pedal/CV—
resistor on a TRS (tip-ring-sleeve) ¼ inch phone plug. Once connected,
you can use the modulation matrix to route the pedal to control a variety
of things such as volume or filter cutoff frequency to add expressiveness
to live performance.
Prophet X User's Guide Rear Panel Connections 115
