Chapter 4: Connections/Setups

This chapter explains the various connectors and connections that you
can make to your Prophet X. It also covers the various parameters in the
Global menu, how to save and load programs, how to update your oper-
ating system if necessary, and how to import add-on sample libraries.

Rear Panel Connections

The rear panel of the Prophet X has connectors for power, USB, MIDI,
audio, and pedals.
PROPHET
SAMPLE IMPORT
1 2 3 4

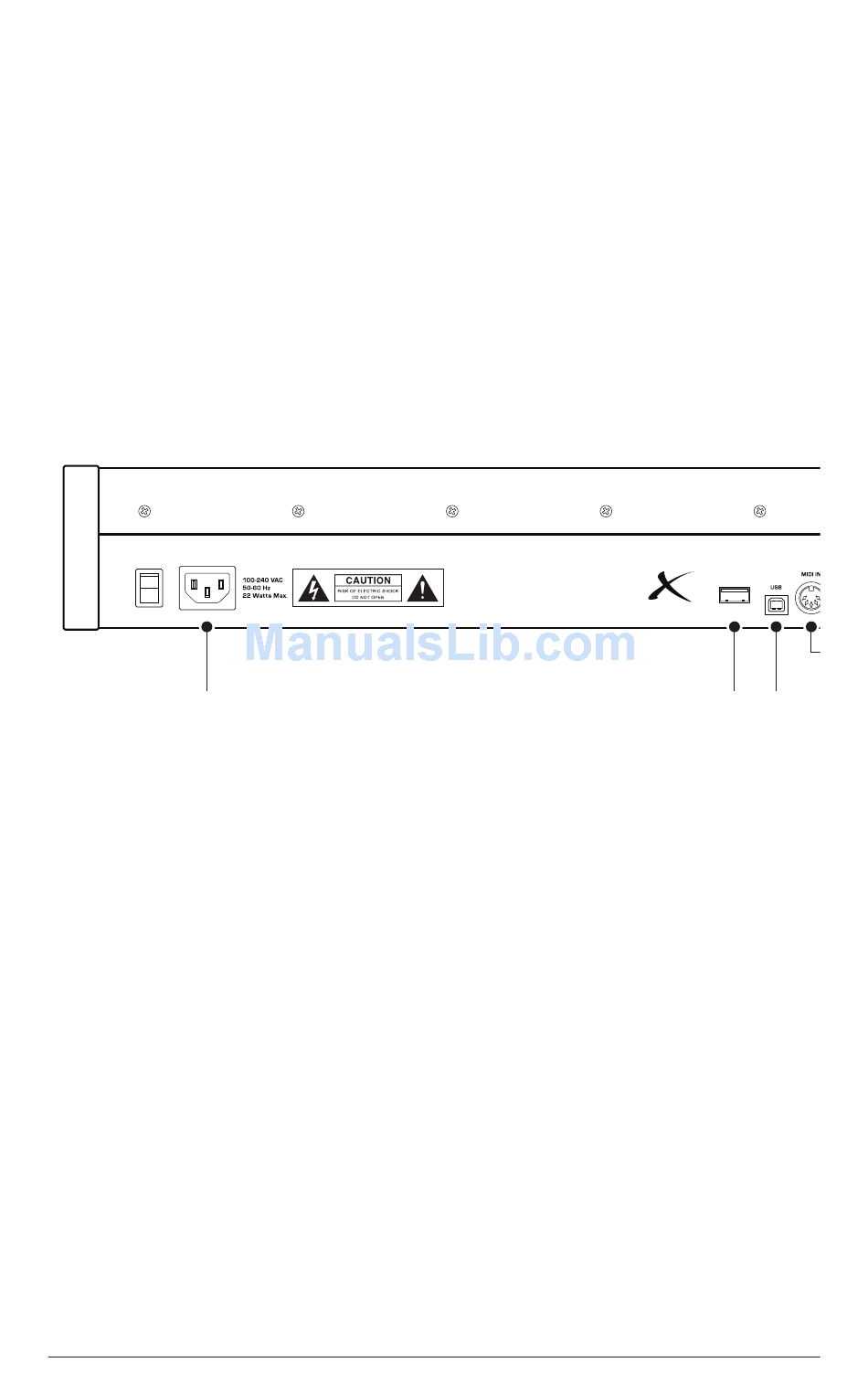

Prophet X Rear Panel
Accepts a standard, grounded IEC power
1 . AC Power Connector—
cord. Operates over a range of 100 to 240 volts and 50 to 60 Hz.
Accepts a standard, USB 3.0 flash drive (USB stick)
2 . Sample Import—
for importing samples into the Prophet X. The Prophet X has an inter-
nal memory capacity of 50 GB for additional sound libraries and user
samples. See "Formatting a USB Flash Drive" on page 121 to learn how
to import sample libraries.
For bidirectional MIDI communication with a computer. The
3 . USB—
Prophet X is a Class Compliant USB device and does not require addi-
tional drivers when used with Mac OS or Windows. See Using USB on
page 116 for more information.
