DIP Switches

Service Link

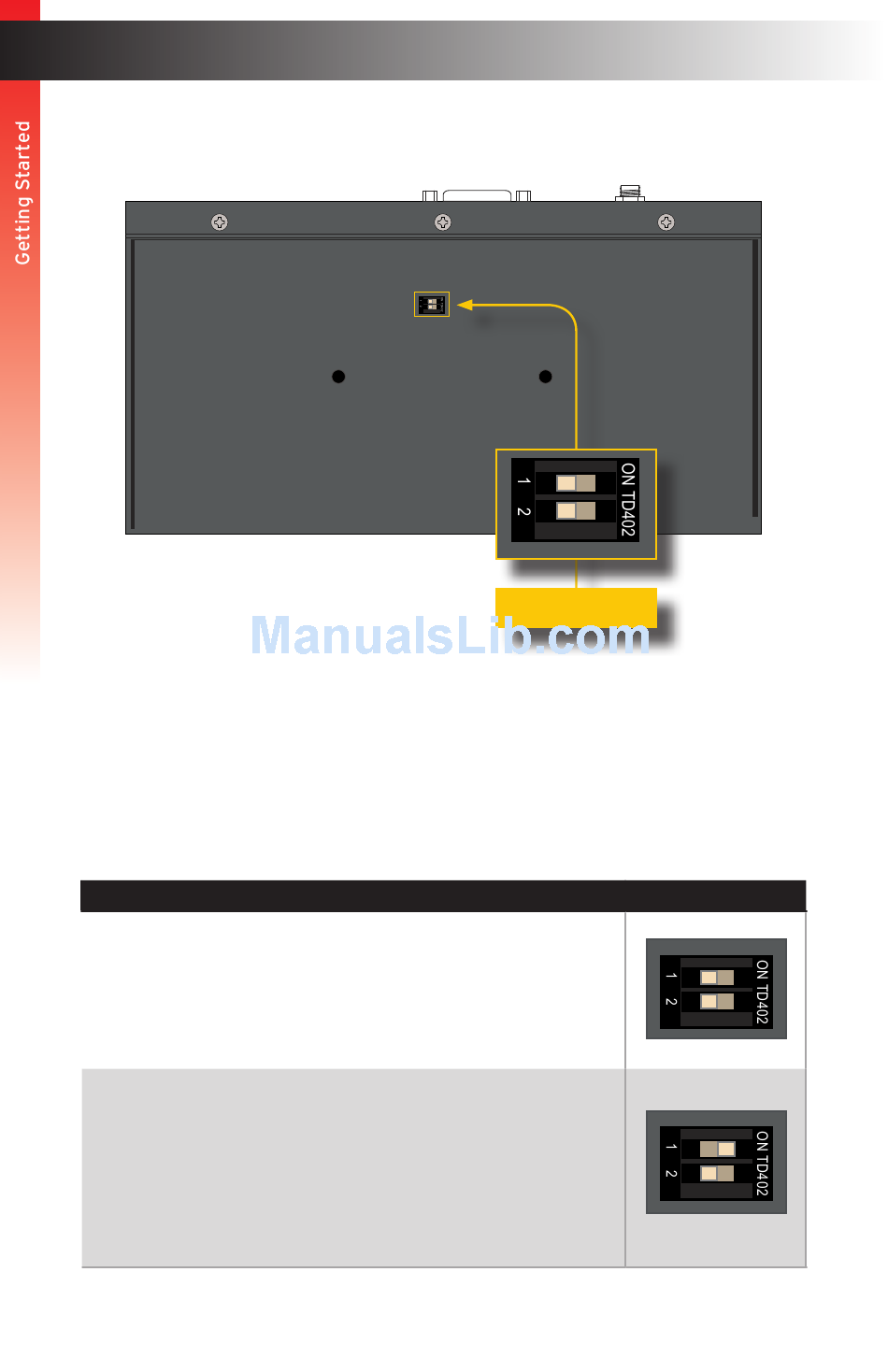

On the bottom of the Receiver unit are a bank of DIP switches. DIP switch 1 controls EDID
management. DIP switch 2 is not used.
Receiver unit
The DVI KVM Extra Long Range Extender Over One CAT5 provides EDID management.
The Sender unit can use the EDID from the sink device (downstream EDID) or the built-in
default EDID. Set DIP switch 1 to the ON (up) position to use the external (downstream)
EDID. Set DIP switch 1 to the OFF (down) position to use the internal EDID.
Description
Internal EDID mode
• DIP 1 = OFF (default)
• Uses the internal EDID on the Sender unit.
External (downstream) EDID mode
• DIP 1 = ON
• Allows all video and audio features of the connected device
to be passed to the source device.
• This mode must be used to pass HDCP content.
