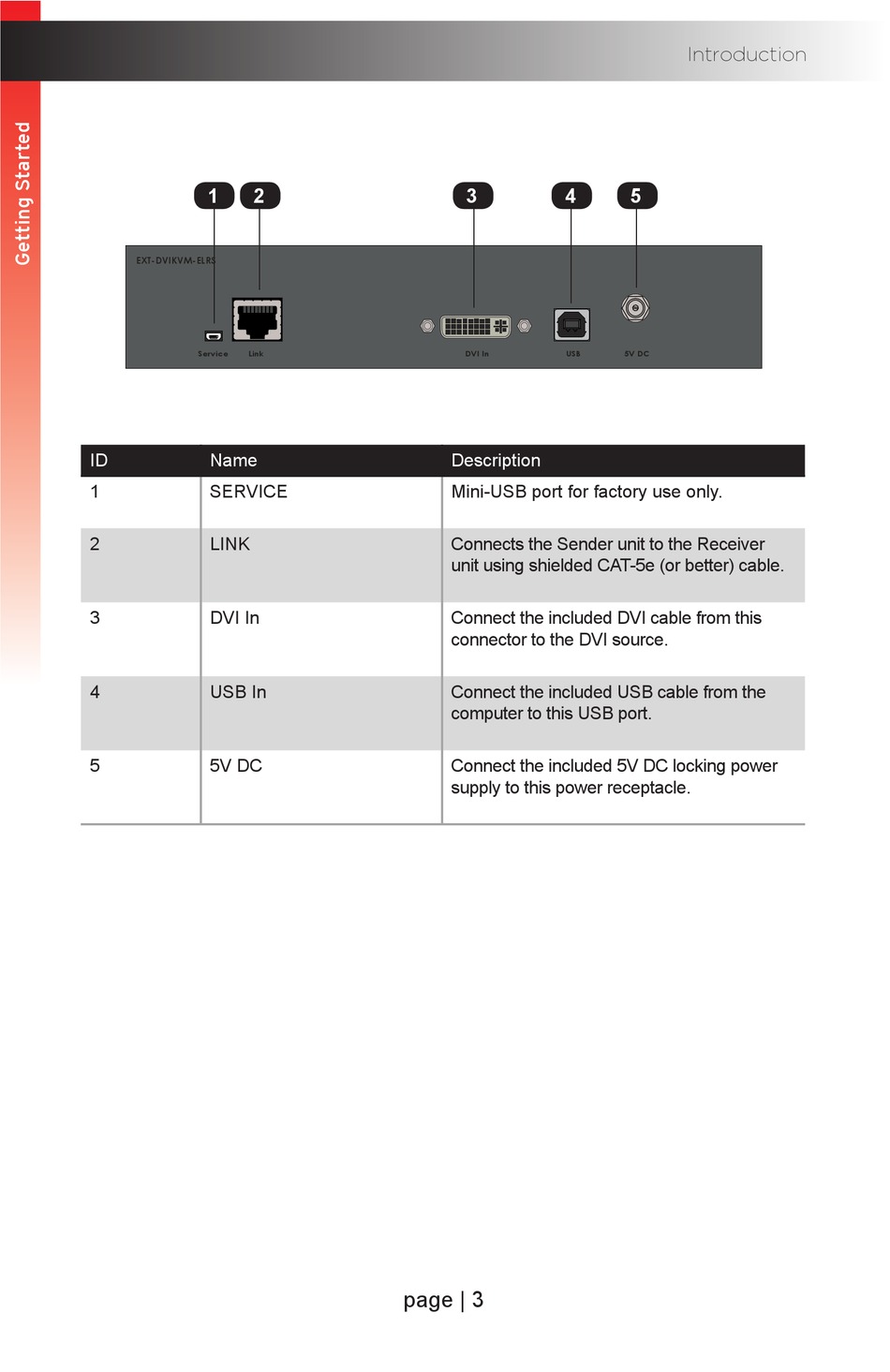

Gefen EXT-DVIKVM-ELR User Manual page 13

1 2
EXT-DVIKVM-ELRS
Service
Link
ID Name
1 SERVICE
2 LINK
3 DVI In
4 USB In
5 5V DC
DVI KVM ELR Extender over one CAT-5 S
®
Description
Mini-USB port for factory use only.
Connects the Sender unit to the Receiver
unit using shielded CAT-5e (or better) cable.
Connect the included DVI cable from this
connector to the DVI source.
Connect the included USB cable from the
computer to this USB port.
Connect the included 5V DC locking power
supply to this power receptacle.
page | 3
Link DVI
Power USB
3 4 5
DVI In USB 5V DC
Introduction Page Title
