Summary of Contents for Gefen EXT-DVI-1CAT6
- Page 1 ® DVI Over One CAT6 Extender EXT-DVI-1CAT6 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI over one CAT6 is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The DVI Over One CAT6 How to Connect the DVI over One CAT6 Adjusting the Signal Quality 10 DIP Switch Confi guration DIP Switch Location DIP Switch Confi... -
Page 4: Introduction

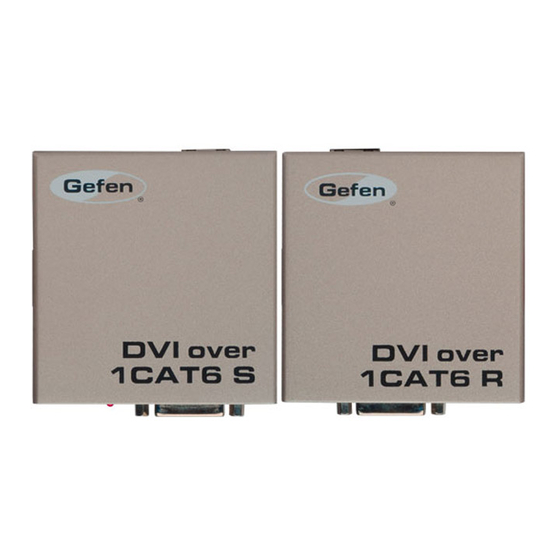

100% signal integrity over this single cable extension solution. How It Works The Gefen DVI over one CAT6 Extender system consists of two devices, a sender and a receiver. The single-link DVI source (set-top box, DVD player, or computer video card output) connects to the sender unit with the supplied 6-foot DVI cable. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI OVER ONE CAT6 EXTENDER • The DVI over one CAT6 Extender was designed for use with high quality CAT-6a (augmented) cabling. This unit will either not perform to specifi cation or refuse to operate completely if cabling other than CAT-6a is used. -
Page 6: Features
FEATURES Features • Flexible extension of single-link DVI-D thanks to inexpensive and widely- available CAT6 cable • Video is transmitted digitally over the CAT6 cable for zero signal loss • Single Link Range (Maximum resolution): 1920x1200@60 Hz • Compliant with HDCP 1.1 and DVI 1.1 standards •... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS 5V DC Power Receptacle Connect the included 5V DC power supply between this input and an open wall power socket. Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected between the unit and an open wall power socket. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Equalization Adjustment (Trim Pot Control) The EQ adjustment or Trim Pot is used to equalize the signal to compensate for the extension distance and the quality/skew variances that are found in different CAT6a cabling brands. DVI Output Connector This connector hooks up the Receiver to a DVI-D compliant monitor at the remote destination. -
Page 11: Connecting And Operating The Dvi Over One Cat6
Power up the DVI output device (i.e. DVI computer monitor) fi rst and the DVI source device (i.e. computer) last. Wiring Diagram for the DVI over One CAT-6 Extender CAT-5 CABLE (Up To 200 Ft) DVI CABLE DVI Source Receiver Sender DVI Display EXT-DVI-1CAT6... -
Page 12: Adjusting The Signal Quality
CONNECTING AND OPERATING THE DVI OVER ONE CAT-6 EXTENDER Adjusting the Signal Quality The DVI over one CAT6 receiver unit has a equalization device called a Trim Pot (trim potentiometer) to compensate for the extension distance and the quality/ skew variances that are found in different CAT6a cabling brands. If there is no output video or if output video contains video artifacts and/or video noise such as snow, please use the steps below to adjust the Trim Pot. -
Page 13: Dip Switch Confi Guration
DIP SWITCH CONFIGURATION DIP Switch Location On the bottom of the Receiver Unit, there are four (4) DIP switches. Each DIP switch performs a different function. Before modifying DIP switch settings, disconnect the power from the Receiver unit. After the DIP switches have been confi gured, reconnect the power. Receiver Unit (bottom) DIP Switch Bank... -
Page 14: Dip Switch Confi Guration
DIP SWITCH CONFIGURATION DIP Switch Settings DIP 1 - EDID Management • OFF - Local EDID When Local EDID mode is used, the EDID will be assembled by copying all video and audio features of the connected output device. Deep Color support will be manually controlled using DIP switch 2 (see DIP 2 - Deep Color, below). -
Page 15: Network Cable Wiring Diagram
Gefen has specifi cally engineered products to work with the TIA/EIA-568-B specifi cation. Please follow the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. Color... -
Page 16: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock ................225 MHz Maximum Video Resolution ..............1920x1200 Input DDC Signal ................. 5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p DVI Connector ..........DVI-I, 29-pin, female (digital only) Link Connector ................RJ-45 Shielded Power Supply .................... -
Page 17: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 19 Rev A9 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
