Introduction

ID Name
1 Power
EXT-DVIKVM-ELRS
2 Link
Service Link
3 USB
4 DVI

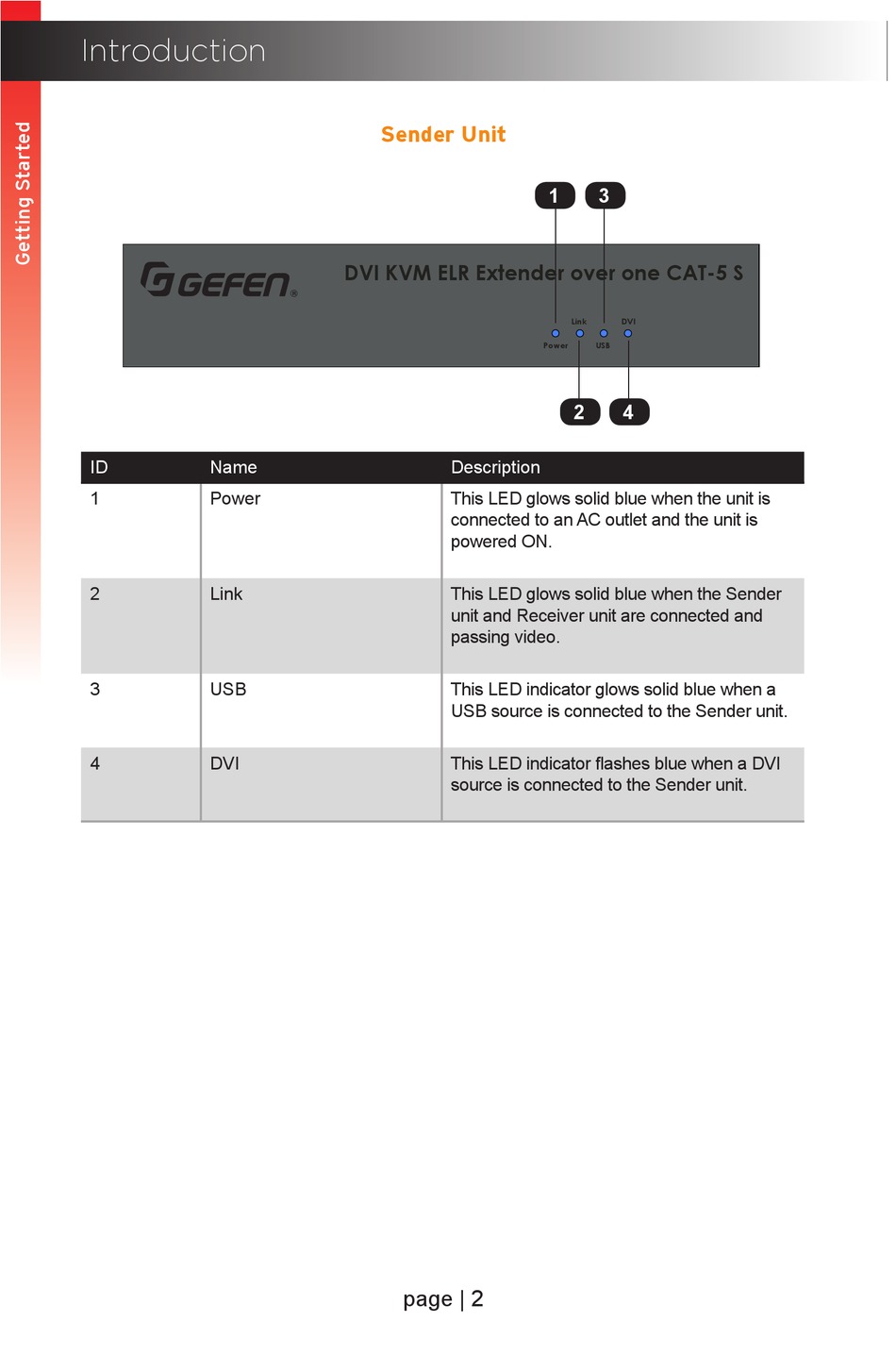

Sender Unit

DVI KVM ELR Extender over one CAT-5 S
®
Description
This LED glows solid blue when the unit is
connected to an AC outlet and the unit is
powered ON.
This LED glows solid blue when the Sender
unit and Receiver unit are connected and
passing video.
This LED indicator glows solid blue when a
USB source is connected to the Sender unit.
This LED indicator flashes blue when a DVI
source is connected to the Sender unit.
page | 2
1 3
Link DVI
Power USB
2 4
DVI In USB 5V DC
