- Page 1 Over 3GSDI Audio Embedder with Local DVI Output EXT-DVIKVM-LAN-L User Manual Release A2...
-
Page 2: Important Safety Instructions
DVI KVM over IP with Local DVI Output Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 Technical Support Hours: 8:00 AM to 5:00 PM Monday - Friday, Pacific Time DVI KVM over IP with Local DVI Output is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.
- Page 5 • Always make sure that the DVI KVM over IP with Local DVI Output is running the latest version of firmware. Go to the Support section of the Gefen Web site to download the latest version of firmware. See Upgrading the Firmware for instruction on performing the upgrade procedure.
- Page 6 DVI KVM over IP with Local DVI Output Operating Notes Type Sender A D Receiver Description UDP / MC control channel 3344 A X control channel 3344 A X TCP unicast mode only 3240 A X X D 3245 UDP unicast mode only (unicast mode default mode uses UDP, not TCP) UDP / MC...
-
Page 7: Packing List
The DVI KVM over IP with Local DVI Output ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • 1 x DVI KVM over IP w/ Local DVI Output - Sender Unit •... -
Page 8: Table Of Contents
3GSDI Audio Embedder DVI KVM over IP with Local DVI Output Table of Contents Getting Started Sender Unit Layout....................2 Front ......................2 Back ......................3 Receiver Unit Layout ..................... 4 Front ......................4 Back ......................5 Installation ......................6 Using a Direct Connection ................ - Page 9 DVI KVM over IP with Local DVI Output Table of Contents Appendix Upgrading the Firmware ..................46 Developer Notes....................48 Network Cable Diagram ..................49 Rack Tray Installation ..................50 Specifications ...................... 51...
-
Page 11: 01 Getting Started
Over with Local DVI Output 01 Getting Started Sender Unit Layout....................2 Front ......................2 Back ......................3 Receiver Unit Layout ..................... 4 Front ......................4 Back ......................5 Installation ......................6 Using a Direct Connection ................6 Local Area Network (LAN) Connection ............8 Supplementary Connections ............... -
Page 12: Sender Unit Layout

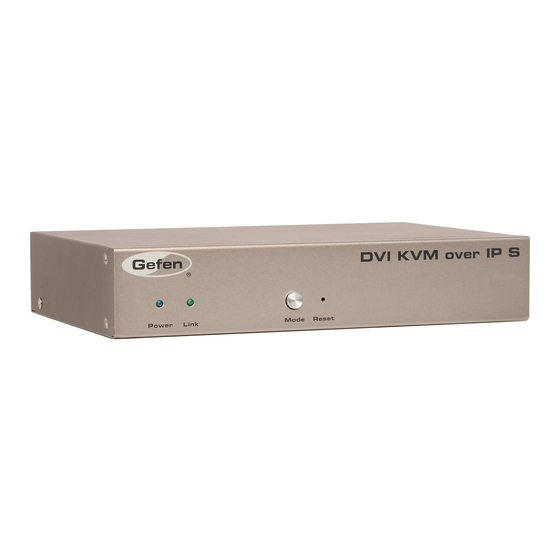

Getting Started Sender Unit Layout Front Name Description Power This LED glows steady blue when the unit is connected to an AC outlet and the unit is powered ON. Link This LED glows steady green when the Sender unit and Receiver unit are connected and passing video. -
Page 13: Back
Getting Started Sender Unit Layout Back Name Description DVI In Connect the included DVI cable from this connector to the DVI source. DVI Local Out Used to monitor the DVI source connected to the DVI In port. Connect a DVI cable from this port to a local display. -
Page 14: Receiver Unit Layout
Getting Started Receiver Unit Layout Front Name Description Power This LED glows steady blue when the unit is connected to an AC outlet and the unit is powered ON. Link This LED glows steady green when the Sender and Receiver units are connected using Ethernet cable and successfully passing video. -
Page 15: Back
Getting Started Receiver Unit Layout Back Name Description DVI Out Connect a DVI cable from this connector to the DVI display. RS-232 Connect the included RS-232 cable from this port to an RS-232 device. Using RS-232 for details. Connects the Receiver unit to the network (or directly to the Sender unit) using an Ethernet cable. -
Page 16: Installation
Getting Started Installation Page Title The DVI KVM over IP with Local DVI Output Sender and Receiver units can either be connected over a Local Area Network (LAN) or they can be directly connected to one another. Using a Direct Connection By default, the DVI KVM over IP with Local DVI Output is shipped in Auto IP mode. - Page 17 Getting Started Installation Connect a DVI cable from the DVI display to the DVI Out port on the Receiver unit. NOTE: When using HDMI sources with an HDMI-to-DVI adapter, the HDMI audio will be passed through to the DVI Out connector on the Receiver unit.
-
Page 18: Local Area Network (Lan) Connection
Getting Started Installation Local Area Network (LAN) Connection IMPORTANT: The use of a Gigabit switch with 8K “jumbo frame” capability is required when connecting the DVI KVM over IP with Local DVI Output to a network. In order to connect the DVI KVM over IP with Local DVI Output to a Local Area Network (LAN), both the Sender and Receiver unit must first be set to DHCP mode or static IP mode. - Page 19 Getting Started Installation Disconnect the cable between the Sender and Receiver unit. Connect the cable from the Sender unit to the network. Sender unit Connect to LAN Receiver unit Connect to LAN / DHCP server Note that any LAN port on the Receiver unit can be used to connect to the LAN. page | 9...
-
Page 20: Supplementary Connections
Getting Started Installation Supplementary Connections ► USB (see USB Control for more information on using USB devices) Connect a USB cable from the computer to the USB port on the Sender unit. Connect up to two USB devices to the Receiver unit. ►... -
Page 21: Sample Wiring Diagram
Sample Wiring Diagram CAT-5 CABLE (Up to 330 ft) DVI CABLE USB CABLE Gigabit Switch AUDIO CABLE RS-232 CABLE Receiver Multimedia PC RS-232 Controlled USB Mouse Device USB Keyboard Sender Powered Speakers or headphones HD Display HD Display EXT-DVIKVM-LAN-L page | 11... -
Page 23: Operating The Dvi Kvm Over Ip With Local Dvi Output
Over with Local DVI Output 02 Operating the DVI KVM over IP with Local DVI Output Basic Operation ....................14 Displaying the IP Address and Video Channel ........... 14 Setting the IP Mode ..................16 Setting the Video Channel ................17 Enabling or Disabling Video over IP ............ -
Page 24: Basic Operation
Operating the DVI KVM over IP with Local DVI Output Basic Operation Displaying the IP Address and Video Channel If the IP address or the video channel of a Sender and/or Receiver unit is not known, then use the following procedure for any Sender or Receiver unit on the network. Press and release the -/Select button on the front panel of the Receiver unit. - Page 25 Operating the DVI KVM over IP with Local DVI Output Basic Operation Channel:255 Press and hold the -/Select button until the channel number disappears from the screen. The Receiver unit is now changed to the channel 255. After a few moments, the screen will go blank and the IP address of both the Sender and Receiver unit will be displayed in the lower-right corner of the screen.
-
Page 26: Setting The Ip Mode
Operating the DVI KVM over IP with Local DVI Output Basic Operation Setting the IP Mode The DVI KVM over IP with Local DVI Output can be set to Auto IP, DHCP, or Static IP mode. By default, the DVI KVM over IP with Local DVI Output is shipped in Auto IP mode. Access the Web interface by entering the IP address of the desired Sender or Receiver unit. -
Page 27: Setting The Video Channel
Operating the DVI KVM over IP with Local DVI Output Basic Operation Setting the Video Channel In order a Sender and Receiver unit to communicate with one another, they must both be set to the same channel. This is similar to changing the channel on a cable or satellite box in order to view a different program. - Page 28 Operating the DVI KVM over IP with Local DVI Output Basic Operation Using the Web Interface Access the Web interface by entering the IP address of the desired Sender or Receiver unit. Refer to (Displaying the IP Address and Video Channel) if necessary.
-
Page 29: Enabling Or Disabling Video Over Ip
Operating the DVI KVM over IP with Local DVI Output Basic Operation Enabling or Disabling Video over IP This feature is useful for masking video. Disabling the video on the Sender unit will mask the video on all connected Receiver units (multicast mode only). To mask the video on selected Receiver units, disable the video on the desired Receiver units. -
Page 30: Unicast And Multicast Modes
Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Configuring Unicast Mode The term unicast is used to describe a configuration where information is sent from one point to another point. It is possible to have multiple Sender and Receiver units connected in a system. - Page 31 Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Click the Unicast button under the Network Mode group. When selected, the Unicast button will be highlighted in blue. Click the Save button in the lower-right corner of the Network Mode group. The following message will be displayed, at the top of the page, indicating that the casting mode has been applied to the Sender or Receiver unit.
-
Page 32: Switching Between Sender Units In Unicast Mode
Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Switching between Sender units in Unicast mode When multiple Sender and Receiver units are used in unicast mode, the DVI KVM over IP with Local DVI Output behaves as a switcher. In unicast mode, a Sender unit can communicate with only one Receiver unit at a time. - Page 33 Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Figure 2.3 - Unicast mode: Receiver unit R1 is now connected to Sender unit S1. Receiver unit DVI Out Sender unit DVI Out Receiver unit Sender unit DVI In Sender unit DVI In...
- Page 34 Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes In order to solve the problem, in Figure 2.4, we would need to make sure that each of the Sender units is set to a unique channel number. When using unicast mode, each of the Sender units must be assigned a unique channel and should never be changed.
-
Page 35: Configuring Multicast Mode
Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Configuring Multicast Mode The term multicast is used to describe a configuration where information is sent from one or more points to a set of other points. For example, a single Sender unit can transmit data to multiple Receiver units. - Page 36 Operating the DVI KVM over IP with Local DVI Output Unicast and Multicast Modes Click the Multicast button under the Network Mode group. When selected, the Multicast button will be highlighted in blue. Click the Save button in the lower-right corner of the Network Mode group. The following message will be displayed, at the top of the page, indicating that the casting mode has been applied to the Receiver unit.
-
Page 37: Using Rs-232
RS-232 data must be set to the same baud rate as the RS-232 host and client. In the example below, the Gefen 4x1 HD Switcher w/ Audio Decoding (Gefen part no. GTV-AUDDEC-N) has been connected to Receiver unit A. This is the RS-232 client. - Page 38 Operating the DVI KVM over IP with Local DVI Output Using RS-232 Access the Web interface for the Sender unit. Click the Functions tab. Locate the Serial over IP group and change the RS-232 settings to match the settings of the RS-232 device that is being used. In this case, we need to use the settings from Table 2.1 Make sure that the Enable Serial over IP box is checked.
-
Page 39: Rs-232 Under Unicast Mode
Operating the DVI KVM over IP with Local DVI Output Using RS-232 RS-232 under Unicast Mode In unicast mode, a Sender unit will be able to communicate with only one Receiver unit at a time. Figure 2.7 - In unicast mode, the host can talk to only one RS-232 device at a time. Receiver unit DVI Out C -N... -
Page 40: Usb Control
Operating the DVI KVM over IP with Local DVI Output USB Control USB under Unicast Mode When connecting USB devices to the DVI KVM over IP with Local DVI Output, the functionality is similar to that of video and RS-232. NOTE: By default, the DVI KVM over IP with Local DVI Output Sender and Receiver units are shipped in unicast mode. - Page 41 Operating the DVI KVM over IP with Local DVI Output USB Control Locate the USB over IP group and make sure the Enable USB over IP box is checked. This is the default setting. In unicast mode, the Operation Mode is automatically set to Active on link and cannot be changed.
-
Page 42: Usb Under Multicast Mode
Operating the DVI KVM over IP with Local DVI Output USB Control USB under Multicast Mode When connecting USB devices to the DVI KVM over IP with Local DVI Output, the functionality is similar to that of video and RS-232. There are two USB modes available in multicast mode: Active per request mode and Active on link mode. - Page 43 Operating the DVI KVM over IP with Local DVI Output USB Control In multicast mode, the Operation Mode for both Sender and Receiver units are automatically set to Active per request mode. Under Active per request mode, multiple USB devices may be present on one or more Receiver units.
- Page 44 Operating the DVI KVM over IP with Local DVI Output USB Control Assigning USB control under Active per request mode Now, let’s look at an example of switching USB control between two Receiver units. Using the diagram on the previous page, we want Receiver unit R1 to have USB control. To assign USB control to another Receiver unit, use the following steps: Press and hold the -/Select button on the desired Receiver unit, for at least two seconds.
- Page 45 Operating the DVI KVM over IP with Local DVI Output USB Control Active on link mode Under Active on link mode, a maximum of four USB devices can be used within a system. In the diagram, on the previous page, the system is already using the maximum number of USB devices (2 USB devices per Receiver).
-
Page 46: Edid Management
Operating the DVI KVM over IP with Local DVI Output EDID Management The DVI KVM over IP with Local DVI Output features EDID Management. Before the source can send video (and/or audio) data, the source device (connected to each Sender unit) reads the EDID (Extended Display Identification Data) from the displays which are connected to each Receiver unit. -
Page 47: Using The Downstream Edid
Operating the DVI KVM over IP with Local DVI Output EDID Management Using the Downstream EDID By default, the (downstream) EDID from the display, connected to the Receiver unit, is used. If the internal EDID is being used (see Using the Internal DVI EDID), then use the following procedure to revert to the downstream EDID. -
Page 48: Audio Connections
Operating the DVI KVM over IP with Local DVI Output Audio Connections Audio works in both unicast and multicast modes. To illustrate how audio works with the DVI KVM over IP with Local DVI Output, we will set up an audio source (computer) and some powered speakers. - Page 49 Operating the DVI KVM over IP with Local DVI Output Audio Connections In the diagram below, the mouse and keyboard USB devices have been removed from Sender unit S2 and Receiver unit R2, for purposes of clarity. Arrowheads indicate the audio signal path.
-
Page 50: Using Hdmi Sources
Operating the DVI KVM over IP with Local DVI Output Audio Connections Using HDMI Sources Hi-Def (HDMI) sources can be connected to the DVI KVM over IP with Local DVI Output when using HDMI-to-DVI adapters on the Sender and Receiver units. HDMI audio is passed through to the DVI Out port on the Receiver unit. -
Page 51: Setting The Video Mode
Operating the DVI KVM over IP with Local DVI Output Setting the Video Mode The DVI KVM over IP with Local DVI Output provides two video modes: Video Mode and Graphic Mode. Consecutively pressing the Mode button on the Sender unit will toggle between Video Mode and Graphic Mode. -
Page 52: Performing A Factory Reset
Operating the DVI KVM over IP with Local DVI Output Performing a Factory Reset To reset a DVI KVM over IP with Local DVI Output Sender and / or Receiver unit to factory- default settings, follow the instructions below. Sender Unit Disconnect the power from the Sender unit. -
Page 55: 03 Appendix
Over with Local DVI Output 03 Appendix Upgrading the Firmware ..................46 Developer Notes....................48 Network Cable Diagram ..................49 Rack Tray Installation ..................50 Specifications ...................... 51... -
Page 56: Upgrading The Firmware
Computer (Mac or PC) • Firmware files Download the firmware for the DVI KVM over IP with Local DVI Output from the Gefen Web site. Extract both firmware files from the .ZIP file. The .ZIP file contains two files: ►... - Page 57 Appendix Upgrading the Firmware Once the firmware upgrade process has completed, the DVI KVM over IP with Local DVI Output will reboot. Repeat the process for each Sender and Receiver unit in the system. page | 47...
-
Page 58: Developer Notes
Appendix Developer Notes The following information is intended for developers that use the DVI KVM over IP with Local DVI Output product as part of their application. To change the routing on the Sender and Receiver unit, the following URL needs to be issued: http://IP/cgi-bin/query.cgi?callback=jQuery15101605335909232362_1 370475364360&cache=false&nocache=1370480983843&cmd=astparam+s+mul... -
Page 59: Network Cable Diagram
Shielded (STP) CAT-5 or CAT-6 is recommended. However, unshielded (UTP) CAT-5 or CAT-6 is acceptable. CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types. Gefen recommends using solid core cabling. CAT-6 cable is also recommended. It is recommended to use one continuous run from one end to the other. Patch cable is not recommended. -
Page 60: Rack Tray Installation
Appendix Rack Tray Installation The following illustrations provide instructions for installing the Sender and/or Receiver unit(s) in the Gefen 1U Rack Tray (Gefen part no. EXT-RACK-1U). Step 1 Step 2 Turn unit upside down. Remove rubber feet. Step 3 Step 4 Line up holes on unit and rack tray. -
Page 61: Specifications
Appendix Specifications Supported Formats Resolutions (max.) • 1080p Full HD • 1920 x 1200 (WUXGA) Electrical Maximum Pixel Clock • 165 MHz Link indicator (Sender / Receiver) • 1 x LED, green Power indicator (Sender / Receiver) • 1 x LED, blue Mode button (Sender) •... - Page 62 Stretch it. Switch it. Split it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
