EXT-DVI-FM15
User Manual
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
ww.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-DVI-FM15 and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen EXT-DVI-FM15

Summary of Contents for Gefen EXT-DVI-FM15

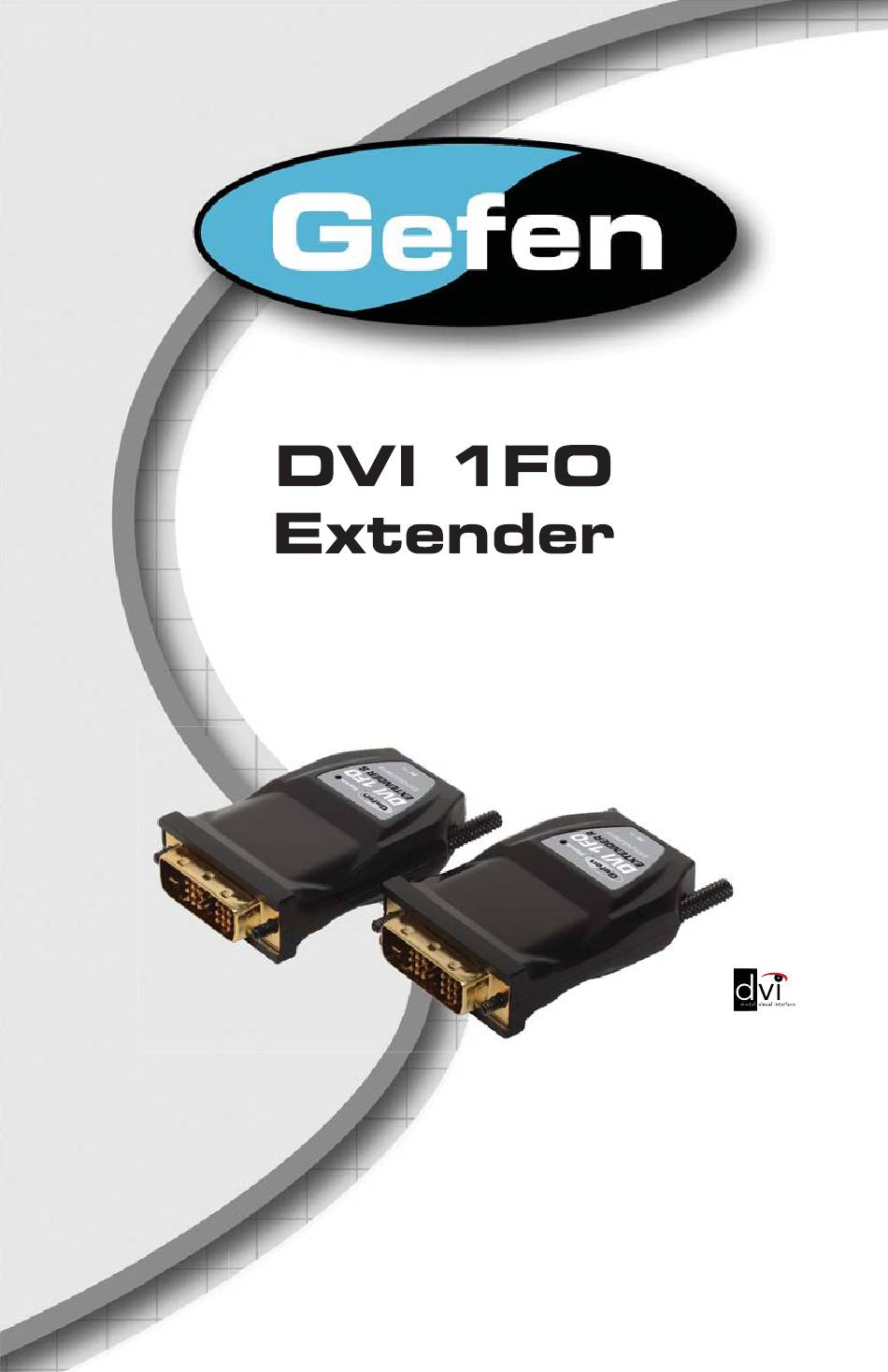

  • Page 1 EXT-DVI-FM15 User Manual ww.gefen.com...
  • Page 3 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. DVI 1FO Extender is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Module Layout Sender Module Descriptions Receiver Module Layout Receiver Module Descriptions Connecting the DVI 1FO Extender Wiring Diagram EDID Programming 10 Specifi cations 11 Warranty...

  • Page 5: Introduction

    Congratulations on your purchase of the DVI 1FO Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.

  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI 1FO EXTENDER • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • The DVI 1FO Extender works for all DVI displays and supports resolutions up to 1920 x 1200.

  • Page 7: Features

    Fiber optic transmission eliminates electromagnetic interference (EMI) • Compact Sender and Receiver modules provide a clean, easy installation • Use Gefen CAB-1SC-xxxx OM1 Fiber Optic Link Cables for distances from 30 - 330 feet (9-100 meters) • FCC and CE compliant for EMI/RFI emission...

  • Page 8: Sender Module Layout

    SENDER MODULE LAYOUT Back Side Front...

  • Page 9: Sender Module Descriptions

    SENDER MODULE DESCRIPTIONS Status Indicator This LED will glow bright blue when the Sender module is powered. This LED is also used to indicate the status of the Sender module when programming the EDID. See page 9 for details. 5V DC Power Receptacle Connect the optional 5V DC power supply to this receptacle only if the source does not supply enough voltage to power the Sender module.

  • Page 10: Receiver Module Layout

    RECEIVER MODULE LAYOUT Back Front...

  • Page 11: Receiver Module Descriptions

    RECEIVER MODULE DESCRIPTIONS Status Indicator This LED will glow bright blue when the Receiver module is powered. 5V DC Power Receptacle Connect this cable to the included 5V DC power supply. SC Fiber Connectors Connect a single strand of OM3 SC-terminated multimode fi ber optic cable from the Sender module to the Receiver module.

  • Page 12: Connecting The Dvi 1Fo Extender

    14 of the DVI connector. If the source does not supply enough power to the Sender module, then a power supply must be connected to the Sender module. Wiring Diagram for the DVI 1FO Extender FIBER OPTIC CABLE Sender DVI Source Receiver DVI Display EXT-DVI-FM15...

  • Page 13: Edid Programming

    EDID PROGRAMMING EDID Programming Procedure EDID programming is required if the maximum resolution of the display does not support 1600 x 1200 (UXGA). IMPORTANT: The DVI 1FO Extender (Sender module) has a default built-in EDID of 1600 x 1200. If the Sender module is programmed with another EDID, the default EDID will be erased.

  • Page 14: Specifications

    SPECIFICATIONS Maximum Pixel Clock................165 MHz Video Input Connector (Sender)..........DVI-D, 19-pin, male Video Output Connector (Receiver)........DVI-D, 19-pin, male Link Connector (Sender / Receiver)......(1) Type SC fi ber (50/125μm) Power Supply (Sender / Receiver)............... 5V DC Power Consumption (Receiver)............0.95 W (max.) Operating Temperature................

  • Page 15: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 16 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
