Summary of Contents for Gefen DVI-FMP

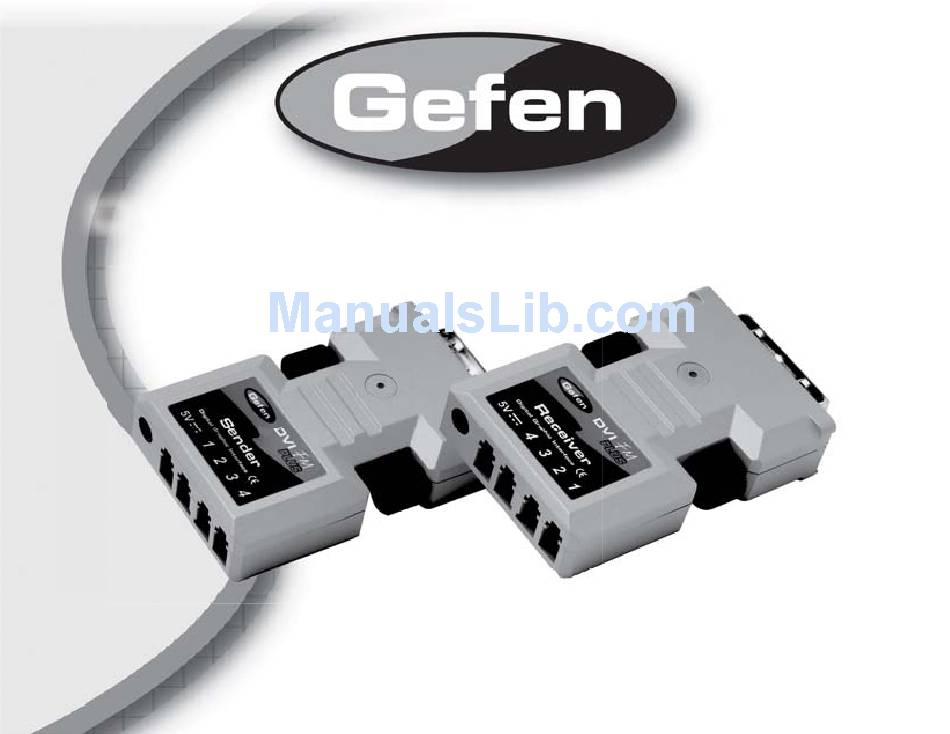

- Page 1 DVI Fiber Optic Extender www.gefen.com www gefen com EXT-DVI-FMP User Manual User Manual...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying All trademarks are the property of their respective companies Notice doc u men ta tion without prior written notice.
-
Page 3: Table Of Contents
Introduction Operation Notes Features Sender/ Receiver Panel Layout Panel Descriptions Sender Unit Edid Button Location Connecting And Operating The DVI FMP Specifi cations Warranty CONTENTS... -
Page 4: Introduction
The Gefen DVI FMP The DVI-FMP Extender extends your DVI display up to 2000 feet away from your source, with only two tiny transmitters and receivers required, using a 100% optical fi ber solution. It’s a great way to extend DVI video easily and unobtrusively. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • DVI FM Plus Extender works for all DVI displays and supports resolutions up to 1920x1200 •... -
Page 6: Features
Features • Extends any DVI (Digital Visual Interface) - compliant device up to 2000 ft (600 m) from the computer • Supports video resolutions up to 1080p, 2K, and 1920 x 1200 • Uses inexpensive and widely available four-strand multimode LC fi ber optic cable •... -
Page 7: Sender/ Receiver Panel Layout
SENDER/ RECEIVER PANEL LAYOUT Front Panel Back Panel Back Panel... -
Page 8: Panel Descriptions
DVI Input/Output The sending unit will connect to the DVI output of the source, and the receiving unit will connect to the DVI input of the display. 5V DC Power Supply Input While both the sending and receiving units have the power supply input, only the sending unit should have the included power supply attached. -
Page 9: Sender Unit Edid Button Location
SENDER UNIT EDID BUTTON LOCATION EDID Button Hole Insert a small pin into the EDID button hole to program the display’s EDID... -
Page 10: Connecting And Operating The Dvi Fmp
CONNECTING AND OPERATING THE DVI FMP Plug the 5V power supply to the power input of the sender, and connect the power supply to the nearest power outlet. Ensure that the blue LED is ON. How to program the sender with the displays EDID: Push the EDID button on the sender unit. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200 DVI Input/Output Connector Type ... DVI-D (19 pin) male Fiber Requirement ...
