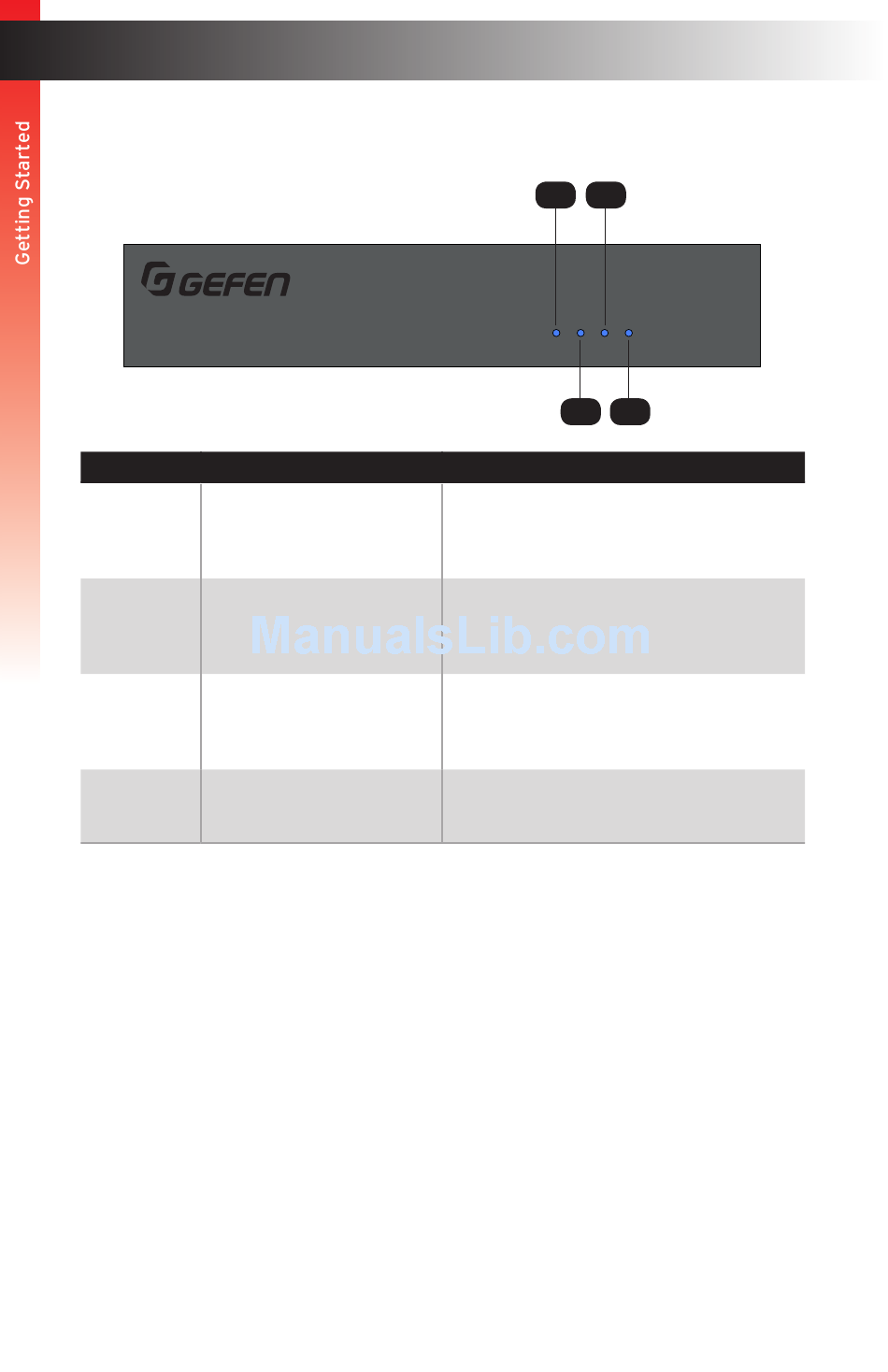

Receiver Unit

DVI KVM ELR Extender over one CAT-5 R
®
Description
This LED glows solid blue when the unit is
connected to an AC outlet and the unit is
powered ON.
DVI Out
This LED glows solid blue when the Sender
unit and Receiver unit are connected and
passing video.
This LED indicator glows solid blue when
a USB device is connected to the Receiver
unit.
This LED indicator flashes blue when a DVI
display is connected to the Receiver unit.
2 E
page | 4
Introduction
1
3
Link
Power
USB
2
4
5V DC
USB
