- Page 1 DVI FM1000 Extender EXT-DVI-FM-1000 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI FM1000 Extender is a trademark of Gefen Inc. © 2010 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Connecting And Operating The DVI FM1000 Extender Specifi cation Warranty... -
Page 4: Introduction
Congratulations on your purchase of the DVI FM1000 Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI FM1000 EXTENDER • DVI FM1000 Extender can only be operated with multi-mode SC terminated fi ber optic cable. • The supplied power adapter must only be used on the receiving unit. Power for the transmitting unit is supplied by the source device. -
Page 6: Features
FEATURES Features • Extends any DVI (Digital Visual Interface)-compliant device up to 3,280 ft (1km) from the computer • Supports video resolutions up to 1080p, 2K, and 1920 x 1200 • Uses inexpensive and widely available single-strand multimode SC fi ber optic cable •... -
Page 7: Panel Layout

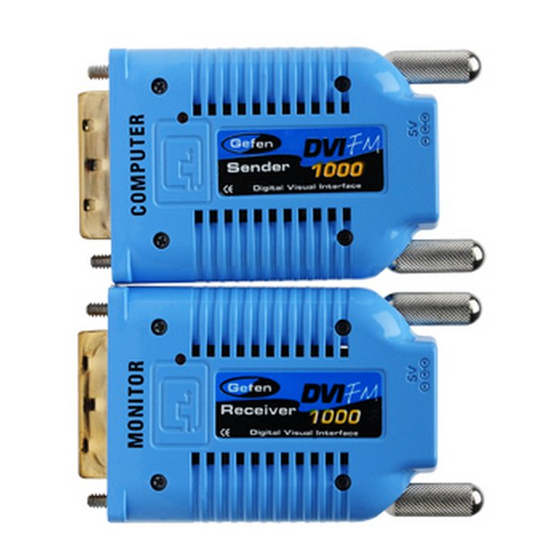

PANEL LAYOUT Sender Front Panel Sender Front Panel Receiver Front Panel Receiver Front Panel DVI In DVI Out Sender Back Panel Receiver Back Panel Optical 5V DC Optical 5V DC Cable Input Input Cable Input Input... -
Page 8: Connecting And Operating The Dvi Fm1000 Extender
CONNECTING AND OPERATING THE DVI FM1000 EXTENDER How to Connect the DVI FM1000 Extender EDID Recording: Display information (EDID) contains resolution and timing information for your display. This information is needed by the source for proper video output. Follow these steps to record the EDID of the display into the sending unit. If you know that EDID is not required by the source the followings steps for recording will not be necessary. -
Page 9: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ..................165 MHz (Single Link) Input Video Signal ........................1.2 Volts p-p Input DDC Signal ......................5 Volts p-p (TTL) DVI Connector ....................Type DVI-D (19 pin) male Link Connector ............................SC Power Supply ........................... 5V DC Power Consumption ...................... -
Page 10: Specifi Cation
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 11 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
