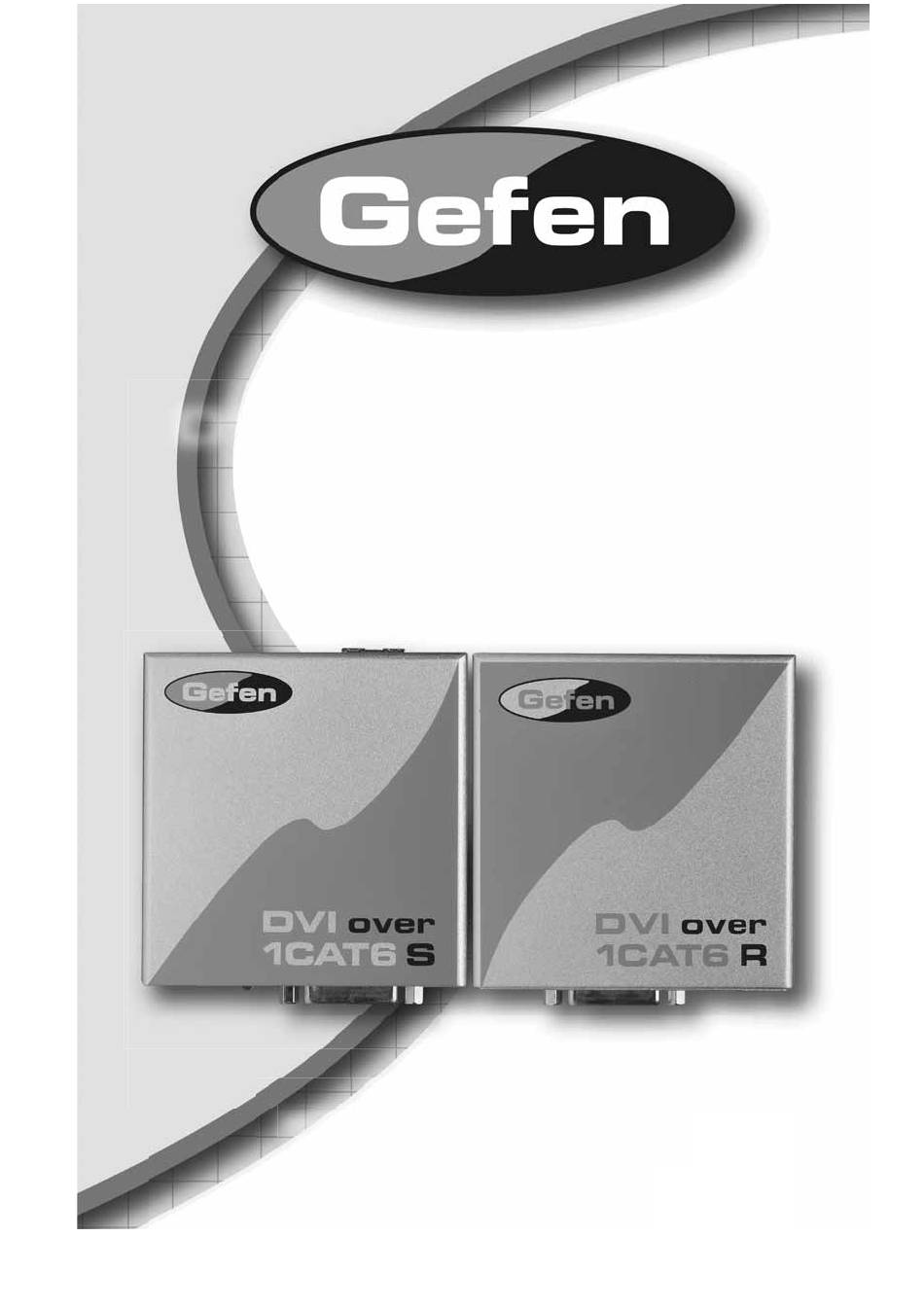

- Page 1 DVI over 1 CAT6 Extender EXT-DVI-1CAT6 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. DVI over one CAT6 is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The DVI Over One CAT6 Network Cable Wiring Diagram 6SHFL¿FDWLRQV 11 Warranty... -
Page 4: Introduction
100% signal integrity over this single cable extension solution. How It Works The Gefen DVI over one CAT6 Extender system consists of two devices, a sender and a receiver. The single-link DVI source (set-top box, DVD player, or computer video card output) connects to the sender unit with the supplied 6-foot DVI cable. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI OVER ONE CAT6 EXTENDER ‡ The DVI over one CAT6 Extender was designed for use with high quality &$7D DXJPHQWHG FDEOLQJ 7KLV XQLW ZLOO HLWKHU QRW SHUIRUP WR VSHFL¿FDWLRQ or refuse to operate completely if cabling other than CAT-6a is used. -
Page 6: Features
FEATURES Features ‡ Flexible extension of single-link DVI-D thanks to inexpensive and widely- available CAT6 cable ‡ Video is transmitted digitally over the CAT6 cable for zero signal loss ‡ Single Link Range (Maximum resolution): 1920x1200@60 Hz ‡ Compliant with HDCP 1.1 and DVI 1.1 standards ‡... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS 5V DC Power Receptacle Connect the included 5V DC power supply between this input and an open wall power socket. Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected between the unit and an open wall power socket. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Equalization Adjustment (Trim Pot Control) The EQ adjustment or Trim Pot is used to equalize the signal to compensate for the extension distance and the quality/skew variances that are found in different CAT-6a cabling brands. DVI Output Connector This connector hooks up the Receiver to a DVI-D compliant monitor at the remote destination. - Page 11 CONNECTING AND OPERATING THE DVI-1CAT6 EXTENDER How to Connect the DVI over one CAT6 Extender Connect a DVI-D cable (one is supplied) between the DVI output on a source device and the DVI input connector on the DVI over one CAT6 Extender sender unit.
-
Page 12: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM *HIHQ KDV VSHFL¿FDOO\ HQJLQHHUHG SURGXFWV WR ZRUN ZLWK WKH 7,$(,$% VSHFL¿FDWLRQ 3OHDVH IROORZ WKH WDEOH EHORZ ZKHQ ¿HOG WHUPLQDWLQJ FDEOH IRU use with Gefen products. Failure to do so may produce unexpected results and reduced performance. Color... - Page 13 SPECIFICATIONS 9LGHR $PSOL¿HU %DQGZLGWK 0+] Maximum Video Resolution ............1920x1200 max. Input DDC Signal ................. 5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p DVI Connector ..........DVI-I (29 pin) female (digital only) Link Connector ................RJ-45 Shielded Power Supply ....................
