Network Cable Diagram

Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when
field-terminating cable for use with Gefen products.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown / White
Information
Shielded CAT-5e (or better) cabling is recommended.

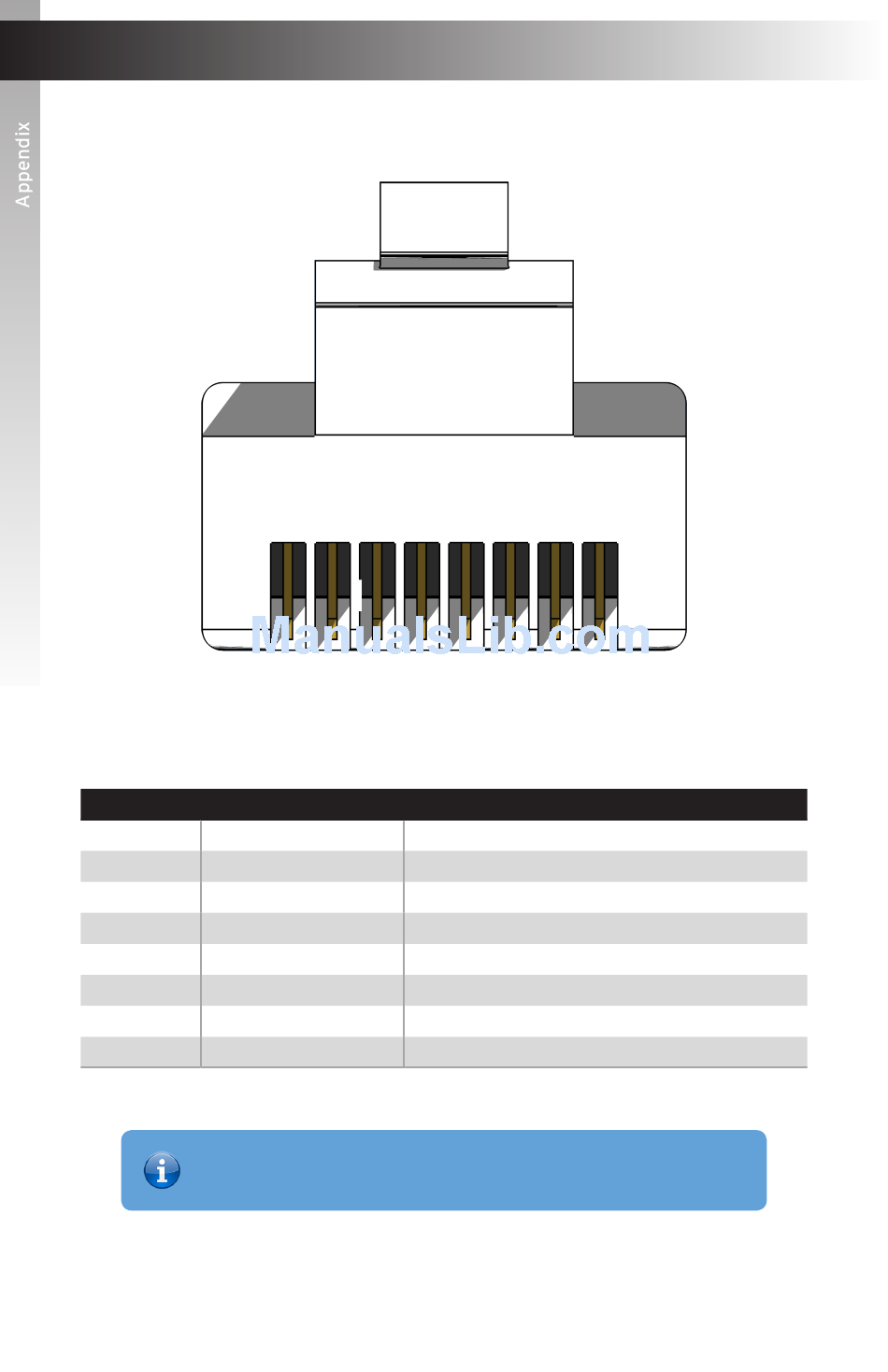

Front of RJ-45 Connector
1 2 3 4 5 6 7 8
Description
TD+ (Transmit Data, positive differential signal)
TD- (Transmit Data, negative differential signal)
RD+ (Receive Data, positive differential signal)
Unused
Unused
RD- (Receive Data, negative differential signal)
Unused
Unused
