Summary of Contents for Gefen EXT-DVI-FM2500

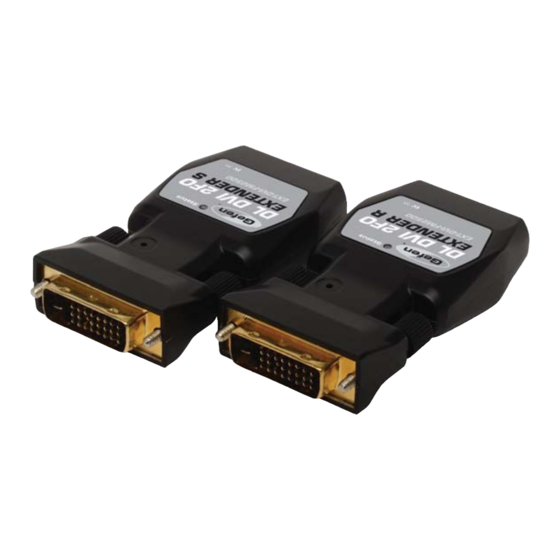

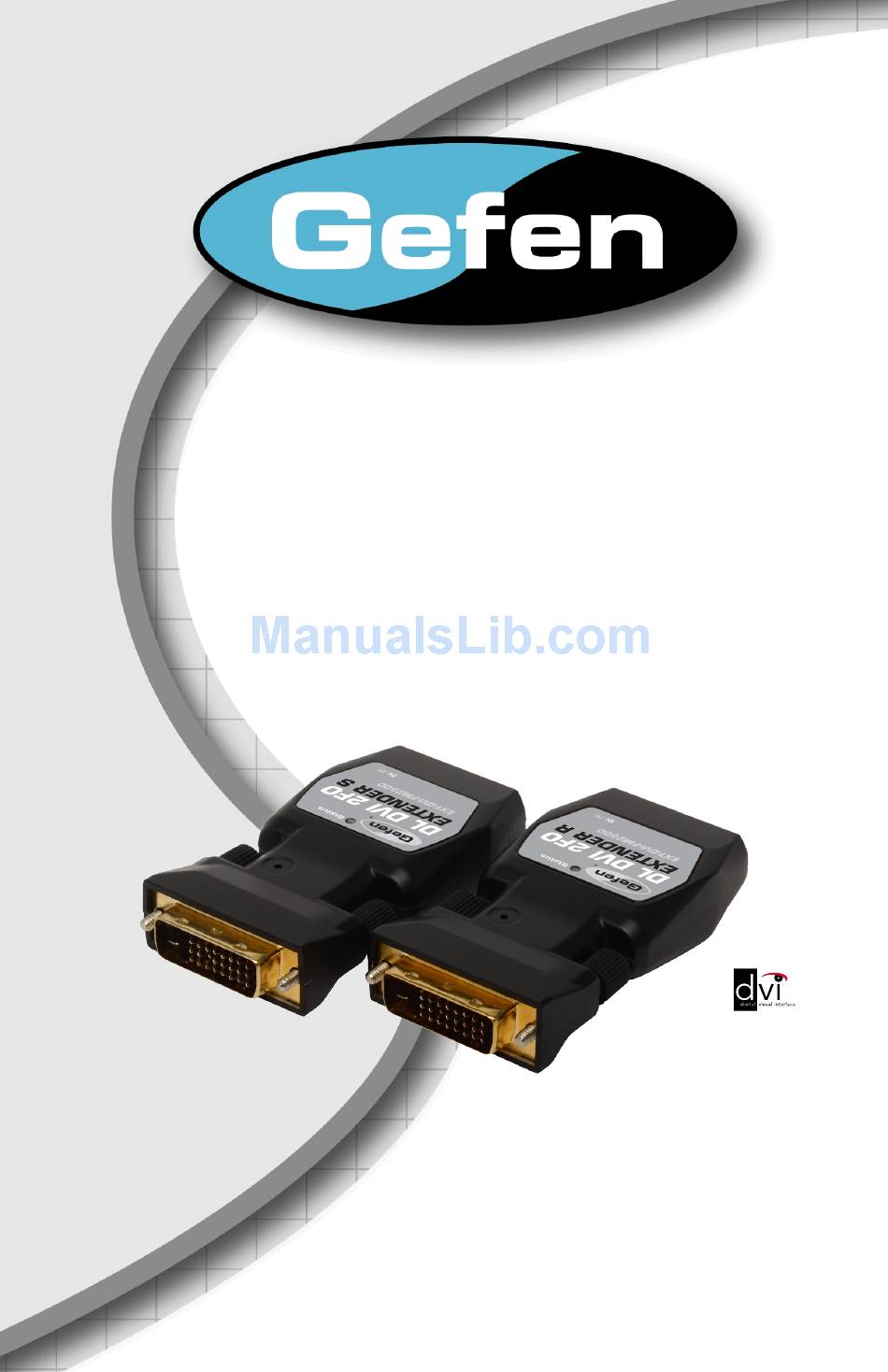

- Page 1 ® DL DVI 2FO Extender EXT-DVI-FM2500 User Manual www.gefen.com...
- Page 3 Notice Gefen LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. DL DVI 2FO Extender is a trademark of Gefen LLC © 2013 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Module Layout Sender Module Descriptions Receiver Module Layout Receiver Module Descriptions Connecting the DL DVI 2FO Extender Wiring Diagram EDID Programming 10 Specifications 11 Warranty... -
Page 5: Introduction
Congratulations on your purchase of the DL DVI 2FO Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DL DVI 2FO EXTENDER • The fiber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • The DL DVI 2FO Extender works for all DVI displays and supports dual link resolutions up to 3840 x 2400. -
Page 7: Features
• Compact Sender and Receiver modules provide a clean, easy installation • Use Gefen CAB-2LC-xxx OM1 Fiber Optic Link Cables for distances from 30 - 330 feet (9 - 100 meters) • FCC and CE-compliant for EMI/RFI emission Package Includes... -
Page 8: Sender Module Layout
SENDER MODULE LAYOUT Back Side Front... -
Page 9: Sender Module Descriptions
SENDER MODULE DESCRIPTIONS Power Indicator This LED will glow bright blue when the Sender module is powered. Status Indicator This LED will flash bright blue during the EDID programming procedure. See page 9 for more information. 5V DC Power Receptacle Connect the optional 5V DC power supply to this receptacle only if the source does not supply enough voltage to power the Sender module. -
Page 10: Receiver Module Layout
RECEIVER MODULE LAYOUT Back Front... -
Page 11: Receiver Module Descriptions
RECEIVER MODULE DESCRIPTIONS Power Indicator This LED will glow bright blue when the Receiver module is powered. Status Indicator This LED will flash bright blue during the EDID programming procedure. See page 9 for more information. 5V DC Power Receptacle Connect this cable to the included 5V DC power supply. -
Page 12: Connecting The Dl Dvi 2Fo Extender
Sender module (indicated by a flashing power indicator), then connect the other included power supply to the Sender module. Wiring Diagram for the DL DVI 2FO Extender FIBER OPTIC CABLE Sender Dual-Link DVI Source Receiver Dual-Link DVI Display EXT-DVI-FM2500... -
Page 13: Edid Programming
EDID PROGRAMMING EDID Programming Procedure EDID programming is required if the maximum resolution of the display does not support 2560 x 1600 (WQXGA). IMPORTANT: The DL DVI 2FO Extender (Sender module) has a default built-in EDID of 2560 x 1600. If the Sender module is programmed with another EDID, the default EDID will be erased. -
Page 14: Specifications
SPECIFICATIONS Maximum Pixel Clock................2 x 165 MHz Video Input Connector (Sender)......... (1) DVI-D 24-pin, male Video Output Connector (Receiver)........(1) DVI-D 24-pin, male Link Connector (Sender / Receiver)............. (2) Type LC Power Supply (Sender)....5V / 1A DC (not needed for most applications) Power Supply (Receiver)............... -
Page 15: Warranty
If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 16 Rev A3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed or CE compliant power supplies.
