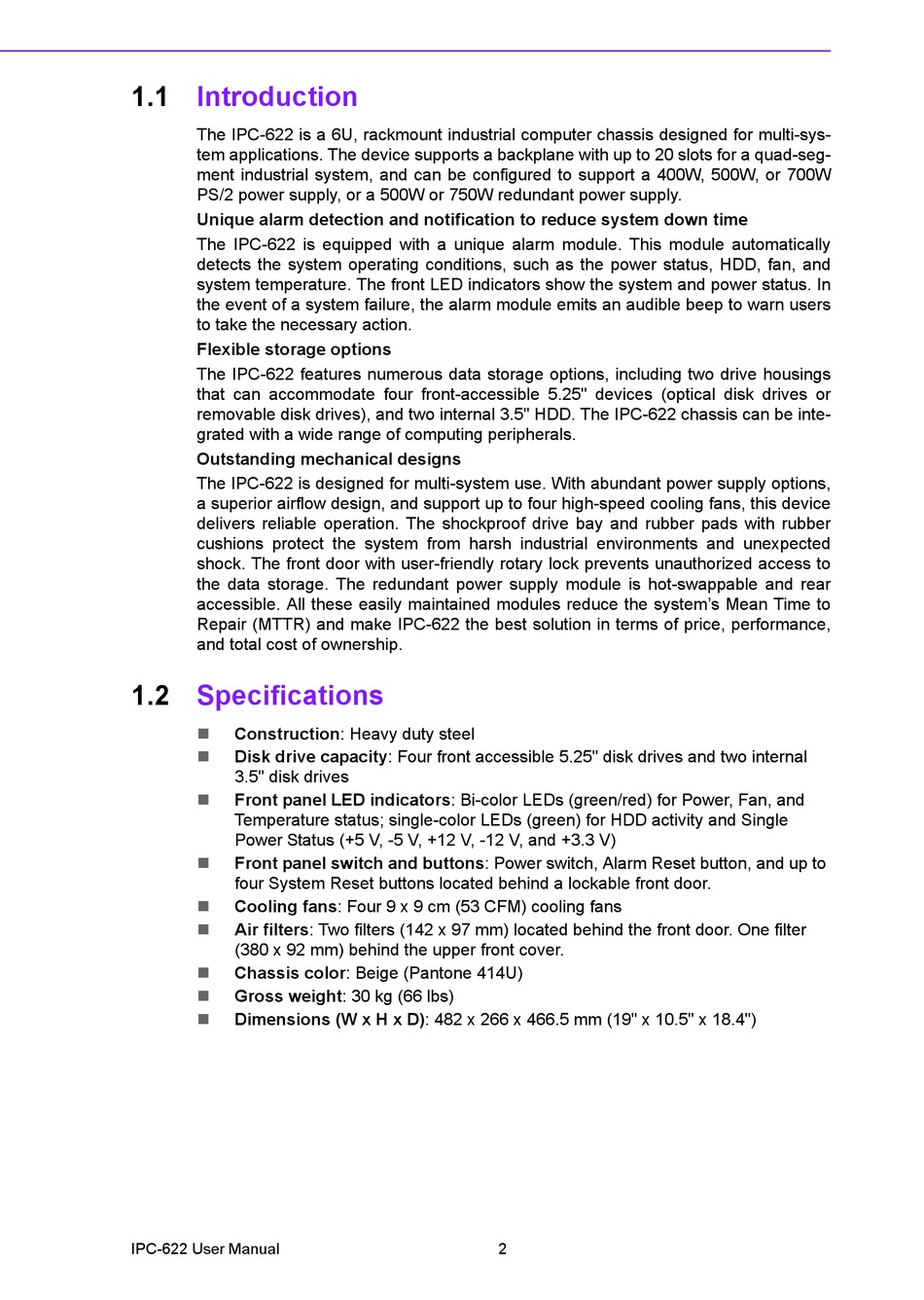

1.1
Introduction
The IPC-622 is a 6U, rackmount industrial computer chassis designed for multi-sys-
tem applications. The device supports a backplane with up to 20 slots for a quad-seg-
ment industrial system, and can be configured to support a 400W, 500W, or 700W
PS/2 power supply, or a 500W or 750W redundant power supply.
Unique alarm detection and notification to reduce system down time
The IPC-622 is equipped with a unique alarm module. This module automatically
detects the system operating conditions, such as the power status, HDD, fan, and
system temperature. The front LED indicators show the system and power status. In
the event of a system failure, the alarm module emits an audible beep to warn users
to take the necessary action.
Flexible storage options
The IPC-622 features numerous data storage options, including two drive housings
that can accommodate four front-accessible 5.25" devices (optical disk drives or
removable disk drives), and two internal 3.5" HDD. The IPC-622 chassis can be inte-
grated with a wide range of computing peripherals.
Outstanding mechanical designs
The IPC-622 is designed for multi-system use. With abundant power supply options,
a superior airflow design, and support up to four high-speed cooling fans, this device
delivers reliable operation. The shockproof drive bay and rubber pads with rubber
cushions protect the system from harsh industrial environments and unexpected
shock. The front door with user-friendly rotary lock prevents unauthorized access to
the data storage. The redundant power supply module is hot-swappable and rear
accessible. All these easily maintained modules reduce the system's Mean Time to
Repair (MTTR) and make IPC-622 the best solution in terms of price, performance,
and total cost of ownership.
1.2
Specifications
Construction: Heavy duty steel
Disk drive capacity: Four front accessible 5.25" disk drives and two internal
3.5" disk drives
Front panel LED indicators: Bi-color LEDs (green/red) for Power, Fan, and
Temperature status; single-color LEDs (green) for HDD activity and Single
Power Status (+5 V, -5 V, +12 V, -12 V, and +3.3 V)
Front panel switch and buttons: Power switch, Alarm Reset button, and up to
four System Reset buttons located behind a lockable front door.
Cooling fans: Four 9 x 9 cm (53 CFM) cooling fans
Air filters: Two filters (142 x 97 mm) located behind the front door. One filter
(380 x 92 mm) behind the upper front cover.
Chassis color: Beige (Pantone 414U)
Gross weight: 30 kg (66 lbs)
Dimensions (W x H x D): 482 x 266 x 466.5 mm (19" x 10.5" x 18.4")
IPC-622 User Manual
2
