2.3
CPU Card/Add-on Card Installation
2.3.1
Single CPU card/add-on card installation
IPC-622 supports up to 20 add-on cards. To install a CPU card or add-on cards,
please proceed as follows:
1.
Select a vacant PICMG slot for a full-length CPU card or PCI/ISA slot for add-on
cards and remove the corresponding I/O bracket attached to the rear plate of
the chassis.
2.
Insert the CPU card with CPU, CPU cooler, RAM, and necessary cables
installed. Insert the add-on card vertically into the selected slot (see Figure 2.3).
For CPU cards or full-length cards, ensure that the card bracket is correctly
installed and the card edge is inserted into the plastic guiding fillister. Affix the
card to the top of the I/O bracket using a screw.
3.
Repeat Steps 1 and 2 to install more than one add-on card.
4.
For the PICMG1.3 backplane, plug the ATX power connector from the power
supply into the CPU card to be installed.
5.
Connect the relevant wires on the chassis to the CPU card, including the 9-pin
USB wire, power switch wire, system reset switch wire, power LED wire, and
HDD LED wire.
6.
For the PICMG1.0 backplane, connect the orange-white wire from the connec-
tor "CN20" on the CPU card to the connector "HCN1" on the backplane. Con-
nect the 4-pin +12 V power connector from the power supply to the CPU card.

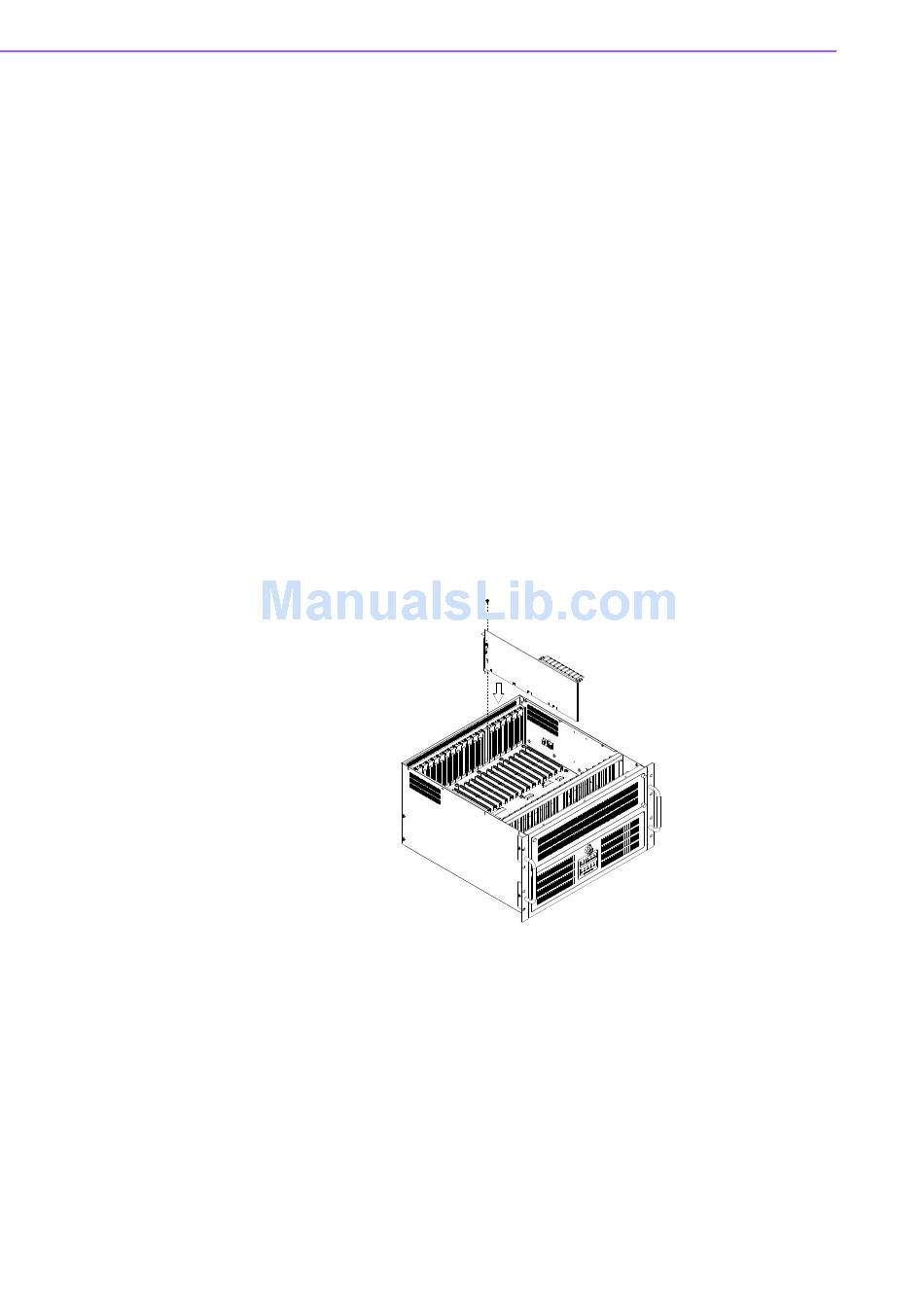

Figure 2.3 CPU card/full-length add-on card installation
IPC-622 User Manual
8
