Dimension Diagram

IPC-622 User Manual
432.0 [17.01]
465.0 [18.31]
482.0 [18.98]
465.0 [18.31]
482.0 [18.98]

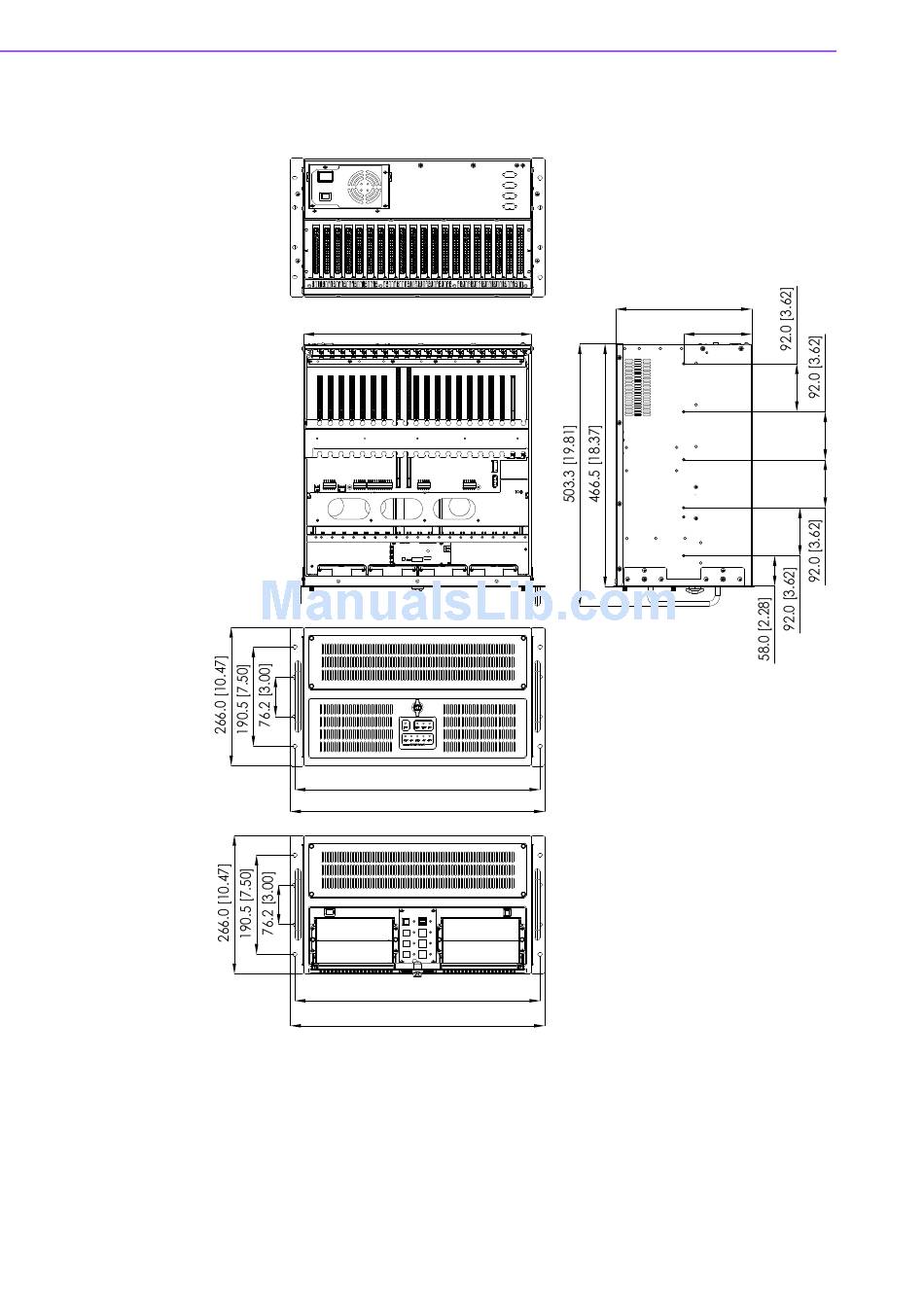

Figure 1.1 Dimension diagram
4
257.6 [10.14]
128.9 [5.07]
Unit: mm [inch]
