The following section outlines the procedures for installing the backplane, add-on
cards, and disk drives into the IPC-622 chassis. Please refer to Appendix A,
Exploded Diagram, for the specific names of the IPC-622 components.
Caution! Use caution when installing or manipulating the components with the
chassis open. Remember to turn off the power, unplug the power cord,
and ground yourself by touching the metal chassis before handling any
of the internal components.
2.1
Top Cover Removal
To remove the top cover, please refer to Figure 2.1 and proceed as follows:
1.
Loosen the eight screws on the sides and the three screws on the front of the
top cover.
2.
Remove the top cover.
IPC-622 User Manual

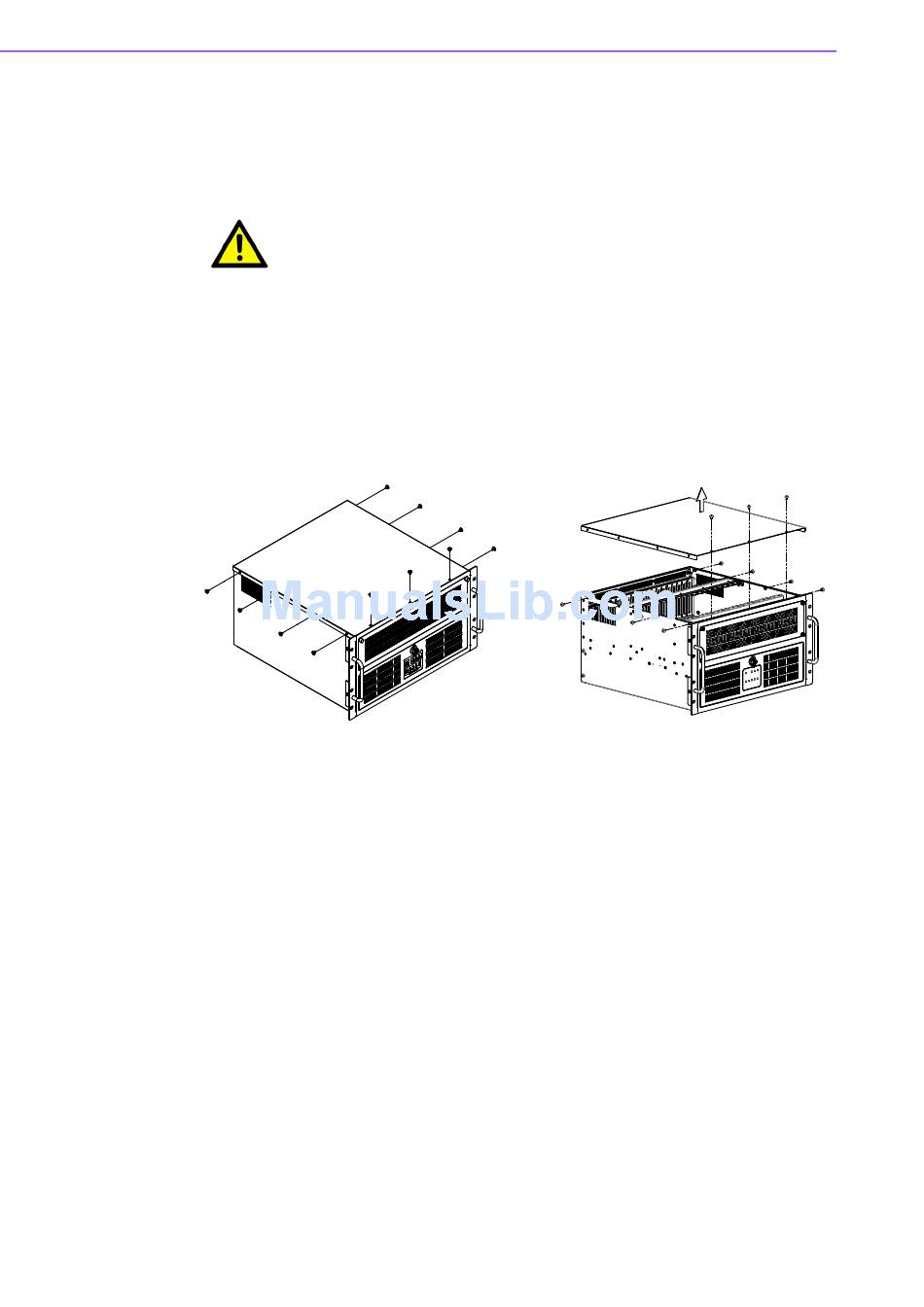

Figure 2.1 Top cover removal
6
