3.1 Operation of SpectroDrive

Automatic measurement
Place sheet within
measurement zone

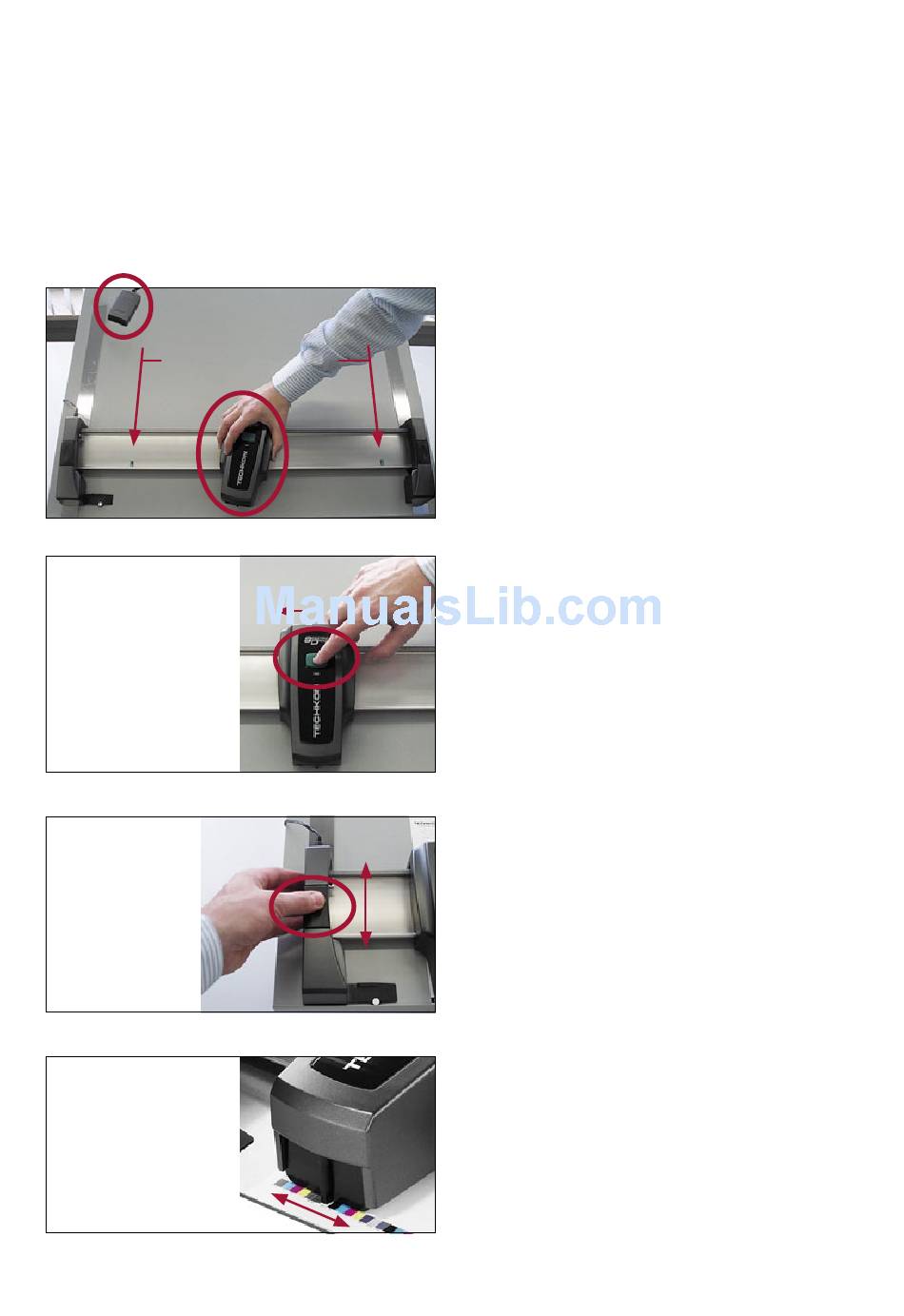

Page 12 Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
• Place the measurement device on the
horizontal track.
• The module for the wireless data trans-
mission has to be positioned as close as pos-
sible to the measurement device with the
front pointing to the measurement system as
shown on the image. Please connect it to the
PC via the USB cable AFTER the installation
of the software (see p. 11).
• By pressing the green measurement button
the device will move into the charging station
at the left, where it is automatically charged,
which is indicated by a green-flashing LED.
• You can align the measurement system
in vertical direction. By keeping the black
buttons on the left and right holder pressed
you reduce the magnetic adhesion of the
holders.
• First, position the printed sheet at the
lower lay-on edge.
• Then move both holders vertically, so
that the measurement head is exactly on
top of the color patches. It can be helpful
to slide the measurement device from one
side to the other in order to check that the
measurement aperture covers the complete
color bar during a scan.
