By clicking on the device icon in the right section of the menu bar (1.), one gets a
direct access to important device settings. A window is displayed with the submenus
"Measurement device", "Measurement settings", "Export to other applications" and
"Update" (see p. 33 – 36).
Below the menu bar the program window (2.) is displayed which is activated by the
appropriate menu item.

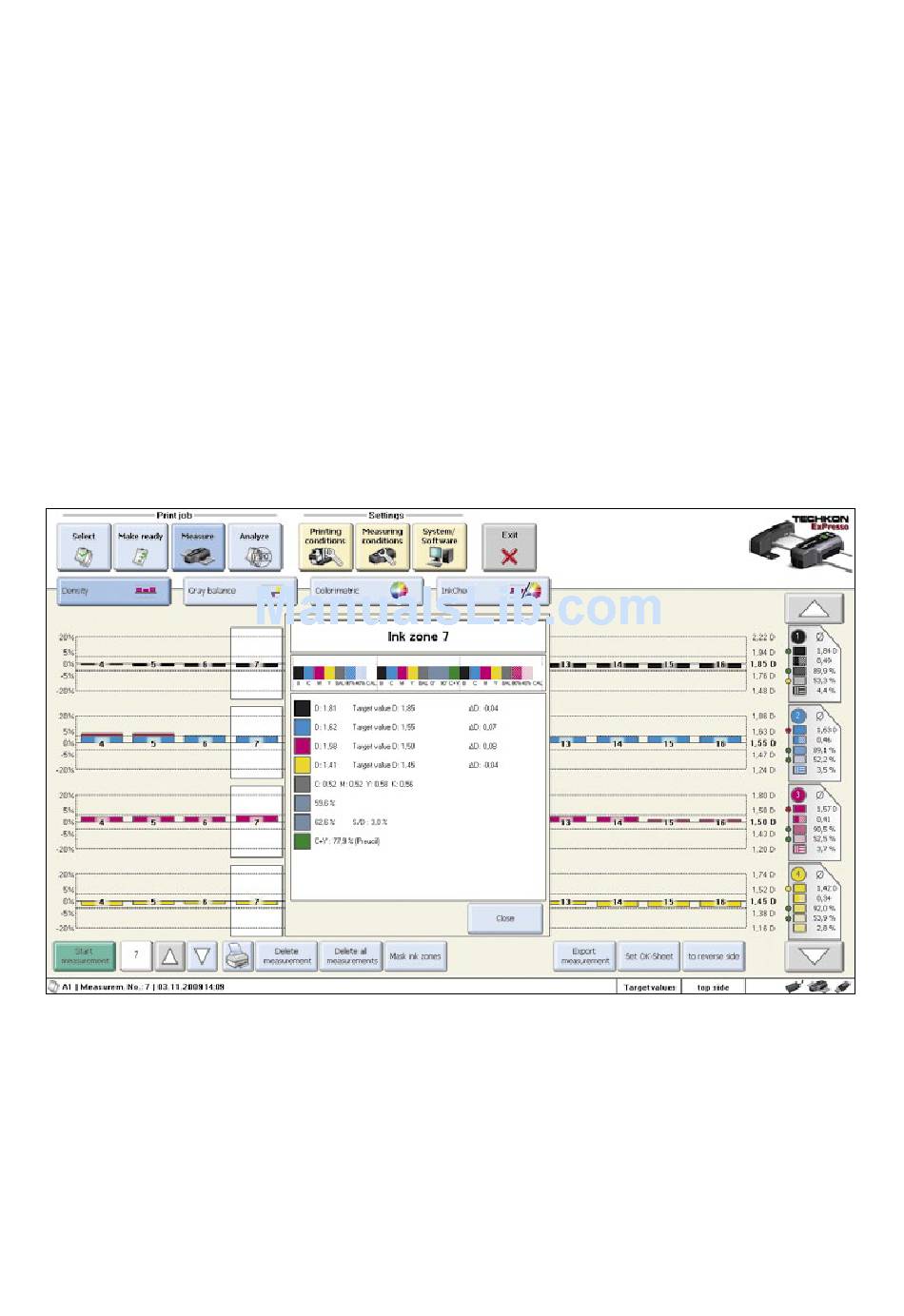

The following example shows the program window "Density" after a measurement
was carried out. In this program window a click on the bar graph opens a second
window displaying detailed measurement data of the ink zones.
The command line (3.) of the active program window is located at the bottom of
the program window.
2.
3.
The bottom area of the screen is a status line (4.), showing at the right side the
connection status of the module for wireless data transmission, of the measurement
device (SpectroDrive, SpectroDrive Simulator or SpectroJet) and of the USB-dongle.
When moving the mouse pointer on the icons of one of these components, you get
additional information, e. g. the density- and colorimetric-settings of the device or the
software version.
Page 22 Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
1.
4.
