Measuring conditions – Measurement devices
The types of measurement devices which can be connected to the ExPresso soft-
ware are shown. When you have chosen the type of device you wish to connect, an
information window is displayed at the left side of the window. Here you get further
information about the actual device and the connection status.

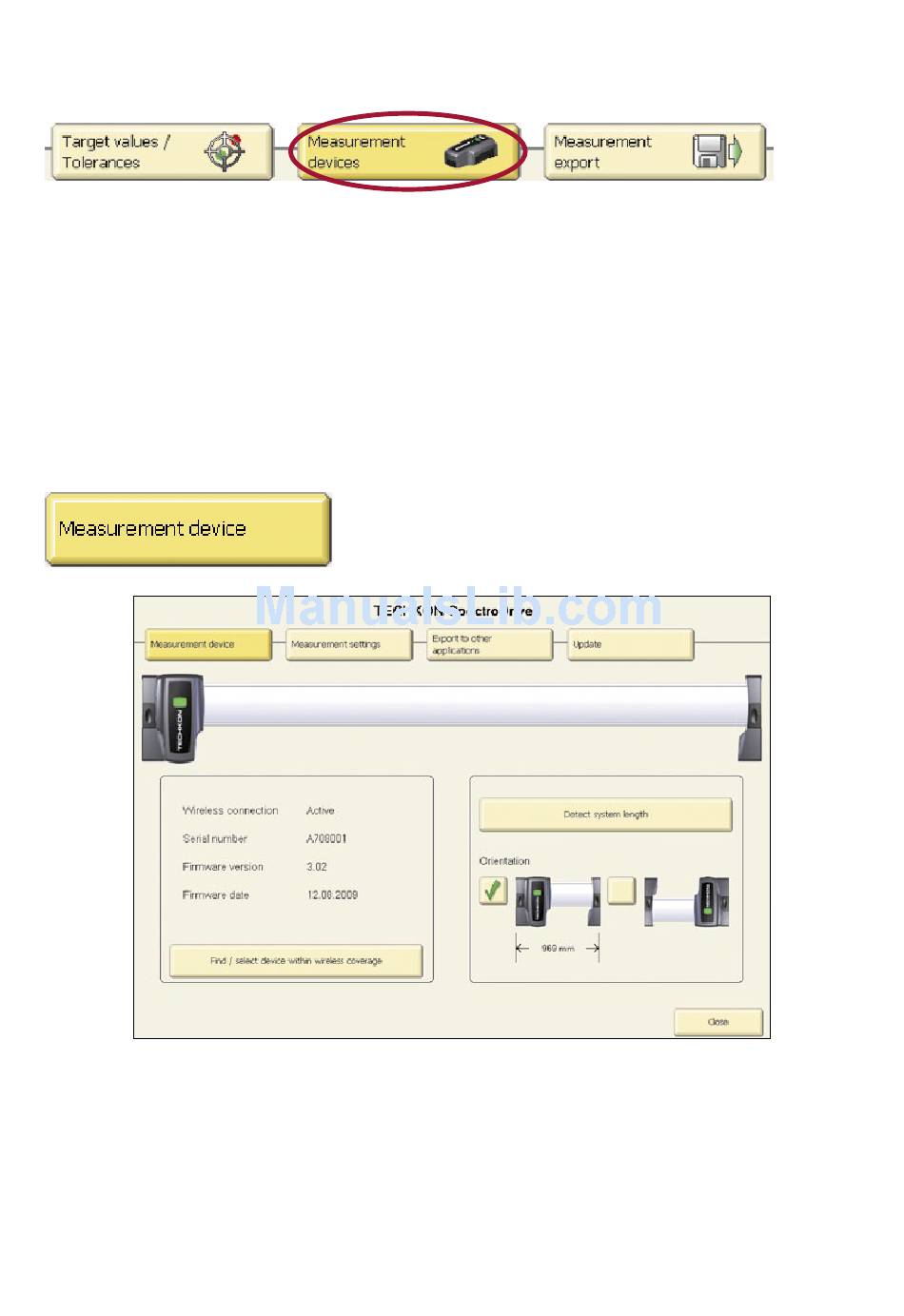

By clicking on the "Settings" button in the right lower corner, of the "Measurement
devices" menu, the window "TECHKON SpectroDrive" opens, which is divided into
four sections and offers basic settings options.
1.
2.
The "Measurement device" window shows all relevant information concerning the
connected device (1.). If there is more than one TECHKON measurement device
within the wireless coverage, you can choose the device you wish to use with "Find /
select device within wireless coverage" (2.).
If you changed the horizontal track, detect the system length (3.) and define the ori-
entation of the measurement device (4.) by using the appropriate buttons in the right
section of the window.
Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
3.
4.
