Measurement of a print job
Measure – Density

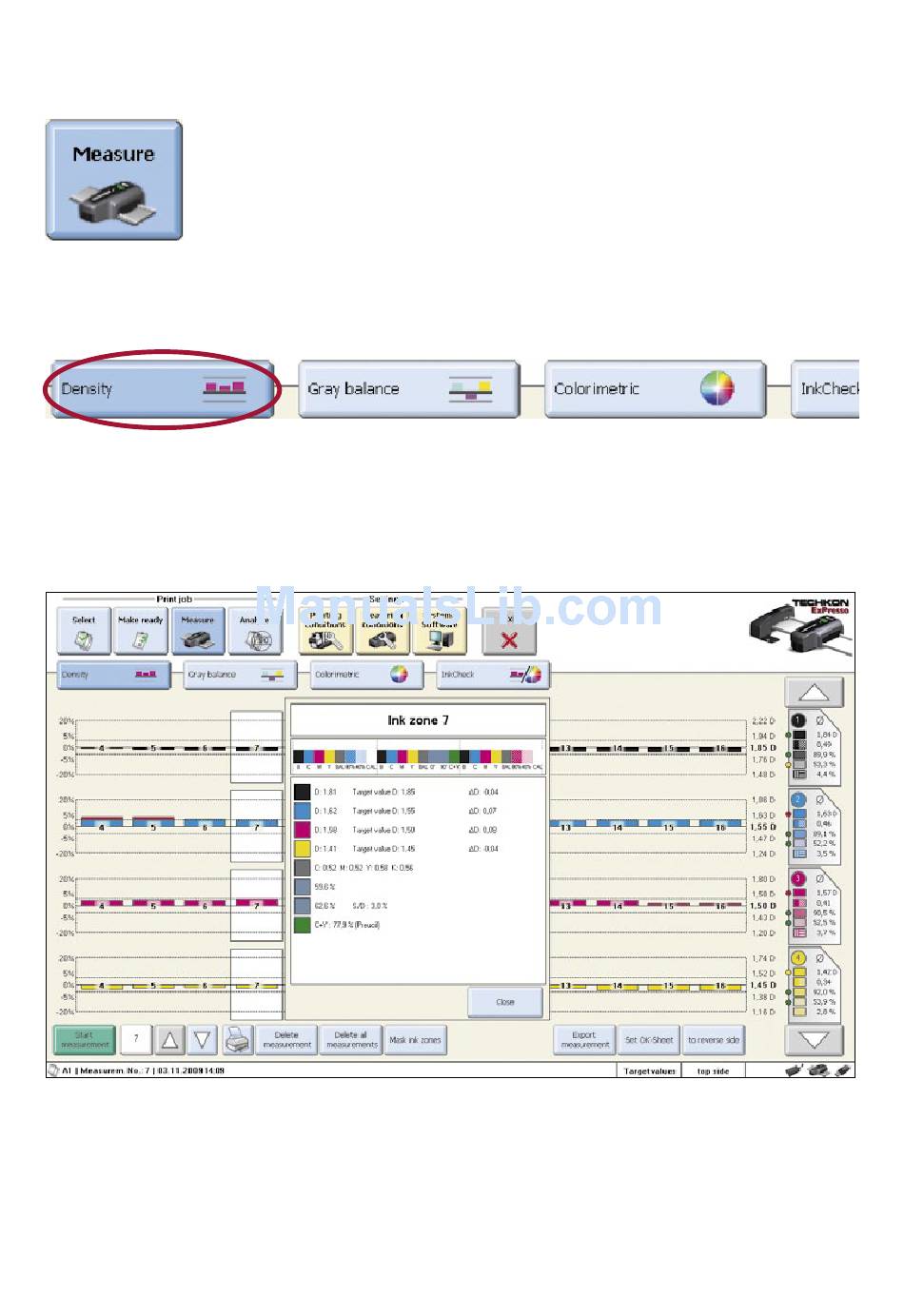

This screen will display all relevant information after a scan measurement. The scan
measurement can be started by pressing either the green measurement button on
the device or the "Start measurement" button in the left lower section of the screen.
1.
3.
2.
1. Detailed information for every ink zone by pointing on the bar graph.
2. Measurement values out of tolerance will be marked with red top.
3. This section displays in detail the average values of the measurement parameters of the
single printing units.
