"ISO-report single measurement" includes two sections: DE* a*b* -solid density and
dot gain. The dot gain is documented for 40 % and 80 % and the midtone spread is
visualized graphically.
1. Green dots indicate that the values are within tolerance
2. Display of the color gamut
3. Tonal % curves
4. Selection of measurement to be analyzed
5. Function "Mask ink zone" (see p. 50)
6. Switch between top side and reverse side (if available)
7. Prints reports

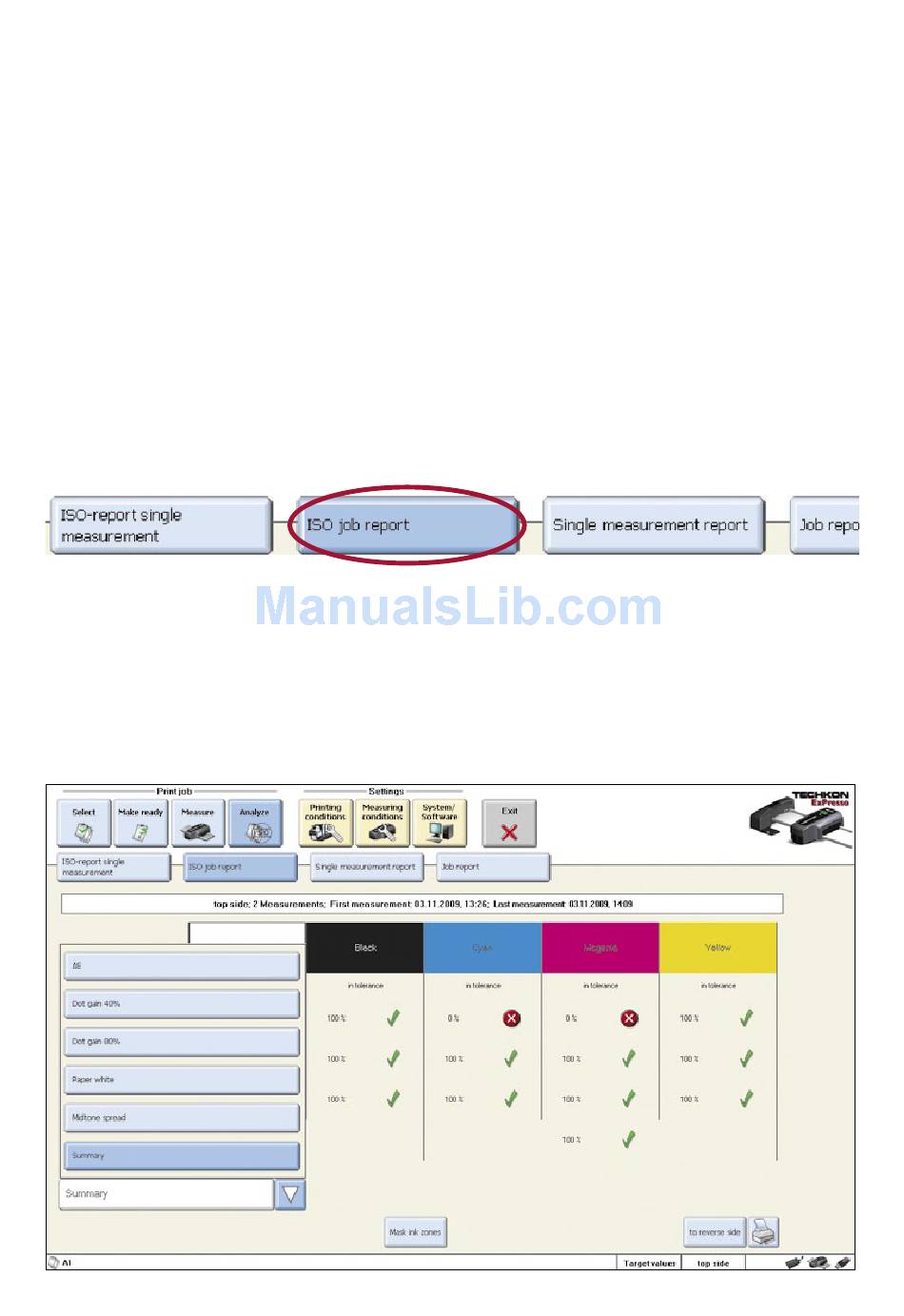

Analyze – ISO job report (ExPresso Pro)
The job report according to the ISO standard allows the documentation of the whole
printing process during the entire print job.
You can choose between a summary (1.) and the display of detailed reports of single
parameters, which you can select from the pull-down-window in the lower left cor-
ner of the menu window.
1.
