Techkon SpectroDrive Manual page 50

4. These buttons can optionally delete the current measurement or all measurements of a print
job.

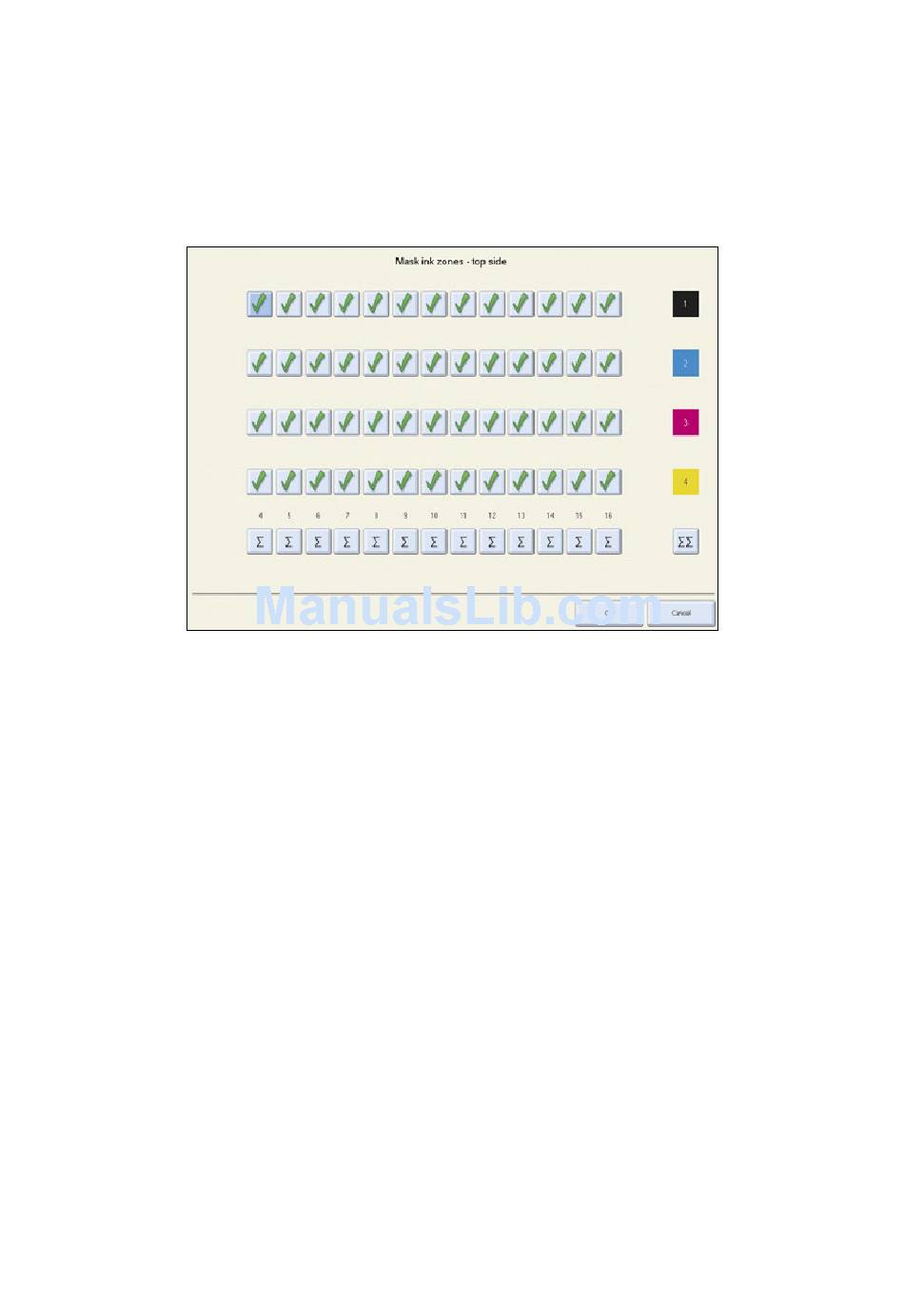

5. The button "Mask ink zones" opens a window, where optionally single inks within the ink
zones or complete ink zones can be masked. Please note that the masked ink zones will not be
taken into account for the calculation of the report statistics.
6. "Export measurement" starts the export into another application (see p. 37).
7. "Set OK-sheet", defines the OK-sheet, which is set instead of the target set.
When setting the OK-sheet, it will be numbered to the corresponding measurement and will
be displayed in the lower status line. Now the button switches to "Delete OK-Sheet" and
serves for this function.
8. "To top side" respectively "to reverse side" switches between top- and reverse-printing, if a
press with a reversing after a printing unit has been selected.
Page 50 Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
