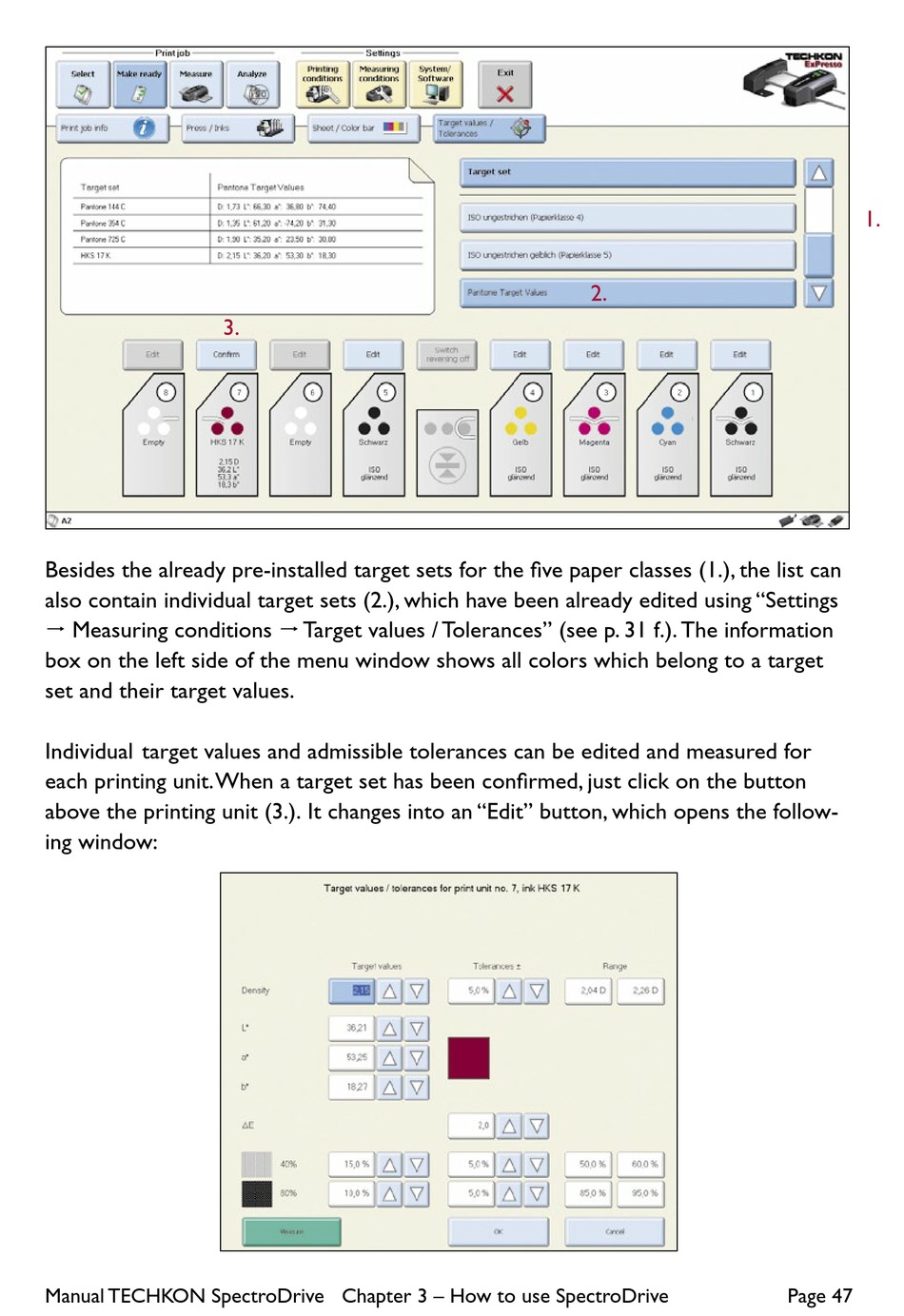

Techkon SpectroDrive Manual page 47

1.
2.
3.
Besides the already pre-installed target sets for the five paper classes (1.), the list can
also contain individual target sets (2.), which have been already edited using "Settings
 Measuring conditions  Target values / Tolerances" (see p. 31 f.). The information
box on the left side of the menu window shows all colors which belong to a target
set and their target values.
Individual target values and admissible tolerances can be edited and measured for
each printing unit. When a target set has been confirmed, just click on the button
above the printing unit (3.). It changes into an "Edit" button, which opens the follow-
ing window:
Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive Page 47
