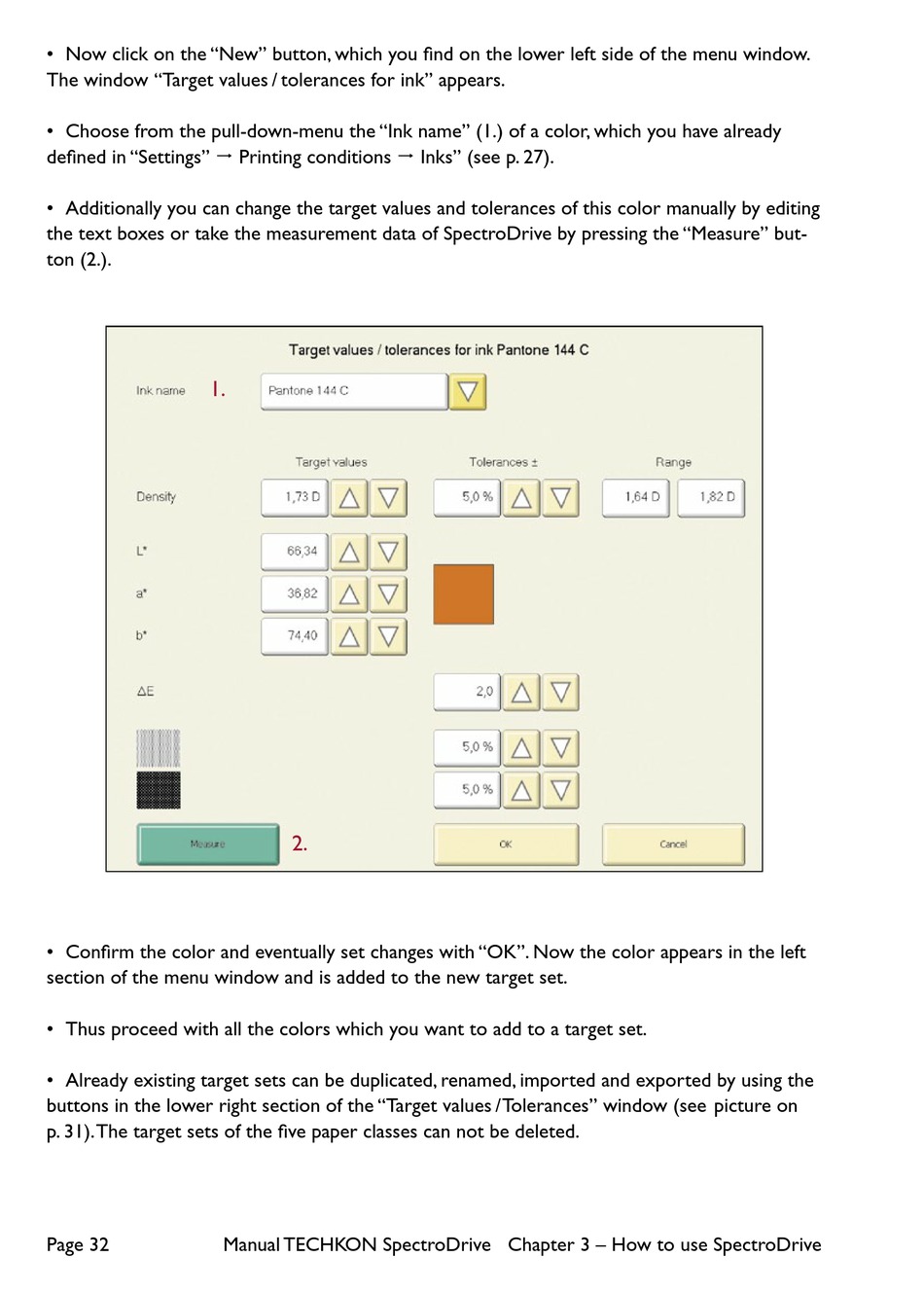

Techkon SpectroDrive Manual page 32

• Now click on the "New" button, which you find on the lower left side of the menu window.
The window "Target values / tolerances for ink" appears.
• Choose from the pull-down-menu the "Ink name" (1.) of a color, which you have already
defined in "Settings"  Printing conditions  Inks" (see p. 27).
• Additionally you can change the target values and tolerances of this color manually by editing
the text boxes or take the measurement data of SpectroDrive by pressing the "Measure" but-
ton (2.).
1.
2.
• Confirm the color and eventually set changes with "OK". Now the color appears in the left
section of the menu window and is added to the new target set.
• Thus proceed with all the colors which you want to add to a target set.
• Already existing target sets can be duplicated, renamed, imported and exported by using the
buttons in the lower right section of the "Target values / Tolerances" window (see picture on
p. 31). The target sets of the five paper classes can not be deleted.
Page 32 Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
