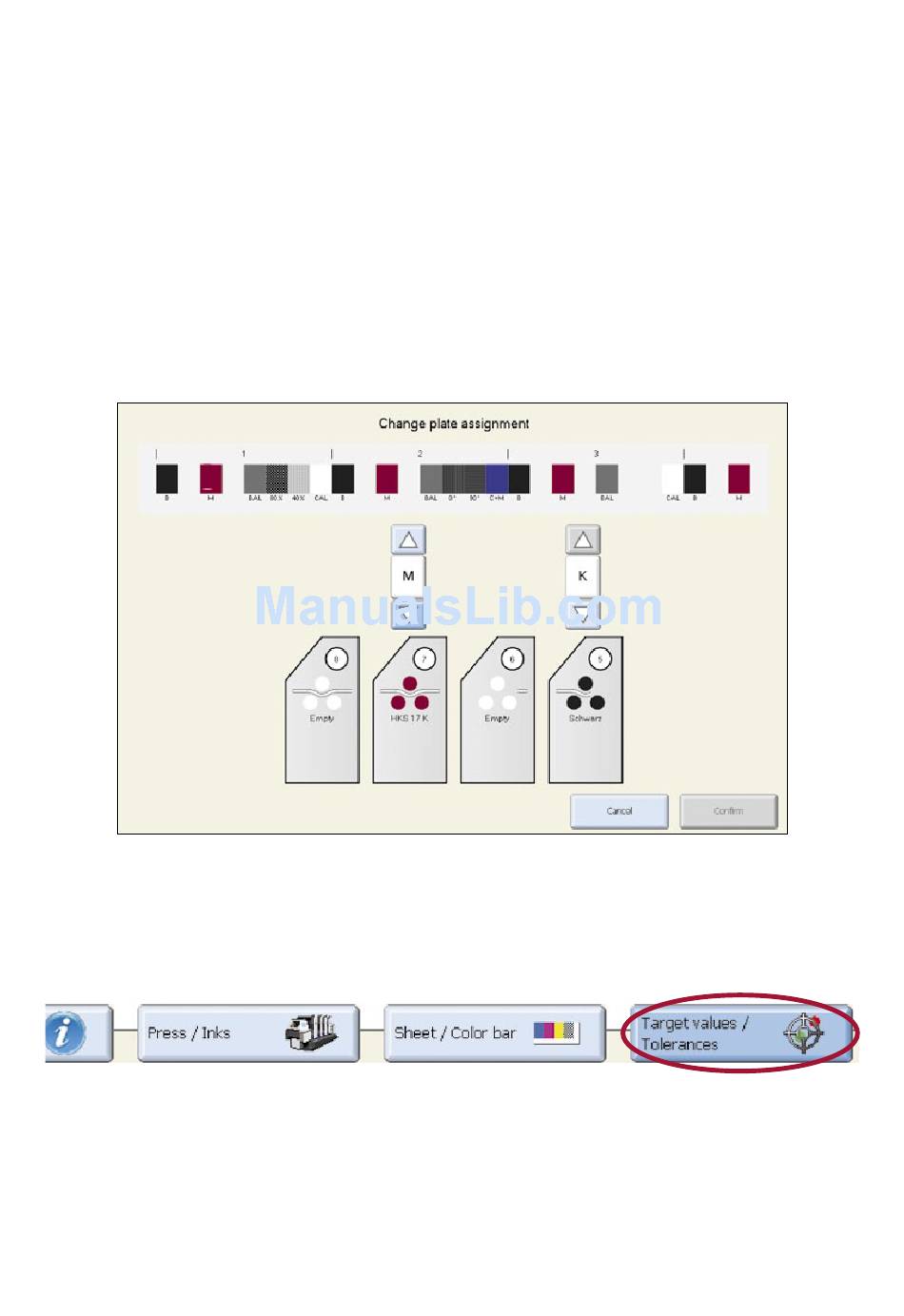

The button "Change plate assignment" (4. on p. 45) opens a new window, where the
assignment of a printing plate in regard to a printing unit can be defined individually.
A change of the plate assignment is always necessary, when the order of the inks has
been changed or if spot colors are used.
In the following example it has been necessary to assign the ink Magenta (1.) to the
spot color HKS 17 K in printing unit no. 7. Thus the color bar will feature a measure-
ment patch at the right position, which guarantees a proper measurement and analyze
of the color bar.
1.
Make ready – Target values / Tolerances
As the printing units have been filled with ink, now they are assigned with target and
tolerance values; preferably tolerance sets according to the printing standard ISO
12647 for the paper classes 1 – 5, which are already pre-installed.
