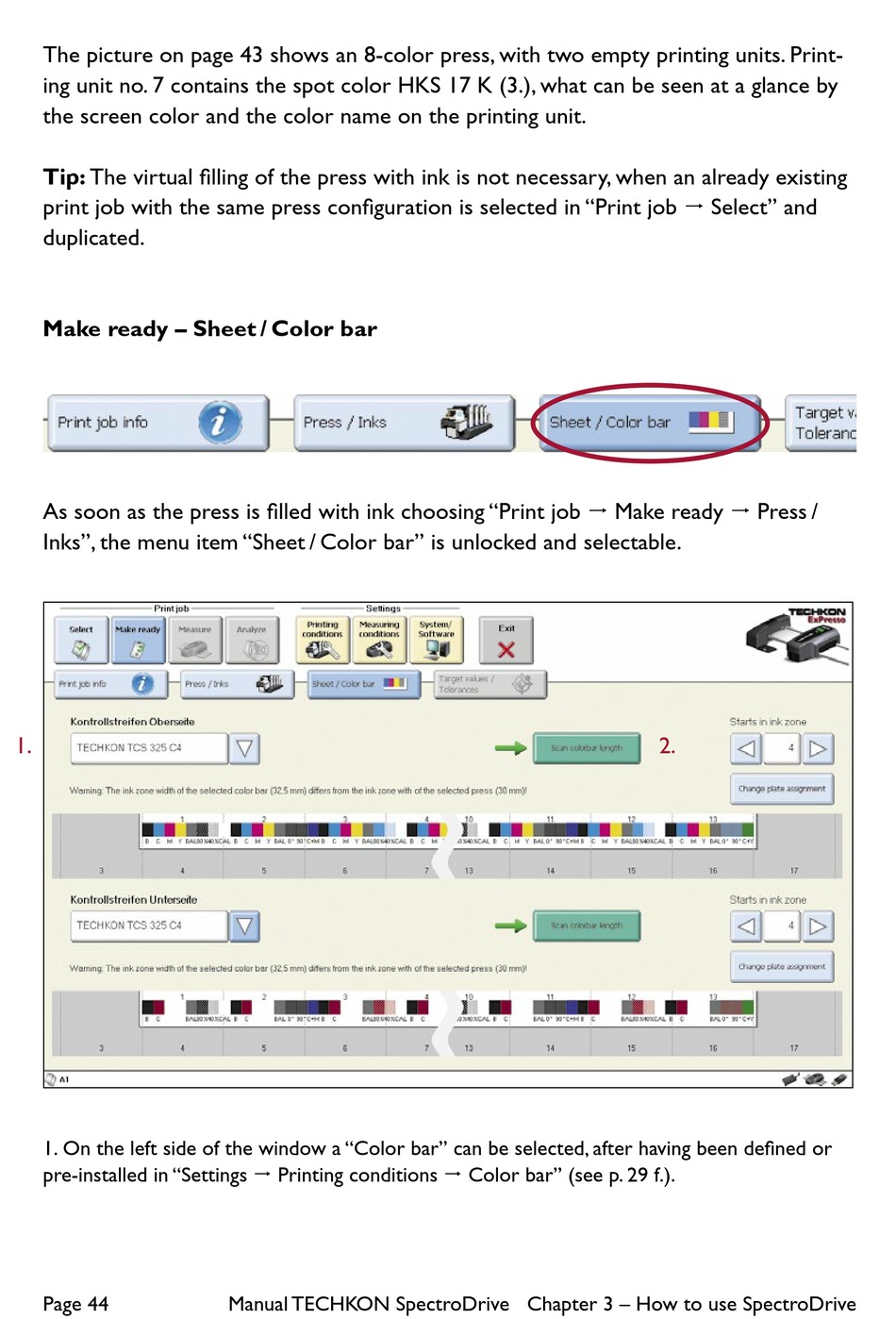

Techkon SpectroDrive Manual page 44

The picture on page 43 shows an 8-color press, with two empty printing units. Print-
ing unit no. 7 contains the spot color HKS 17 K (3.), what can be seen at a glance by
the screen color and the color name on the printing unit.
Tip: The virtual filling of the press with ink is not necessary, when an already existing
print job with the same press configuration is selected in "Print job  Select" and
duplicated.
Make ready – Sheet / Color bar
As soon as the press is filled with ink choosing "Print job  Make ready  Press /
Inks", the menu item "Sheet / Color bar" is unlocked and selectable.
1. 2.
1. On the left side of the window a "Color bar" can be selected, after having been defined or
pre-installed in "Settings  Printing conditions  Color bar" (see p. 29 f.).
Page 44 Manual TECHKON SpectroDrive Chapter 3 – How to use SpectroDrive
