Chapter 2
Installation of SpectroDrive and the software ExPresso 3

2.1 Assembly of SpectroDrive

Page 10

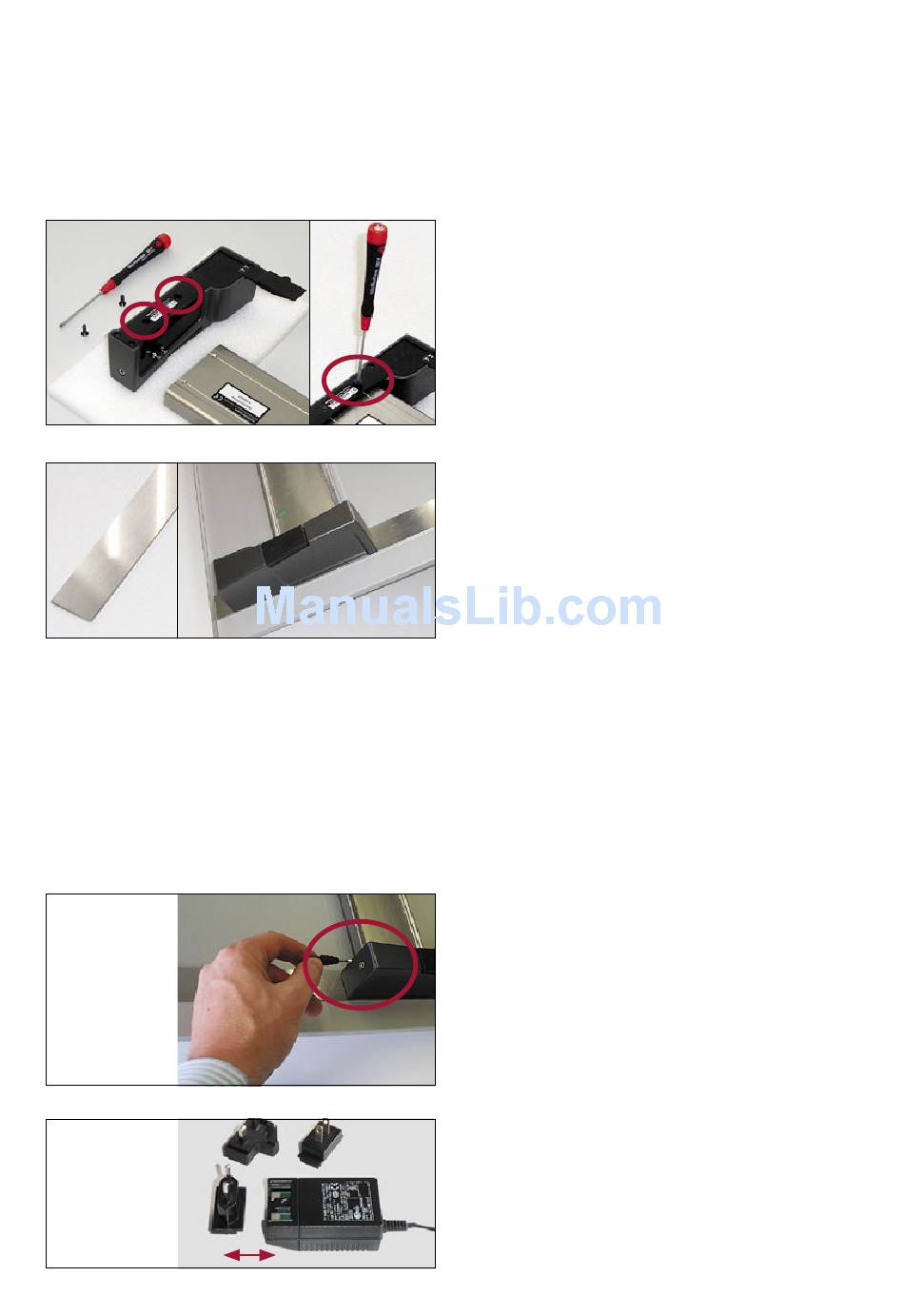

• Connect the horizontal track with the left
and right holder as shown on the images.
Before placing the holders upside down, put
a soft material underneath to avoid scratches.
Before tightening the first screw, insert the
second screw and assure that the holder is
correctly aligned.
• The two vertical bars are attached ver-
tically at the right and left side on a flat
table. Before adhering them, it is important
to check that they are parallel and have the
right distance to each other. We advise to
mark the position with a pencil first. Now
attach the two vertical bars, which have self-
adhesive tape on the backside to the table or
console. The surface has to be flat and with
uniform color. Preferably the table will have a
lay-on edge for positioning the printed sheet.
Assure, that the vertical bars are parallel and
well aligned in order to hold the left and right
holder which will attach magnetically to the
vertical bars.
• Connect the plug of the AC adapter with
the charging console.
The AC adapter can be used universally for
100 – 240 V. Use only the original TECHKON
SpectroDrive AC adapter!
(Part no.: FRIWO FW 75550/08).
• There are three adapter plugs for different
countries. For changing, just pull the plug and
push in the new one. Make sure that the plug
adapter has a tight fit.
Manual TECHKON SpectroDrive Chapter 2 – Installation
