CI801 FCI

The FCI needs to be connected to the PROFIBUS-DPV1 and have an address
selected. It is also connected to a 24 V d.c. power source to provide power to the I/O
Station. Also refer to
how to estimate the fieldbus and power loading of each I/O station configuration.

Address Switches

The CI801 is equipped with two rotary switches used as station address selectors for
PROFIBUS connection. The station address can be set in the range of 01 to 99.
There can be up to 32 stations per PROFIBUS-DPV1 segment.
front panel of the CI801.

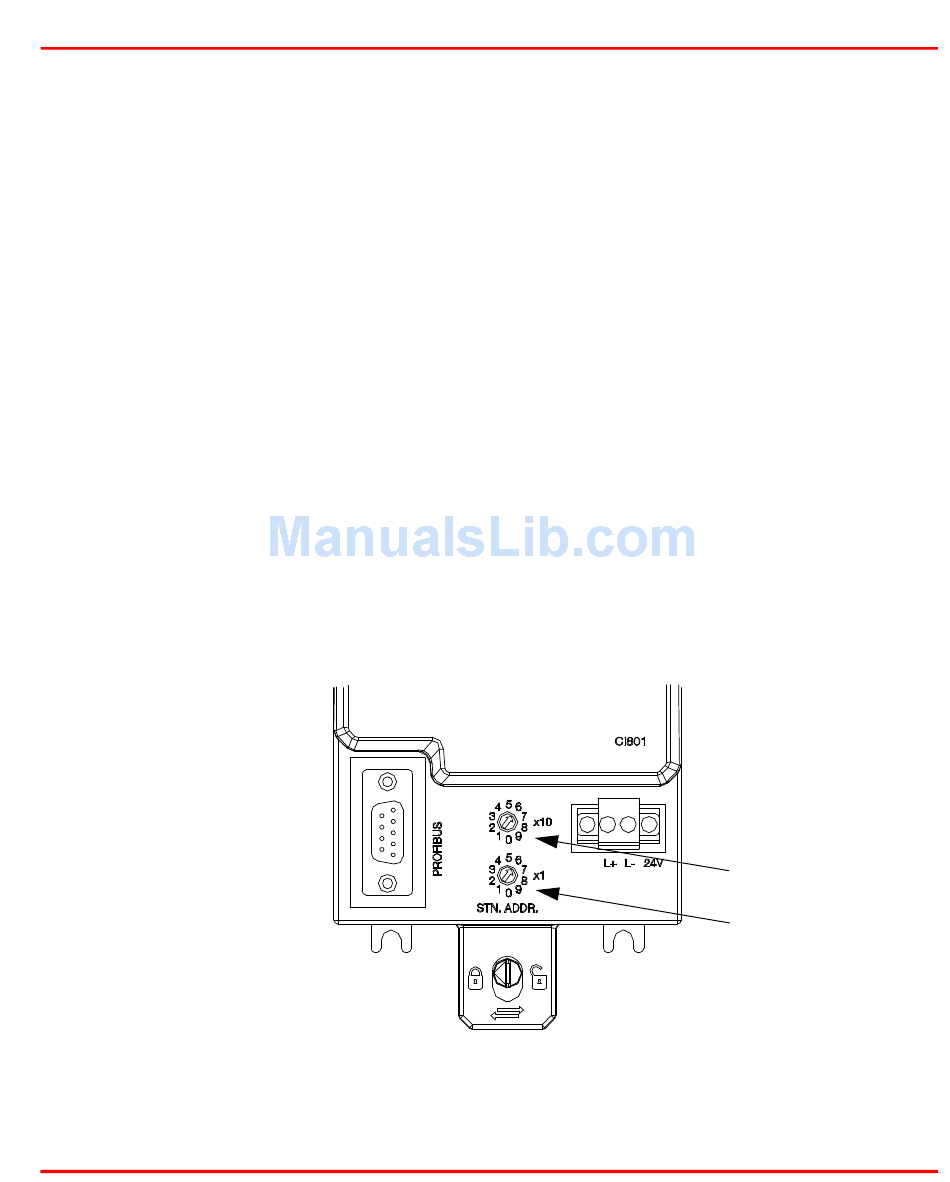

Figure 9. CI801 Front Panel
3BSE020926-600

Section 3 Configuration

Configuration and Performance on page 40 for information on
Figure 9 shows the
Address
Switch #1
Address
Switch #2
29
