Connectors
6.6

USB Host/Device

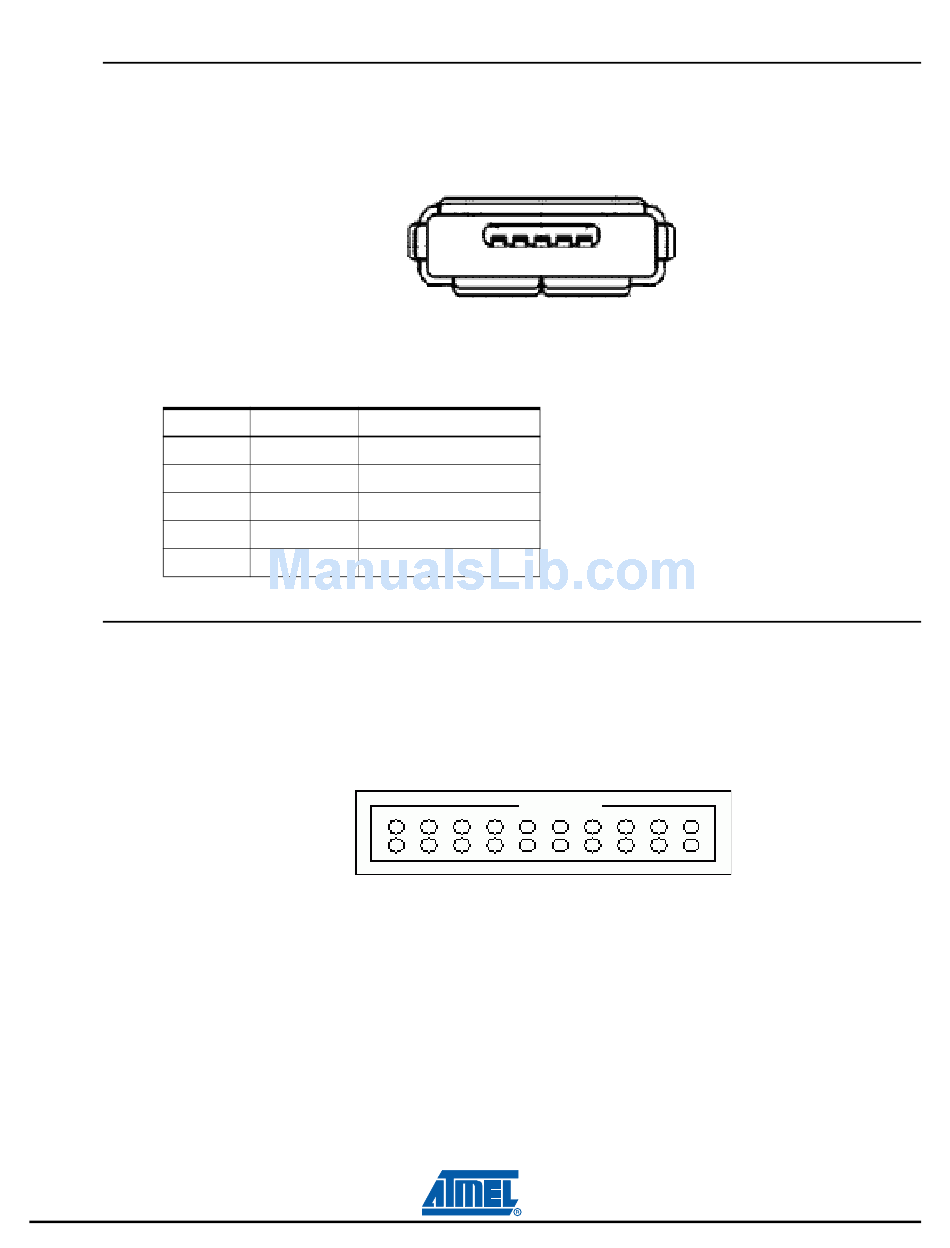

Connector J14 is the USB Host/Device connector.
Figure 6-6.
Table 6-6. USB Host/Device MicroAB Connector J14 Signal Descriptions
Pin
1
2
3
4
5
6.7

JTAG Debugging Connector

Connector J13 is the JTAG/ICE connector.
A SAM-ICE connector is a 20-way Insulation Displacement Connector (IDC) keyed box header (2.54 mm
male) that mates with IDC sockets mounted on a ribbon cable.
Figure 6-7.
6-4
6481B–ATARM–27-Nov-09
USB Host/Device Micro AB connector J14
Mnemonic Signal description
Vbus 5v power
DM Data minus
DP Data plus
ID On the Go Identification
Gnd Ground
JTAG/ICE Connector J13
AT91SAM9G45-EKES User Guide
