Atmel AT91SAM9263-EK User Manual

Evaluation board
Hide thumbs Also See for AT91SAM9263-EK:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version

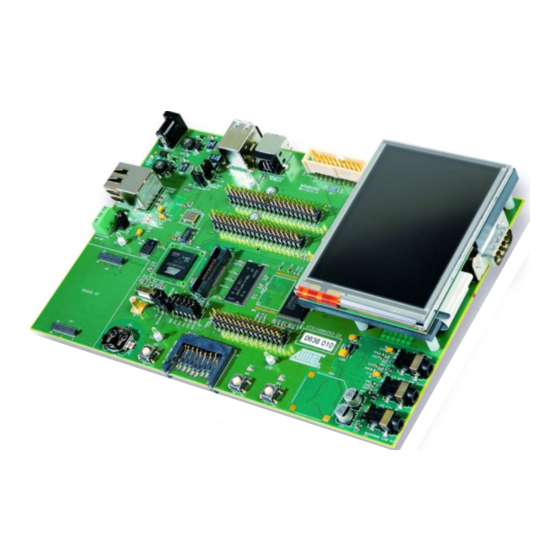

AT91SAM9263-EK Evaluation Board
....................................................................................................................
User Guide
6325D–ATARM–26-Aug-09

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT91SAM9263-EK and is the answer not in the manual?

Questions and answers

Related Manuals for Atmel AT91SAM9263-EK

Summary of Contents for Atmel AT91SAM9263-EK

  • Page 1 AT91SAM9263-EK Evaluation Board ........................User Guide 6325D–ATARM–26-Aug-09...

  • Page 3: Table Of Contents

    Section 1 Overview ........................1-1 Scope..........................1-1 Deliverables ........................1-1 AT91SAM9263-EK Evaluation Board ................1-1 Section 2 Setting Up the AT91SAM9263-EK Board..............2-1 Electrostatic Warning ......................2-1 Requirements........................2-1 Layout ..........................2-1 Powering Up the Board...................... 2-4 Backup Power Supply......................2-4 Getting Started........................
  • Page 4 BMS Signal Sampling ......................6-1 Section 7 Errata.......................... 7-1 JTAGSEL S1 Footprint Selector ..................7-1 PIO Usage ......................... 7-1 TWI line pull-ups for Fast Mode operation ................. 7-1 Section 8 Revision History ......................8-1 Revision History ......................... 8-1 AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 5: Overview

    Section 1 Overview Scope The AT91SAM9263-EK evaluation kit enables the evaluation of and code development for applications running on an AT91SAM9263. This guide focuses on the AT91SAM9263-EK board as an evaluation platform. Deliverables The AT91SAM9263-EK package contains the following items:...
  • Page 6 Two user input push buttons One Wakeup input push button One reset push button ® One DataFlash /SD/SDIO/MMC card slot One SD/SDIO/MMC card slot One Lithium Coin Cell Battery Retainer for 12 mm cell size AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 7: Setting Up The At91Sam9263-Ek Board

    Avoid touching the component pins or any other metallic element. Requirements In order to set up the AT91SAM9263-EK evaluation board, the following items are needed: the AT91SAM9263-EK evaluation board itself. AC/DC power adapter (12V at 1A), 2.1 mm by 5.5 mm...
  • Page 8 Setting Up the AT91SAM9263-EK Board Figure 2-1. AT91SAM9263-EK Layout - Top View AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 9 Setting Up the AT91SAM9263-EK Board Figure 2-2. AT91SAM9263-EK Layout - Bottom View AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 10: Powering Up The Board

    Setting Up the AT91SAM9263-EK Board Powering Up the Board The AT91SAM9263-EK requires 12V DC. DC power is supplied to the board via the 2.1 mm by 5.5 mm socket J1. Coaxial plug center positive standard. Backup Power Supply The user has the possibility to plug a battery (3V Lithium Battery CR1225 or equivalent) in order to per- manently power the backup part of the device.

  • Page 11: At91Sam9263-Ek Block Diagram

    Setting Up the AT91SAM9263-EK Board AT91SAM9263-EK Block Diagram Figure 2-3. AT91SAM9263-EK Block Diagram AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 12: Board Description

    Image Sensor Interface – ITU-R BT. 601/656 External Interface, Programmable Frame Capture Rate – 12-bit Data Interface for Support of High Sensibility Sensors – SAV and EAV Synchronization, Preview Path with Scaler, YCbCr Format AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 13 – 160 Programmable I/O Lines Multiplexed with Up to Two Peripheral I/Os – Input Change Interrupt Capability on Each I/O Line – Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output One Part 2.0A and Part 2.0B-compliant CAN Controller AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 14 – Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel – Double PWM Generation, Capture/Waveform Mode, Up/Down Capability One Four-channel 16-bit PWM Controller (PWMC) One Two-wire Interface (TWI) ® – Master Mode Support, All Two-wire Atmel EEPROMs Supported ® IEEE 1149.1 JTAG Boundary Scan on All Digital Pins Required Power Supplies –...

  • Page 15: At91Sam9263 Block Diagram

    Board Description AT91SAM9263 Block Diagram Figure 3-1. AT91SAM9263 Block Diagram AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 16: Memory

    128 Kbytes of Internal ROM 80 Kbytes of Internal single-cycle access high-speed SRAM 16 Kbytes of Internal single-cycle access high-speed SRAM 8 Mbytes of Atmel NOR Flash (not populated) 64 Mbytes of SDRAM memory 4 Mbytes of PSRAM (EBI1) 256 Mbytes of NANDFlash memory...

  • Page 17: Audio Stereo Interface

    One DataFlash/SD/SDIO/MMC card slot One SD/SDIO/MMC card slot All unused I/Os of the AT91SAM9263 are routed to peripheral extension connectors (J24 and J25). This allows the developer to add external hardware components or boards. AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 18: Pio Usage

    RTS0 VDDIOM1 PA29 CTS0 EBI1_D29 RS232 COM PORT (J15) CTS0 VDDIOM1 PA30 SCK0 EBI1_D30 LCD PANEL (Power Control In) PA30 as PCI VDDIOM1 PA31 DMARQ0 EBI_D31 TOUCH SCREEN CONTROLLER (MN19) PA31 as BUSY VDDIOM1 AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 19 PB18 SPI1_NPCS3 TIOB2 VDDIOP0 PB19 VDDIOP0 PB20 VDDIOP0 PB21 VDDIOP0 PB22 VDDIOP0 PB23 VDDIOP0 PB24 DMARQ3 VDDIOP0 PB25 VDDIOP0 PB26 VDDIOP0 PB27 PWM2 VDDIOP0 PB28 TCLK0 VDDIOP0 PB29 PWM3 VDDIOP0 PB30 VDDIOP0 PB31 VDDIOP0 AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 20 LCDD23 BLUE VDDIOP0 PC28 PWM0 TCLK1 VDDIOP0 PC29 PCK0 PWM2 USER'S LED2 CONTROL (DS2) PC29 or PWM2 VDDIOP0 PC30 DRXD SERIAL DEBUG PORT (J14) DRXD VDDIOP0 PC31 DTXD SERIAL DEBUG PORT (J14) DTXD VDDIOP0 AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 21 VDDIOM0 PD28 EBI0_D28 TPK12 EBI0 SDRAM DATA BUS VDDIOM0 PD29 EBI0_D29 TPK13 EBI0 SDRAM DATA BUS VDDIOM0 PD30 EBI0_D30 TPK14 EBI0 SDRAM DATA BUS VDDIOM0 PD31 EBI0_D31 TPK15 EBI0 SDRAM DATA BUS VDDIOM0 3-10 AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 22 ETXEN EBI1_RAS ETHERNET RMII (MN18) ETXEN VDDIOM1 PE29 EMDC EBI1_CAS ETHERNET RMII (MN18) EMDC VDDIOM1 PE30 EMDIO EBI1_SDWE ETHERNET RMII (MN18) EMDIO VDDIOM1 PE31 EF100 EBI1_SDA10 ETHERNET RMII (MN18) PE31 as IRQ VDDIOM1 AT91SAM9263-EK Evaluation Board User Guide 3-11 6325D–ATARM–26-Aug-09...

  • Page 23: Configuration

    Enables the use of the SERIAL EEPROM SDA (PB4) Enables the use of the DBGU TXD signal (PC31) Enables the use of the DBGU RXD signal (PC30) Enables the use of the USB CNX detection (PA25) AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 24 2. AT91SAM9263 ETM signals [TPK0 - TPK15] are multiplexed with EBI0 signals [EBI0_D16 - EBI0_D31]. AT91SAM9263-EK EBI0 signals [EBI0_D16 - EBI0_D31] are connected to an SDRAM device (part MN7).

  • Page 25: Schematics

    Section 5 Schematics Schematics This section contains the following schematics: Power Supply AT91SAM9263 EBI0 Memory EBI1 Memory Serial Memory Audio AC97 Serial Interfaces Ethernet LCD and ISI Expansion AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 26: Ebi0 Memory

    DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE PA17 PA30 (PCI) PB30 PC30 DRXD PD30 PE30 EMDIO AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET CTRL2 PA16 PA31 (BUSY) PB31 PC31 DTXD PD31...
  • Page 27 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET POWER SUPPLY POWER SUPPLY POWER SUPPLY This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 28 SHDN MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE NRST AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET NRST AT91SAM9263 AT91SAM9263 AT91SAM9263 WAKE UP This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 29 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET EBI0 MEMORY EBI0 MEMORY EBI0 MEMORY This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 30 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET EBI1 MEMORY EBI1 MEMORY EBI1 MEMORY This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.

  • Page 31: Serial Memory

    MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET SERIAL MEMORY SERIAL MEMORY SERIAL MEMORY This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.

  • Page 32: Audio Ac97

    MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AGND_AC97 AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET AUDIO AC97 AUDIO AC97 AUDIO AC97 This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.

  • Page 33: Serial Interfaces

    MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET SERIAL INTERFACES SERIAL INTERFACES SERIAL INTERFACES This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 34 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET ETHERNET ETHERNET ETHERNET This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 35 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET LCD & ISI LCD & ISI LCD & ISI This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 36 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE AT91SAM9263-EK AT91SAM9263-EK AT91SAM9263-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET EXPANSION EXPANSION EXPANSION This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.

  • Page 37: At91Sam9263-Ek Evaluation Board User Guide

    AT91SAM9263 microcontroller samples the BMS signal one Slow Clock (SLCK) cycle after the NRST signal rising (See Figure 6-1). As a result, the BMS signal is sampled at a Low Level and the AT91SAM9263 boots out of the external EBI device connected to NCS0. AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 38 ROM: 1. Close J2 to force power on 2. Open J5 (Boot Mode Select Jumper) 3. Power on the board 4. Remove and replace J4-1 (VDDBU/VDDBACKUP Jumper) AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...
  • Page 39 In order to use the TWI in Fast Mode (up to 400 Kbits/s), the default 10 KΩ resistors R43 and R44 should be replaced by smaller values (e.g., 2.2 KΩ). Note that there is no need to change the pull-up resistors if the TWI is used in Standard Mode (up to 100 Kbits/s). AT91SAM9263-EK Evaluation Board User Guide 6325D–ATARM–26-Aug-09...

  • Page 40: Revision History

    Table 3-5, “PIO Controller E,” on page 3-11 and some Peripheral B 6279C labels from Table 3-5, “PIO Controller E,” on page 3- New schematic Sheet 3/11 on AT91SAM9263-EK. 4371 Added Section Issue not applicable: GPS signals shall only be 4674 removed from Rev B and later versions.
  • Page 41 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI- TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY...
