44
The Port Transmit and Port Receive screens provide live status information for the data port by displaying
transmit or receive activity in ASCII. See Appendix C, "ASCII Conversion" for specific ASCII symbol
conversion.

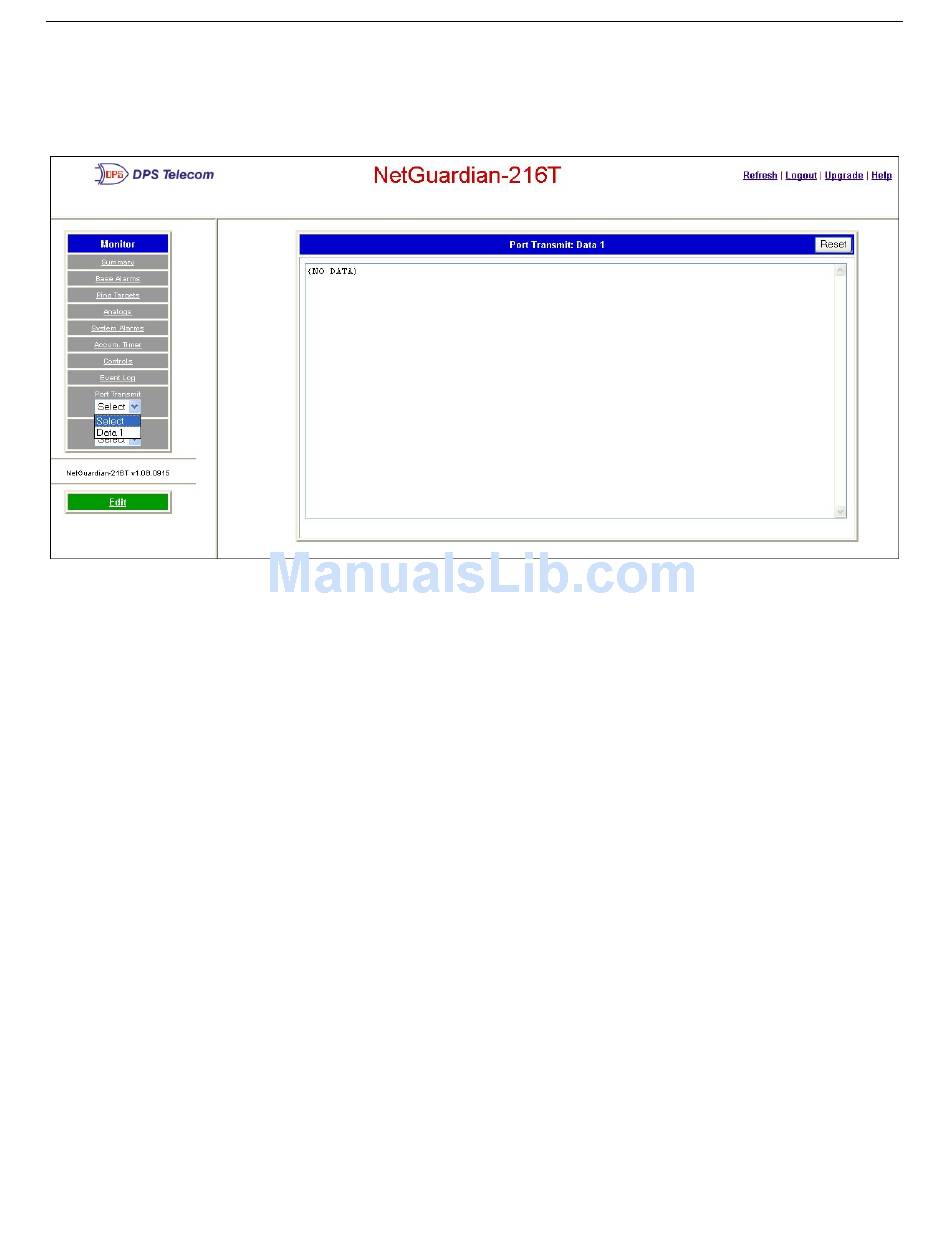

Fig. 3.8.2. To view the data being transmitted to the connected equipment, select Data 1 from the Monitor menu
> Port Transmit drop-down menu
