2.5.1

Text Paging Setup

Text pages can receive information including the point addresses of alarms, the alarm description, time of the
alarm, and state (alarm or clear). The text pages may be viewed using a terminal such as HyperTerminal.
Use the following steps to configure the text paging settings:
1. From the Edit menu > Notification screen, select an ID number to use (refer to Figure 2.5.1).
Note: Pager IDs are used in the alarm provisioning screen to designate the primary and secondary
person/device being paged when an alarm condition occurs or clears.
2. Under the Type column select Text from the drop-down menu (see Figure 2.5.1).
3. Enter the phone number of the text paging device under the Phone/Domain heading.
4. Set the pager data rate (i.e. 300, 1200, 2400 or 9600). The default baud is 1,200.
5. Select a pager word format (e.g Data bits: 7 or 8, Parity: none (N), even (E) or odd (O), and Stop Bits: 1).
The default setting is 7, Even,1.
2.5.2

Email Notification Setup

The email pager provides alarm notification via email.
Use the following steps to configure the email notification settings:
1. From the Edit menu > Notification screen, select an ID number to use see (Figure 2.5.1).
Note: Pager IDs are used in the alarm provisioning screen to designate the primary and secondary
person/device being paged when an alarm condition occurs or clears.
2. Under the Type column, select Email from the drop-down menu (see Figure 2.5.1).
3. Enter the domain name of the email address under the Phone/Domain heading. This is the portion of an
email address after the @ symbol in name@domain.com.
Note: There cannot be any spaces in the domain name.
4. Enter the email recipient's user name under the PIN/Rcpt/Port heading. This is the portion of an email
address before the @ symbol in the name@domain.com.
Note: There cannot be any spaces in the recipient's user name
5. Enter the IP address of the SMTP mail server in the IPA field.
6. Click Submit Data to save your email notification settings.
7. Click on the System link. If you have not done so, set up the "from" address sent in email messages sent

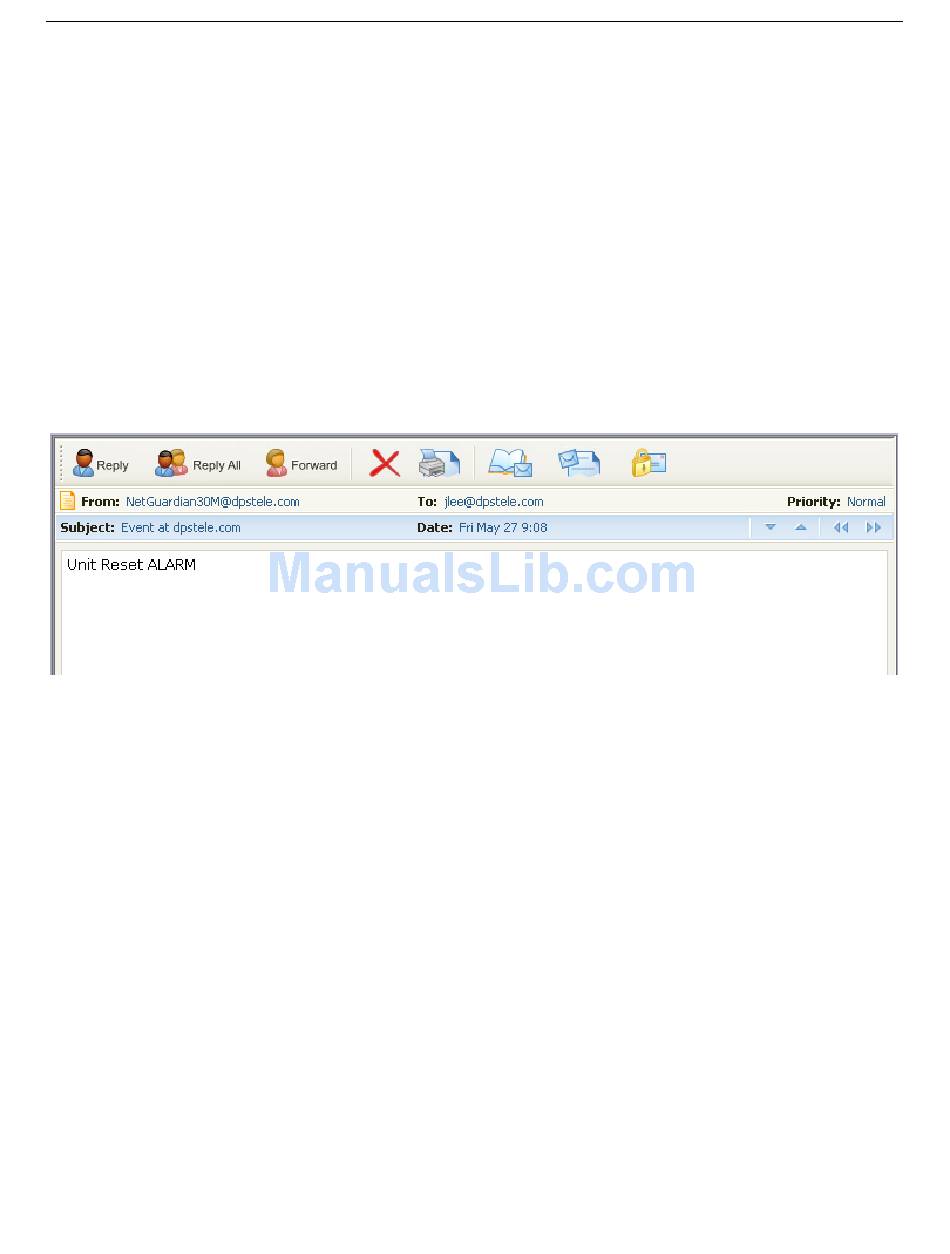

Fig. 2.5.2.1. Email notification from the NetGuardian
