2.13.3.3 Normal Mode

Relay energized state is similar to alarm point polarity. A normal control is latched when the relay state is opr ,
and open when the relay state is rls . Conversely, an inverted control is latched when the relay state is rls, and
open when the relay state is opr .
In normal mode, the description does not follow formatting for echoed or ORed modes. Example: My Control :
Normal relay operation (see Figure 2.13.2).

2.13.4 Override Default Relay Momentary Time Using Event Qualification

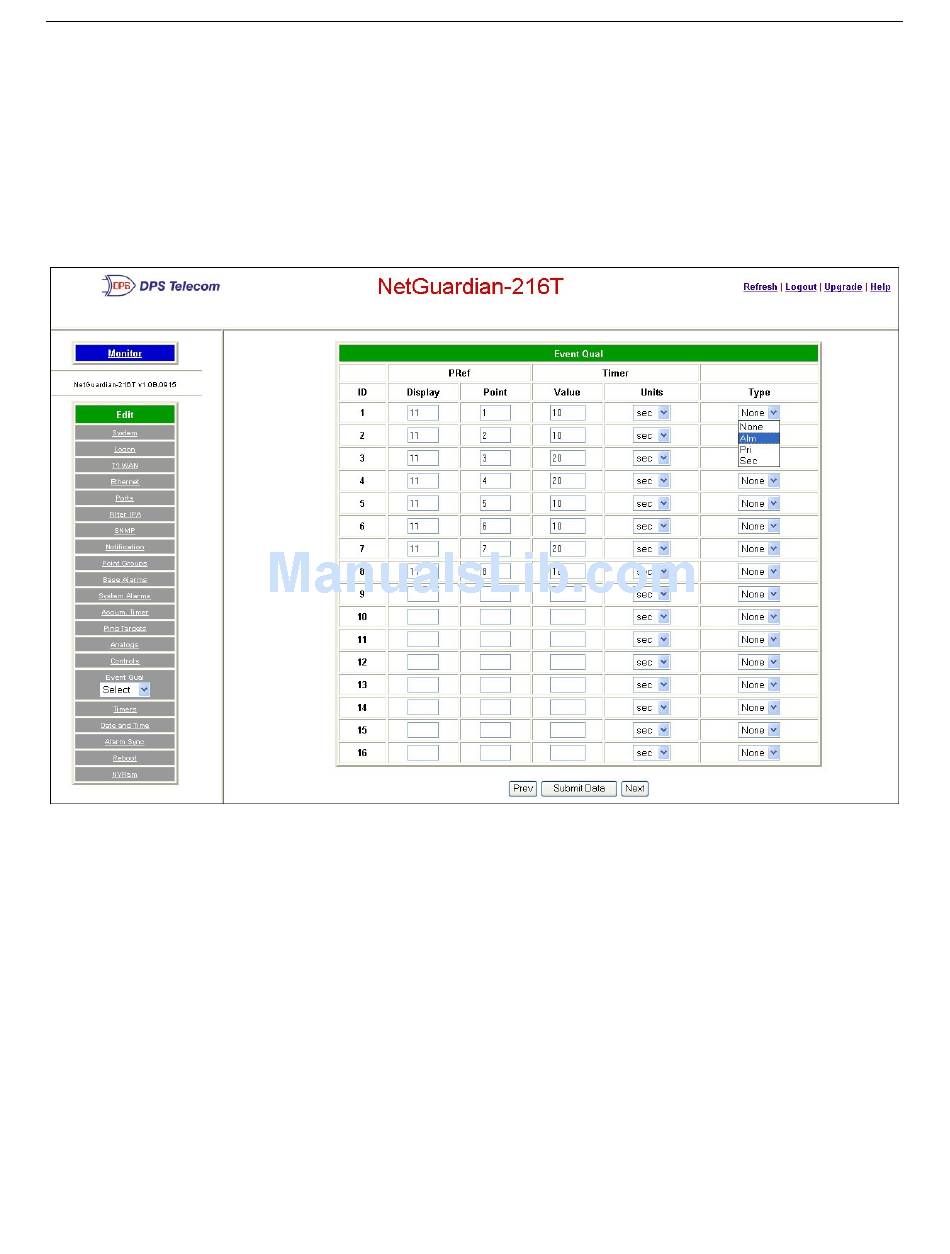

Fig. 2.13.4. Using Event Qualification to override default relay momentary time
Use the following steps to override default relay momentary time, using the NetGuardian's Event Qualification
feature:
1. From the Edit menu click on the Event Qual drop-down menu and select the appropriate group.
In the Display text box, type 11 .
2.
In the Point
ext box, type the number of the relay you would like to change.
3. t
In the Value box, type the amount of time. You may not select more than 127 units.
4.
In the Units box, select the appropriate units (seconds, minutes, or hours).
5.
In the Type box, select Alm .
6.
7. Click Submit Data to save the changes.
