Configuring Port Parameters

The Edit menu > T1 WAN screen allows you to configure the T1 WAN, Ethernet, craft port and data port
settings.
2.4.1

T1 WAN

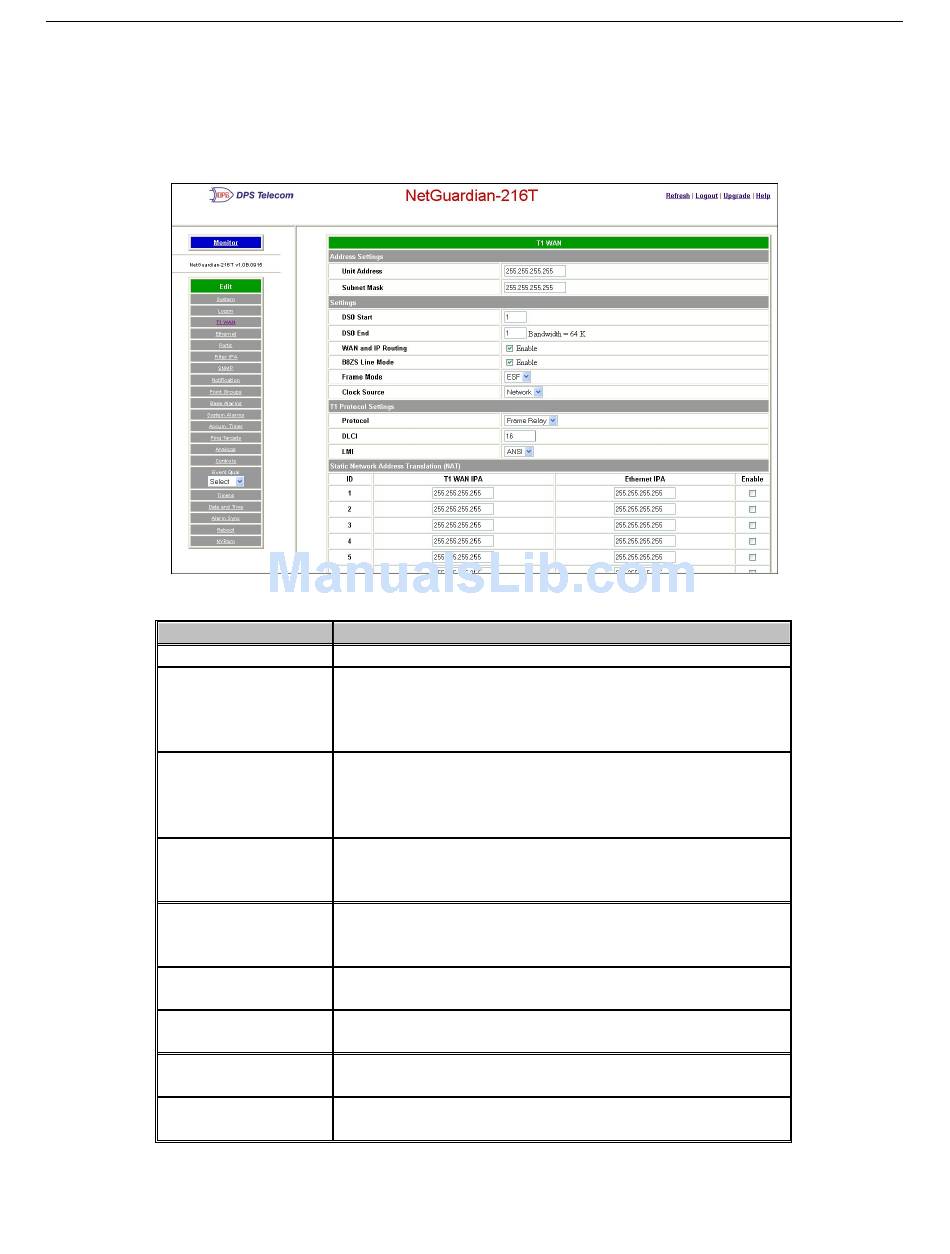

Fig. 2.4.1. T1 WAN port configuration is accomplished from the WAN menu (Frame Relay)
Field
IP Address
Subnet Mask
DS0 Start
DS0 End
Enable WAN and
IP Routing
Enable B8ZS Line
Mode
Frame Mode
Clock Source
Protocol
Description
WAN address for the NetGuardian.
The Subnet mask is a road sign to the NetGuardian
telling it whether your packets should stay on your local
network or be forwarded somewhere else on a wide area
network.
The default DS0 value is 1 (64 kbps), but the NetGuardian
supports up to 24 DS0 channels (24 DS0s=1.536 mbps).
Note: The value entered here must correspond to the DS0
end value.
The default DS0 value is 1 (64 kbps), but the
NetGuardian supports up to 24 DS0 channels (24
DS0s=1.536 mbps).
The Enable WAN and IP Routing box should be
checked for routing packets between T1 WAN and the
Ethernet hub.
The Enable B8ZS Line Mode box should be checked for
B8ZS line mode operation (normal).
Default frame mode is ESF, but you have the option of
switching to D4.
Default clock is network, but you have the option of
switching to an internal clock source.
The NetGuardian's T1 protocol is Frame Relay or PPP.
(See Fig. 2.4.2)
