3
Web Server Monitoring
The Web browser allows you to do full-system monitoring for your NetGuardian, which includes all alarms, ping
information, relays, analogs and system status. To connect to the NetGuardian from your Web browser, you must
know it's IP address or domain name if it has been registered with your internal DNS. Enter it in the address bar
of your Web browser (it may be helpful to bookmark the logon page to simplify access). After connecting to the
NetGuardian's IP address, enter your password and click Submit (factory default password is dpstelecom).
Note: If the Edit menu does not appear in the left frame after logging on, it means that another station has
already logged on as the primary user.
3.1
Alarm Summary Window

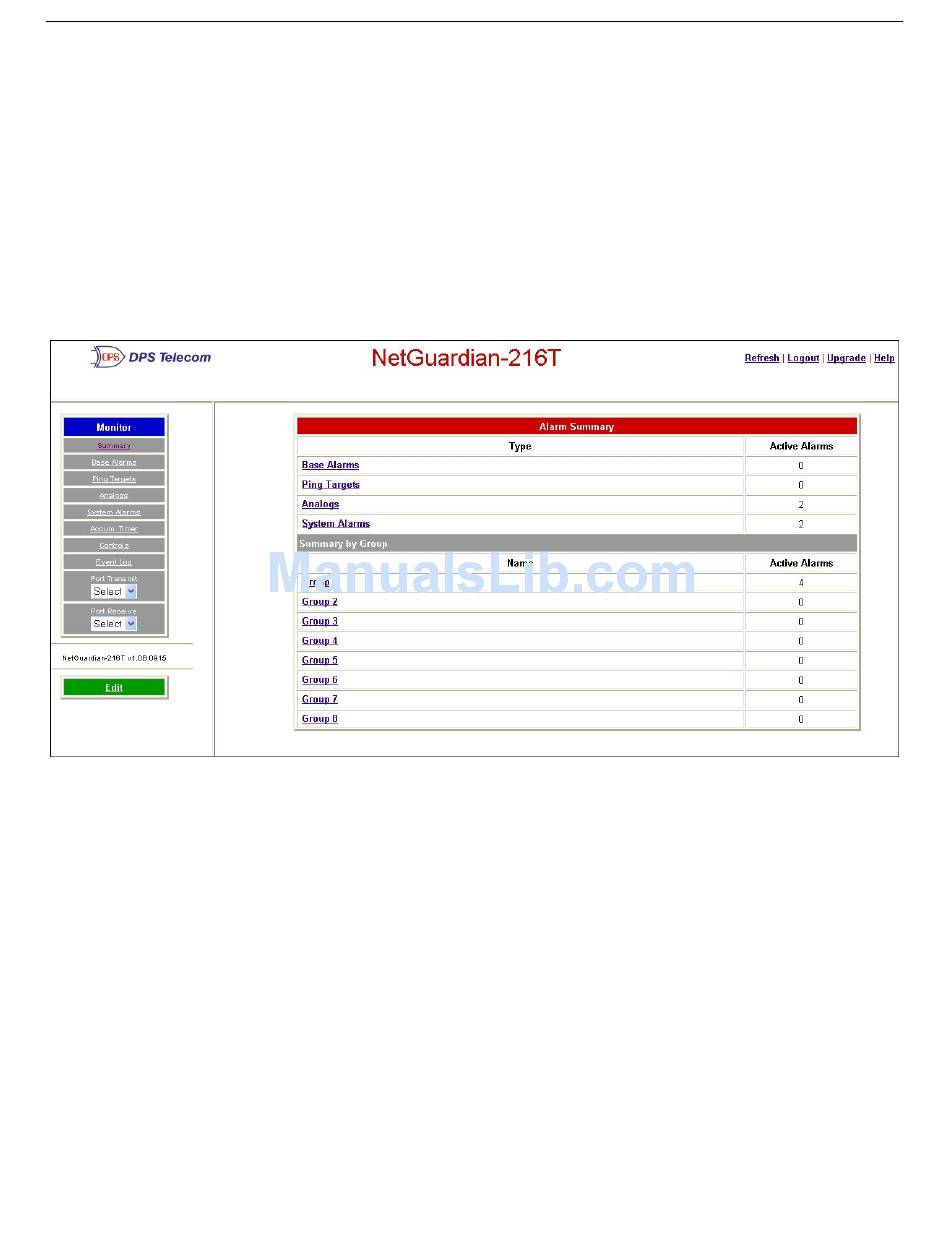

Fig. 3.1.1. The Alarm Summary display can be accessed by selecting either the Monitor or the Summary link
Clicking on the Monitor or Summary buttons shows the Alarm Summary display. The Summary screen
gives you a quick indication of any alarms that have been triggered in the NetGuardian's base alarms, ping
targets, analogs, system alarms, and any NetGuardian discrete expansions.
38
