Setting Up The SNMP

Use the following steps to define your NetGuardian system information:
1. From the Edit menu choose SNMP (see Figure 2.4.4.1).
2. Enter the community name for SNMP GET requests.
3. Enter the community name for SNMP SET requests.
4. Enter the community name for SNMP TRAPs.
5. Define the IP address of your trap manager. Set to 255.255.255.255 if not using.
6. Define the UDP port set by the SNMP manager to receive traps; usually 162.
7. Select the Format in which you want your traps to be sent to your manager in.
8. Click Submit to save your system information settings.
G)et Community name for SNMP requests.
S)et Community name for SNMP SET requests.
T)rap Community name for SNMP TRAP requests.
Field
IPA Defines the SNMP trap manager's IP address. Set to 255.255.255.255 if not using.
The SNMP port is the UDP port set by the SNMP manager to receive traps, usually set to
Port
162.
Format Select between SNMPv1 TRAP, SNMP v2c TRAP, and SNMP v2c INFORM.
Alarm Page
Base Alarms
Ping Alarms
Table 2.4.3.C. Specific link extensions

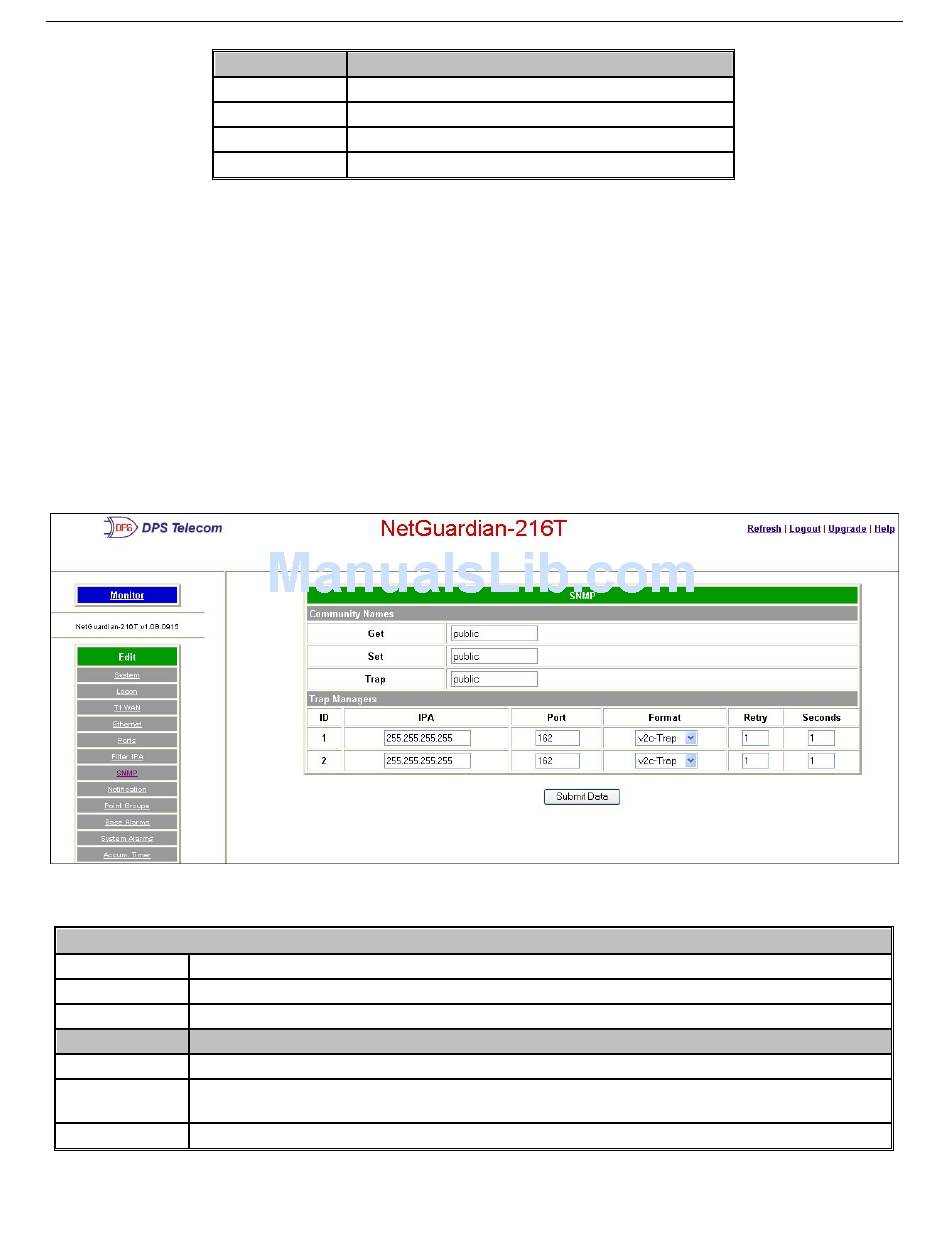

Fig. 2.4.4.1. SNMP Menu
Table 2.4.4.D. Fields in the Edit > SNMP settings
Base URL web page link*
Base1.html - Base32.html
Ping1.html - Ping32.html
System1.html - System64.html
Analog1.html - Analog8.html
Communities
Description
