the State column, the description defined in Edit menu > Point Groups will appear in red if an alarm has been
activated. The description defined in Edit menu > Point Groups will be displayed in green when the alarm
condition is not present.
3.4

Monitoring Analogs

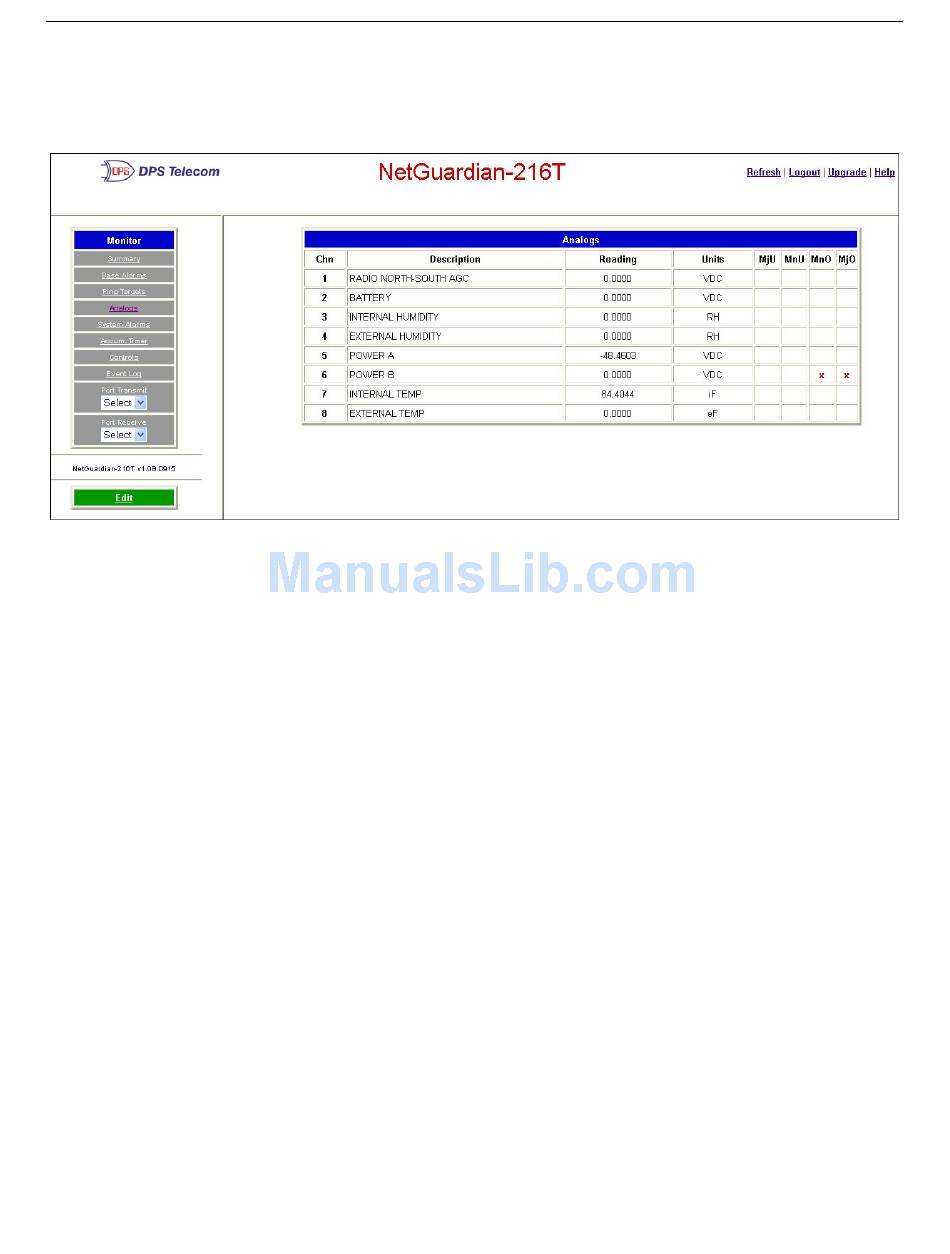

Fig. 3.4.1. View the status of the Analogs from the Monitor > Analogs screen
This selection provides the status of the system's analogs by indicating if an alarm has been triggered. The
Monitor menu > Analogs screen provides a description of each analog channel, the current reading, the units
being read, and alarm conditions (major under, minor under, major over, minor over) according to your analog
settings.
