39
3.2

Monitoring Base Alarms

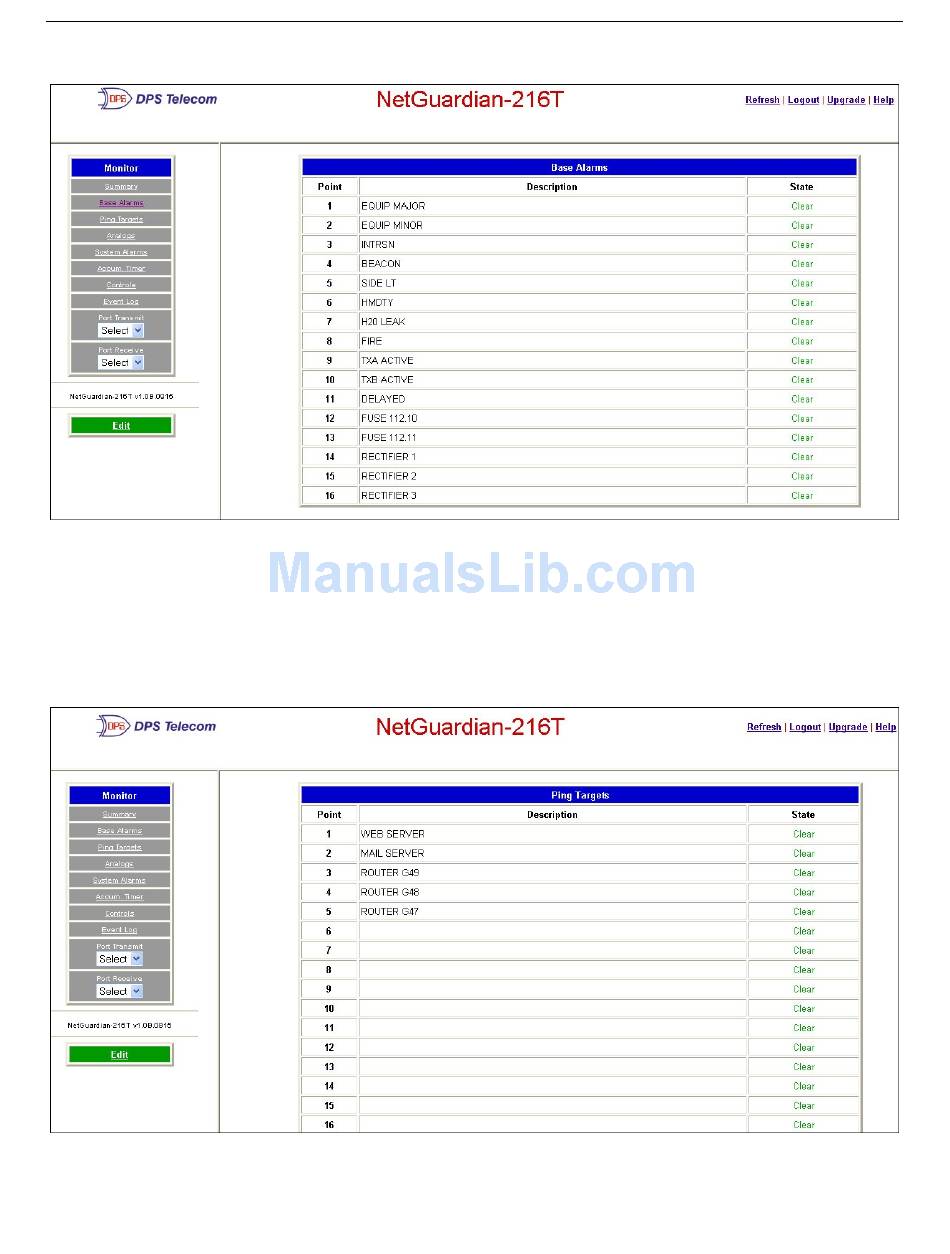

Fig. 3.2.1. View the status of the Base Alarms from the Monitor > Base Alarms screen
This selection provides the status of the system's base alarms by indicating if an alarm has been triggered. Under
the State column, the description defined in Edit menu > Point Groups will appear in red if an alarm has been
activated. The description defined in Edit menu > Point Groups will be displayed in green when the alarm
condition is not present.
3.3

Monitoring Ping Targets

Fig. 3.3.1. View the status of the Ping Targets from the Monitor > Ping Targets screen
This selection provides the status of the system's ping targets by indicating if an alarm has been triggered. Under
