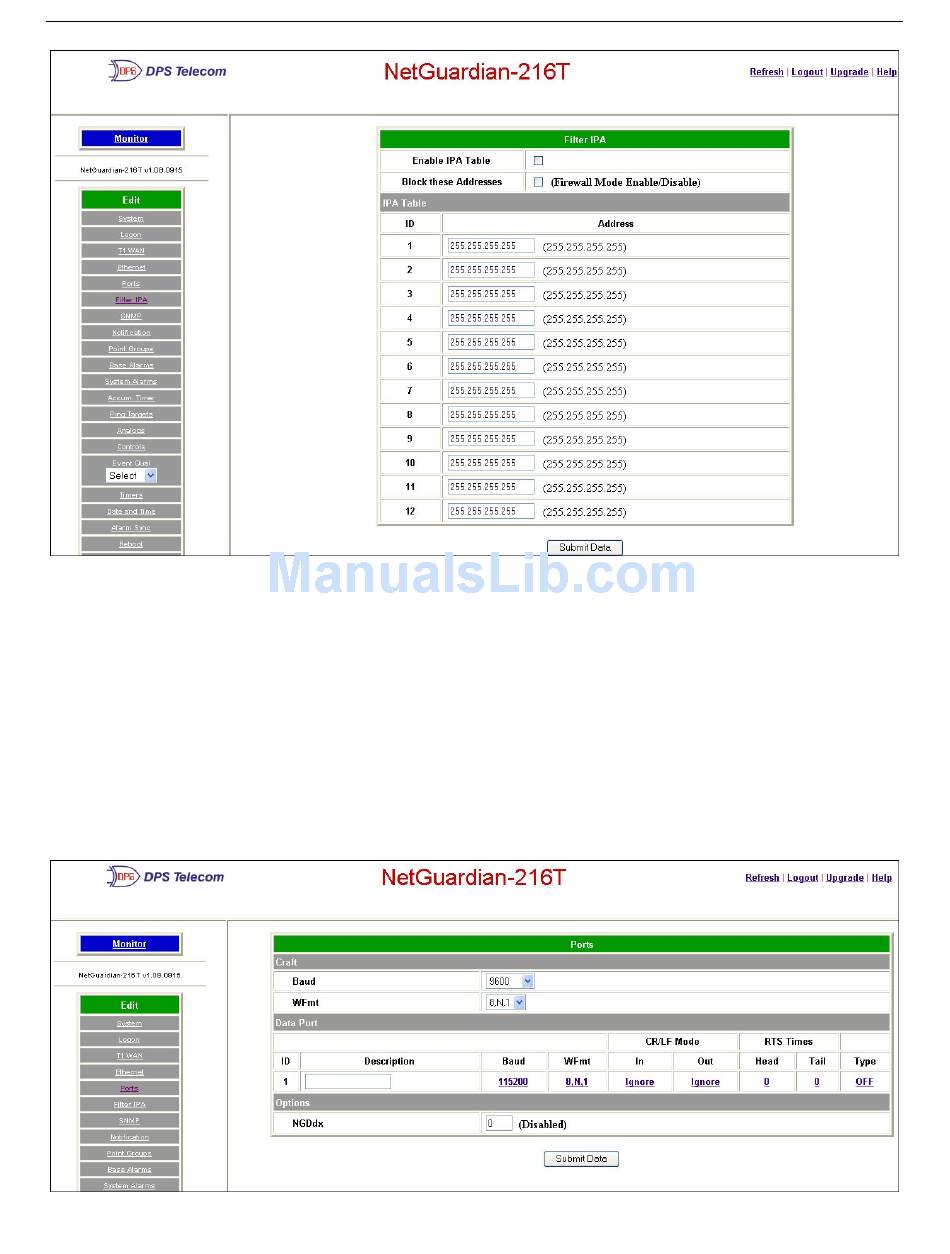

Fig. 2.4.5.2. Select Filter IPA from the Edit menu to configure your Filter IPA table
2.4.6

Changing Craft Port Communication Settings

Use the following steps to change the craft port communication settings:
From the Edit menu > Ports screen, scroll down to the Craft section (see Figure 2.4.6).
1.
2. You can set the baud rate for the craft port to 300, 1200, 2400, 9600, 19200, 38400, 57600, 115200. (Default
Baud is 9600)
3. Under the Wfmt (word format) field, select the appropriate data bits, parity, and stop bits setting to match
your terminal emulation software or device connected to the NetGuardian craft port. (Default designation is
8,N,1)
4. Click Submit Data to save the craft port settings.
14
