3.6
Operating Controls
Use the following rules to operate controls:
1.
Select Controls from the Monitor menu.
2. Under the State field, choose a command (Opr - operate, Rls - release, or Mom - momentary).
3. Click Submit Data to issue the control.
!
Hot Tip!
The control relay's normal state - open or closed - is determined by a PCB jumper. Operating a control thus
changes the normal state of the relay (energizes it) until it is released (de-energized). The momentary command
energizes the relay for approximately one second before it is released again.
3.7
Event Logging

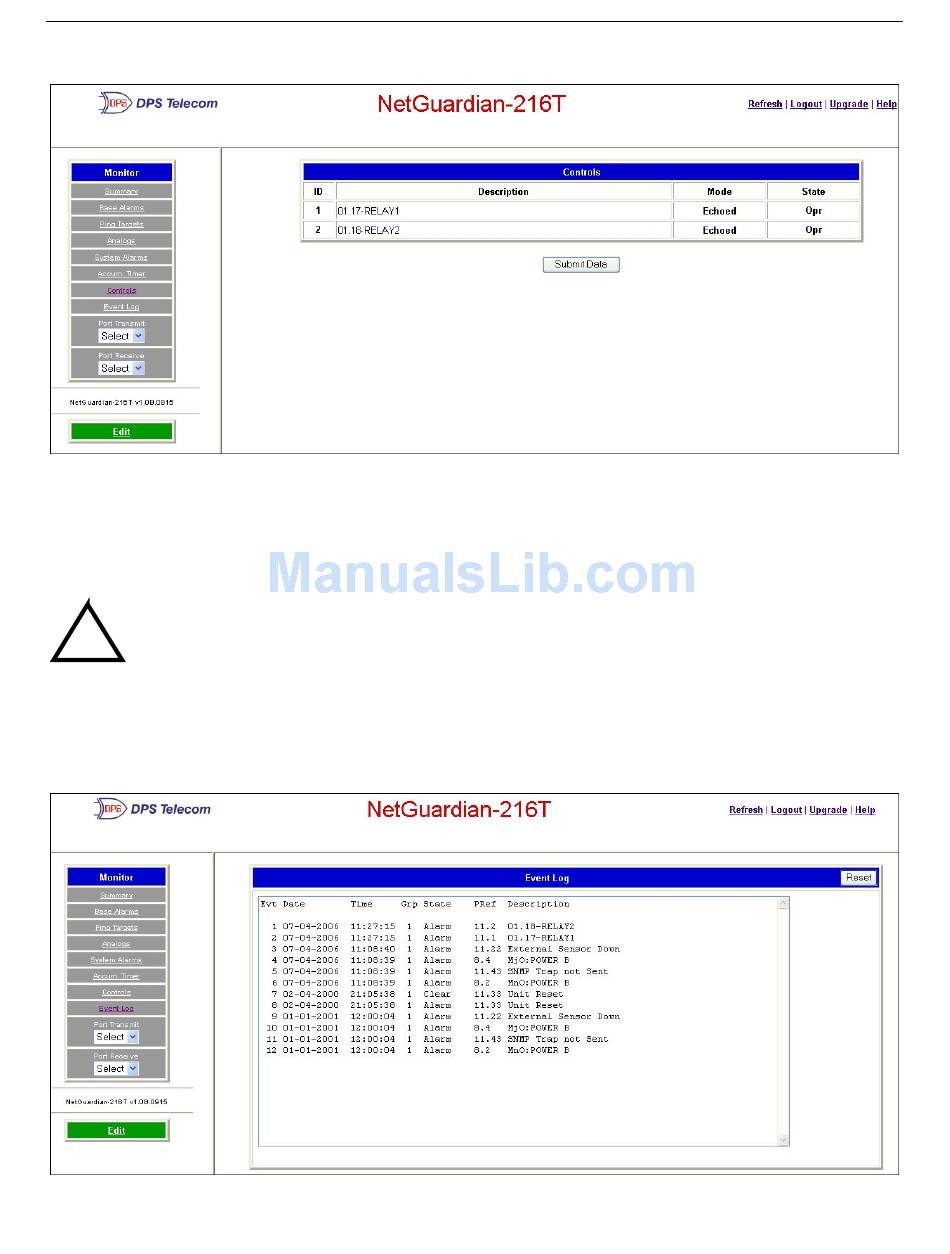

Fig. 3.7.1. Monitor the last 100 events recorded by the NetGuardian in the Event Log window
Fig. 3.6.1. Issue controls from the Monitor > Controls screen
42
