Pr 11.27 = Av.pr; Pr 11.27 = Ai.pr - Control Techniques Commander SK Advanced User's Manual

Menu 11 Introduction Parameter x.00

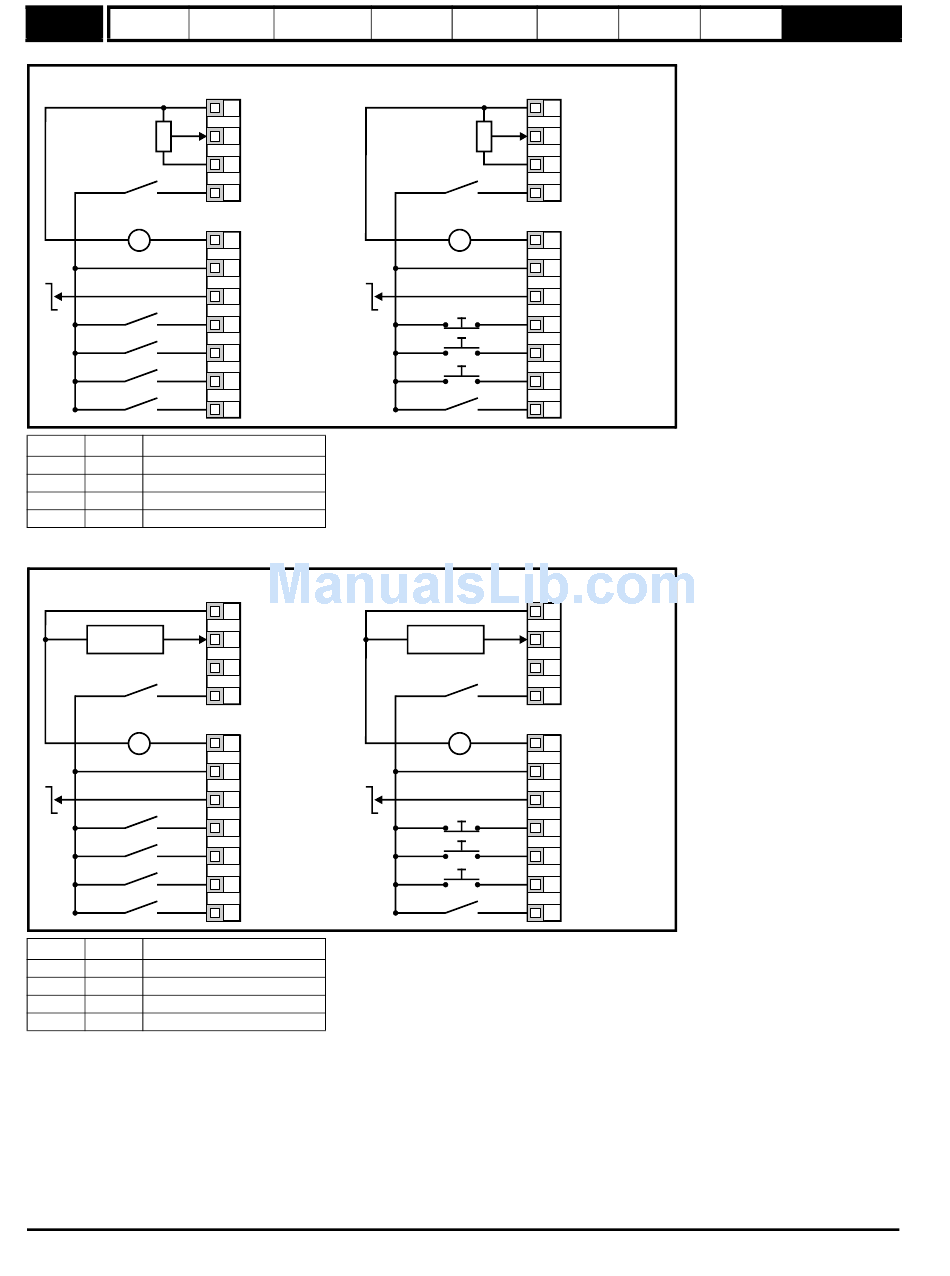

Figure 9-27 Pr 11.27 = AV.Pr
EUR
10k
(2kmin)
_
+
V
+24V
0V
T4 B7 Reference selected
0 0
0 1
1 0
1 1
Figure 9-28 Pr 11.27 = AI.Pr
EUR
Remote speed
reference input
_
+
V
+24V
0V
T4 B7 Reference selected
0 0
0 1
1 0
1 1
118
Parameter Keypad and
description format
USA
T1 0V
Local voltage speed
T2
reference input (A1)
T3 +10V reference output
T4 Reference select
Analog output
B1
(motor speed)
B2 +24V output
+24V
Digital output
B3
(zero speed)
0V
B4 Drive Enable/Reset
B5 Run Forward
B6 Run Reverse
B7 Reference select
A1
Preset 2
Preset 3
Preset 4
USA
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
T4 Reference select
Analog output
B1
(motor speed)
B2 +24V output
+24V
Digital output
B3
(zero speed)
0V
B4 Drive Enable/Reset
B5 Run Forward
B6 Run Reverse
B7 Reference select
A1
Preset 2
Preset 3
Preset 4
